1691829 - Simplicity Snow Thrower Hitch for LT Series 36" & 42" Snowthrower Hitch - Hitch Group Parts Diagram

Snow Thrower Hitch for LT Series

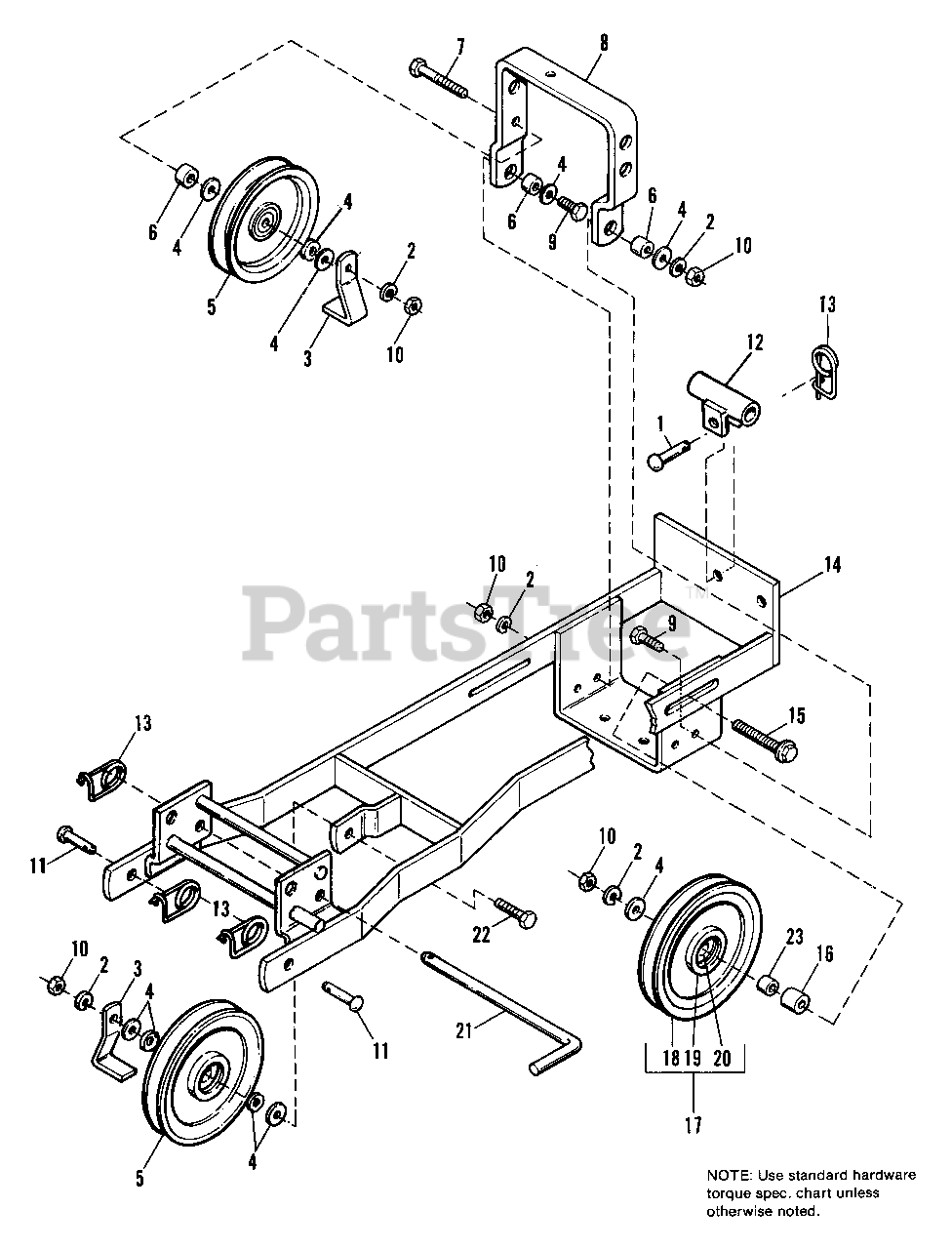

36" & 42" Snowthrower Hitch - Hitch Group Parts Diagram

  • Title

1

Simplicity 2105249SM

PIN, Clevis

$17.99

$

Usually ships in 2-12 days

0

2

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 5

0

3

Simplicity 2162115SM

BELT STOP
(Superseded to 2162115ASM)

$12.99

$

Usually ships in 2-12 days

0

4

Simplicity 1924940SM

WASHER, Plain, 5/16
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 2171247SM

PULLEY

$53.99

$

In Stock, Qty 13

0

6

Simplicity 2158227SM

SPACER

$34.99

$

Usually ships in 2-12 days

0

7

Simplicity 1922130SM

CAPSCREW, 3/8-16 x 2-1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 5

0

8

Simplicity 1704731ASM

PIVOT, Bracket

$38.99

$

Usually ships in 2-12 days

0

9

Simplicity 1920415SM

CAPSCREW, 3/8-16 x 1-1/4
(Superseded to 5025013X10SM)

$4.49

$

In Stock, only 4 left!

0

10

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 9

0

11

Simplicity 2156306SM

PIN, Clevis, 3/8

$7.99

$

In Stock, only 4 left!

0

12

Simplicity 1707455ASM

SUPPORT ARM., Rear

$136.99

$

Usually ships in 2-12 days

0

13

Simplicity 2176012SM

CLIP, Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 19

0

14

Simplicity 1704703ASM

PUSHBAR ASSY.

$

$

Not available

15

Simplicity 1960244SM

SCREW, Whizlock, 3/8-16 x 2-3/4
(Superseded to 704037)

$6.49

$

Usually ships in 2-12 days

0

16

Simplicity 1667812SM

SPACER

$5.99

$

In Stock, Qty 20+

0

17

Simplicity 1666287ASM

PULLEY ASSY., w/Bearing (Incl. Ref. Nos. 18, 19, 20)

$96.99

$

Usually ships in 2-12 days

0

18

PULLEY (Order Ref. No. 17)

$

$

Not available

19

Simplicity 2827695SM

RING, Retaining

$

$

Not available

20

Simplicity 1705897SM

BEARING

$8.49

$

In Stock, Qty 20+

0

21

Simplicity 1715758SM

ROD, Latch

$

$

Not available

22

Simplicity 1921971SM

CAPSCREW, 3/8-16 x 1-3/4
(Superseded to 5025013X14SM)

$4.49

$

In Stock, Qty 5

0

23

Simplicity 1666294SM

SPACER

$5.49

$

In Stock, Qty 13

0
