1691832 - Simplicity Lift Lever Kit for Snow Thrower & Dozer Blade Lift Lever Group Parts Diagram

Lift Lever Kit for Snow Thrower & Dozer Blade

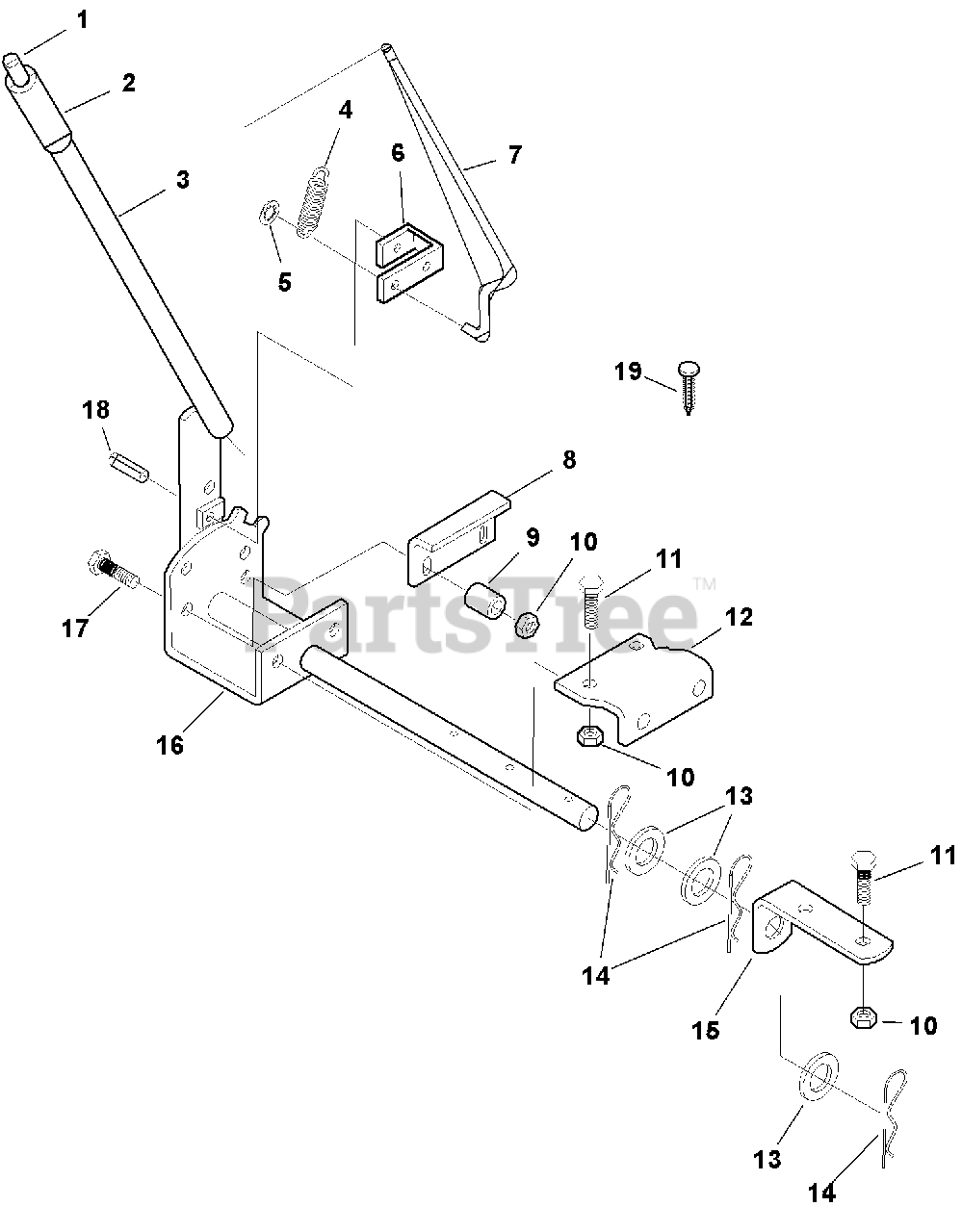

Lift Lever Group Parts Diagram

  • Title

1

Simplicity 1650157SM

BUTTON

$7.49

$

In Stock, only 1 left!

0

2

Simplicity 1713995SM

GRIP

$12.99

$

In Stock, only 1 left!

0

3

Simplicity 1722121

LEVER ASSEMBLY
(Superseded to 1722121ASM)

$

$

Not available

4

Simplicity 1667286SM

SPRING

$9.99

$

Usually ships in 2-12 days

0

5

Simplicity 1934953SM

PUSH NUT, 5/16

$3.49

$

In Stock, only 1 left!

0

6

Simplicity 1657648SM

LATCH, Lift Lever

$

$

Not available

7

Simplicity 1667290SM

ROD

$47.99

$

Usually ships in 2-12 days

0

8

Simplicity 1704715SM

BRACKET
(Superseded to 1704715ASM)

$25.99

$

Usually ships in 2-12 days

0

9

Simplicity 1704716SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

10

Simplicity 1919438SM

LOCKNUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

11

Simplicity 1923325SM

CAPSCREW, Hex Head, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 20+

0

12

Simplicity 1704713ASM

BRACKET

$91.99

$

Usually ships in 2-12 days

0

13

Simplicity 1911386SM

WASHER, 3/4
(Superseded to 703992)

$4.49

$

Usually ships in 2-12 days

0

14

Simplicity 1960033SM

HAIR PIN

$3.49

$

In Stock, Qty 5

0

15

Simplicity 1704712ASM

BRACKET

$12.99

$

Usually ships in 2-12 days

0

16

Simplicity 1665591ASM

QUADRANT, Lift Lever

$

$

Not available

17

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 12

0

18

Simplicity 1927609SM

ROLL PIN, 3/8 x 1

$3.49

$

In Stock, Qty 6

0

19

Simplicity 1704351SM

FASTENER, Panel

$4.99

$

Usually ships in 2-12 days

0
