1691846 - Simplicity Wheel Steer Rear-Engine Riding Mower, 20hp Mower Support Group Parts Diagram

Wheel Steer Rear-Engine Riding Mower, 20hp

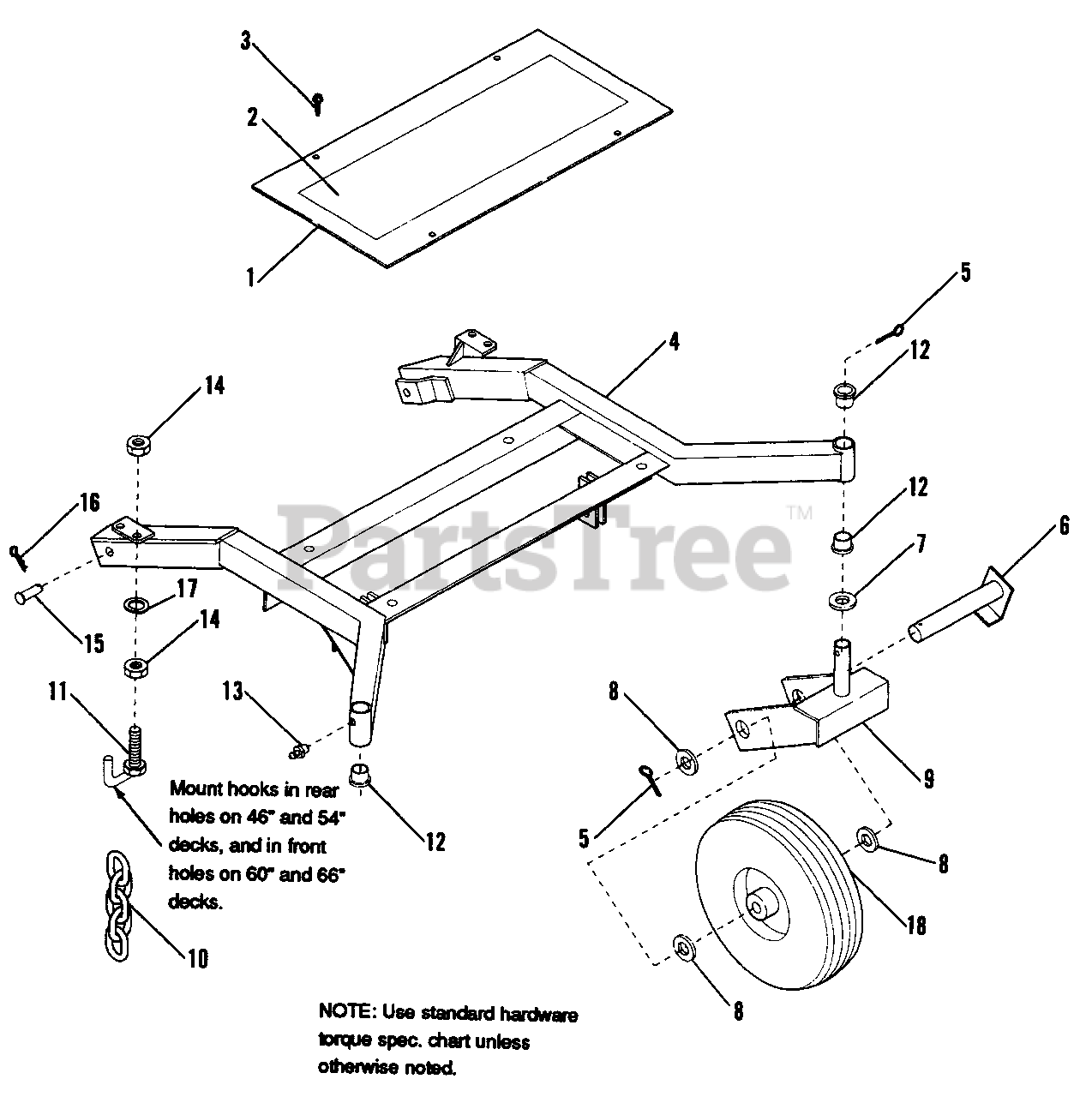

Mower Support Group Parts Diagram

  • Title

1

Simplicity 1712471

COVER, 46" and 54" (1691847, 1691848)

$

$

Not available

1

Simplicity 1712586

COVER, 60" and 66" (1691849, 1691850)

$

$

Not available

2

Simplicity 1712472

PAD, Non-Skid

$

$

Not available

3

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 11

0

4

Simplicity 1712895

MOWER FRAME ASSY. 46" (1691847)

$

$

Not available

4

Simplicity 1712529

MOWER FRAME ASSY. 54" (1691848)

$

$

Not available

4

Simplicity 1712930

MOWER FRAME ASSY. 60" (1691849)

$

$

Not available

4

Simplicity 1712578

MOWER FRAME ASSY. 66" (1691850)

$

$

Not available

5

Simplicity 1918452SM

COTTER PIN
(Superseded to 703795)

$5.99

$

Usually ships in 2-12 days

0

6

Simplicity 1711989

AXLE ASSY.

$

$

Not available

7

Simplicity 2860181

WASHER, Plain

$

$

Not available

8

Simplicity 1960114SM

WASHER, Plain
(Superseded to 703151)

$3.49

$

In Stock, Qty 16

0

9

Simplicity 1711985

CASTER ASSY.

$

$

Not available

10

Simplicity 1711696

CHAIN, Lift

$

$

Not available

11

Simplicity 1711698SM

HOOK ASSY.

$33.99

$

In Stock, only 1 left!

0

12

Simplicity 2156316SM

BEARING, Spindle

$11.99

$

In Stock, Qty 16

0

13

Simplicity 2821133SM

FITTING, Grease (Press Fit)
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

14

Simplicity 1916951SM

NUT, Hex 1/2-13
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

15

Simplicity 1960064SM

CLEVIS PIN
(Superseded to 7012751YP)

$

$

Not available

16

Simplicity 1960098SM

COTTER HAIRPIN
(Superseded to 1960033SM)

$3.49

$

In Stock, only 3 left!

0

17

Simplicity 1916966SM

LOCKWASHER, Spring 1/2
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 1711991

TIRE ASSY. 4.10/3.50 x 4

$

$

Not available
