1691850 - Simplicity 66" Mower Deck Mower Drive Group - 60" & 66" Parts Diagram

66" Mower Deck

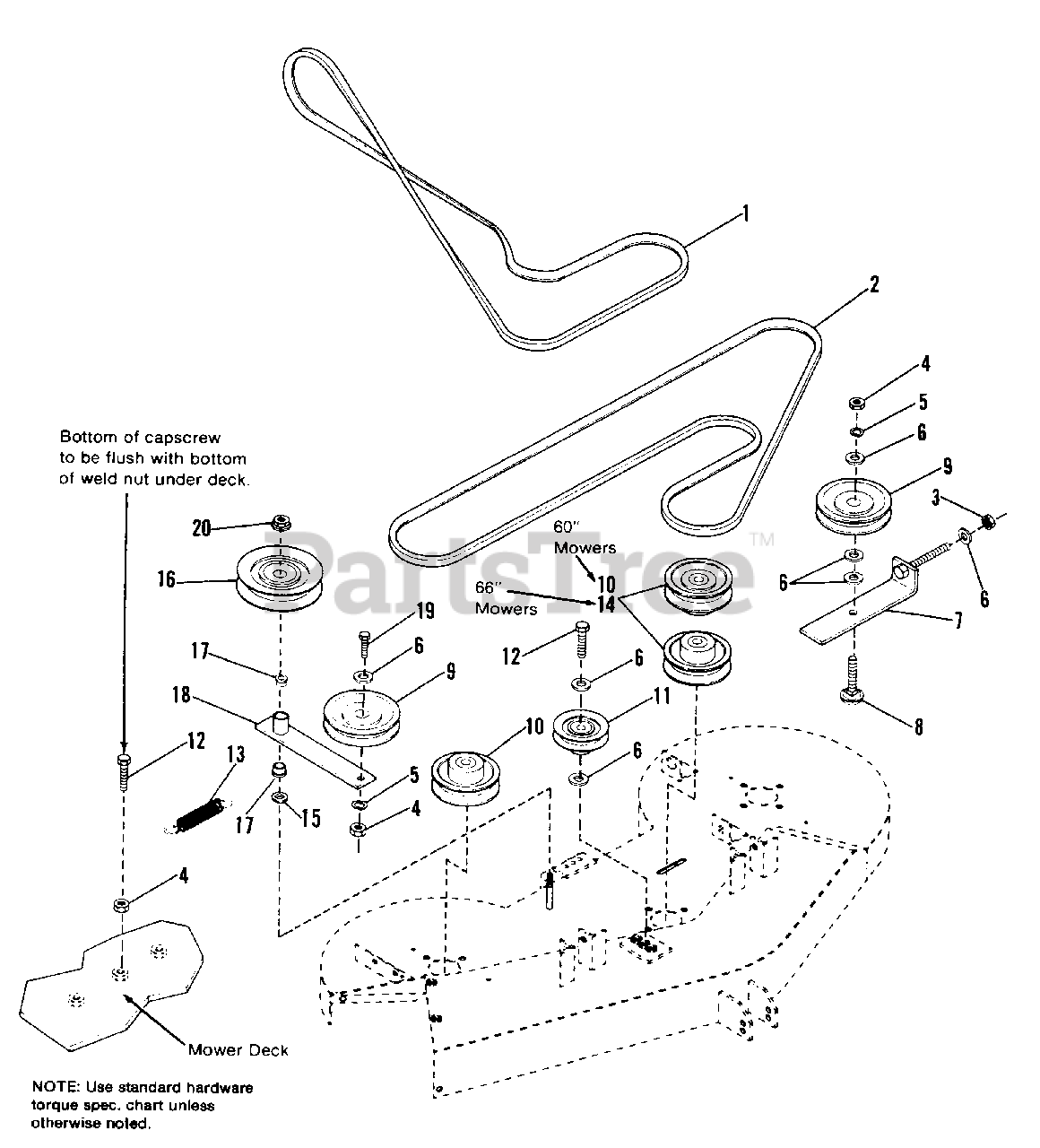

Mower Drive Group - 60" & 66" Parts Diagram

  • Title

1

Simplicity 1712595SM

V-BELT, Mower

$130.99

$

In Stock, only 1 left!

0

2

Simplicity 1712937SM

V-BELT, Mower (60" Mower)

$39.99

$

Usually ships in 2-12 days

0

2

Simplicity 1712596SM

V-BELT, Mower (66" Mower)

$95.99

$

Usually ships in 2-12 days

0

3

Simplicity 1919439SM

LOCKNUT, Fiber, 3/8-16
(Superseded to 703117)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 11

0

5

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

6

Simplicity 1924940SM

WASHER, Plain
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 1711774

DRAW BRACKET ASSY.

$

$

Not available

8

Simplicity 1960315SM

CARRIAGE BOLT, 3/8-16 x 2

$6.99

$

In Stock, Qty 10

0

9

Simplicity 1711775SM

PULLEY, Idler, Backside, 4" dia.

$46.99

$

Usually ships in 2-12 days

0

10

Simplicity 1711141SM

V-PULLEY, Drive (60" Mower) V-PULLEY, Drive (66" Mower)

$

$

Not available

11

Simplicity 1710545SM

V-PULLEY, Idler, 4" dia.

$43.99

$

Usually ships in 2-12 days

0

12

Simplicity 1921971SM

CAPSCREW, Hex, 3/8-16 x 1-3/4
(Superseded to 5025013X14SM)

$4.49

$

In Stock, Qty 17

0

13

Simplicity 2154369SM

SPRING, Extension

$18.99

$

In Stock, only 3 left!

0

14

Simplicity 1711167

V-PULLEY, Drive (66" Mower only)

$

$

Not available

15

Simplicity 1960027SM

WASHER, Plain
(Superseded to 703128)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1713038SM

V-PULLEY, Idler

$81.99

$

Usually ships in 2-12 days

0

17

Simplicity 2118132SM

BEARING, Nylon, Flanged

$

$

Not available

18

Simplicity 1712601

IDLER ARM ASSY.

$

$

Not available

19

Simplicity 1921972SM

CAPSCREW, Hex, 3/8-16 x 2-1/2
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

20

Simplicity 1930645SM

NUT, Lock, Hex, Flanged, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0
