1691853 - Simplicity 30 Gallon Catcher 30 Gallon Catcher Parts Diagram

30 Gallon Catcher

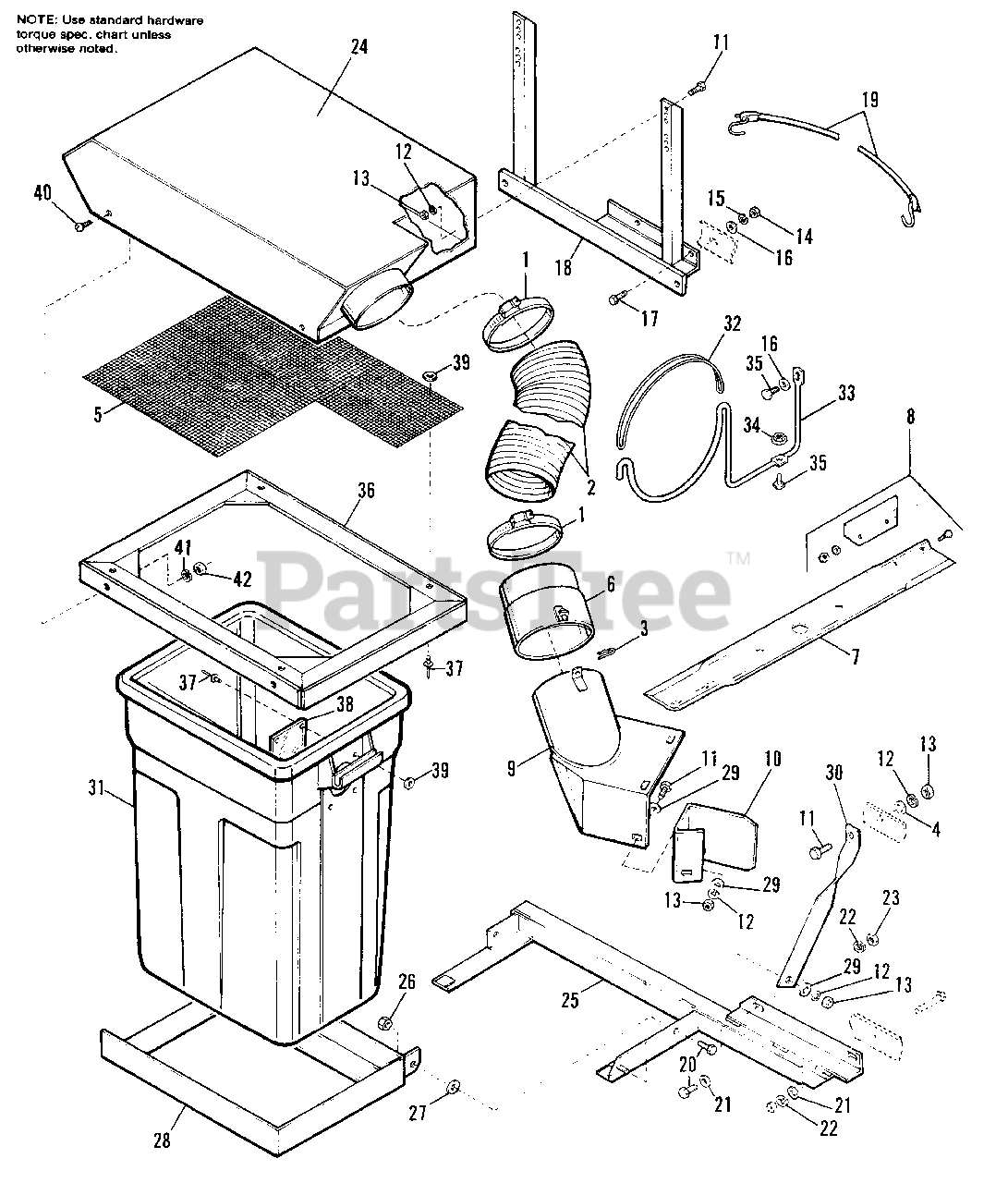

30 Gallon Catcher Parts Diagram

  • Title

1

Simplicity 1679896SM

CLAMP, Hose

$11.99

$

In Stock, only 1 left!

0

2

Simplicity 1669967SM

HOSE, Blower, 41"

$256.99

$

Usually ships in 2-12 days

0

3

Simplicity 1918196SM

HAIRPIN, Cotter
(Superseded to 5025210YP)

$3.99

$

In Stock, only 3 left!

0

4

Simplicity 1960044SM

WASHER, Plain

$4.49

$

In Stock, Qty 16

0

5

Simplicity 1711952

SCREEN

$

$

Not available

6

Simplicity 1712874

TUBE ASSY., Adapter

$

$

Not available

7

Simplicity 1705275

BLADE, Mower
(Superseded to 1705275ASM)

$

$

Not available

8

Simplicity 1712446

AIR LIFT KIT, Mower Blade

$

$

Not available

9

Simplicity 1712879

BOOT ASSY., Discharge

$

$

Not available

10

Simplicity 1712894

ADAPTER BOOT

$

$

Not available

11

Simplicity 1921332SM

CAPSCREW, Hex, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

12

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

15

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 1 left!

0

16

Simplicity 1921319SM

WASHER, Plain
(Superseded to 703332)

$4.49

$

In Stock, Qty 18

0

17

Simplicity 1923341SM

CAPSCREW, Hex, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

18

Simplicity 1712124

BUMPER ASSY.

$

$

Not available

19

Simplicity 1711937

STRAP

$

$

Not available

20

Simplicity 1921210SM

CAPSCREW, Hex, 3/8-16 x 3/4
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

21

Simplicity 1924940SM

WASHER, Plain
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

23

Simplicity 1916950SM

NUT, Hex, 3/8- 16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

24

Simplicity 1711939

HOOD ASSY.

$

$

Not available

25

Simplicity 1712123

FRAME ASSY., Mounting

$

$

Not available

26

Simplicity 1922694SM

NUT, Hex, Fiber Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

27

Simplicity 1924940SM

WASHER, Plain
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

28

Simplicity 1712122

TRAY ASSY.

$

$

Not available

29

Simplicity 1919326SM

WASHER, Plain

$4.49

$

In Stock, Qty 18

0

30

Simplicity 1712201

STRAP, Grass Catcher

$

$

Not available

31

Simplicity 1711938

CONTAINER, 30 Gallon

$

$

Not available

32

Simplicity 1665872SM

STRAP, Tie

$11.99

$

In Stock, only 2 left!

0

33

Simplicity 1705772

ROD, Tube Support

$

$

Not available

34

Simplicity 1960294SM

NUT, Hex Whiz, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

35

Simplicity 1923341SM

CAPSCREW, Hex 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

36

Simplicity 1712121

TOP FRAME ASSY.

$

$

Not available

37

Simplicity 16733202

RIVET, Pop

$

$

Not available

38

Simplicity 1712280

WlNDOW

$

$

Not available

39

Simplicity 19105312

WASHER, Plain, Rivet

$

$

Not available

40

Simplicity 19603922

SCREW, Pan Hd., #10-24 x 1/2

$

$

Not available

41

Simplicity 1917365SM

LOCKWASHER, Spring, #10

$3.99

$

Usually ships in 2-12 days

0

42

Simplicity 1933896SM

NUT, Hex, #10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0
