1691870 - Simplicity Quad Bagger Quad Bagger Parts Diagram

Quad Bagger

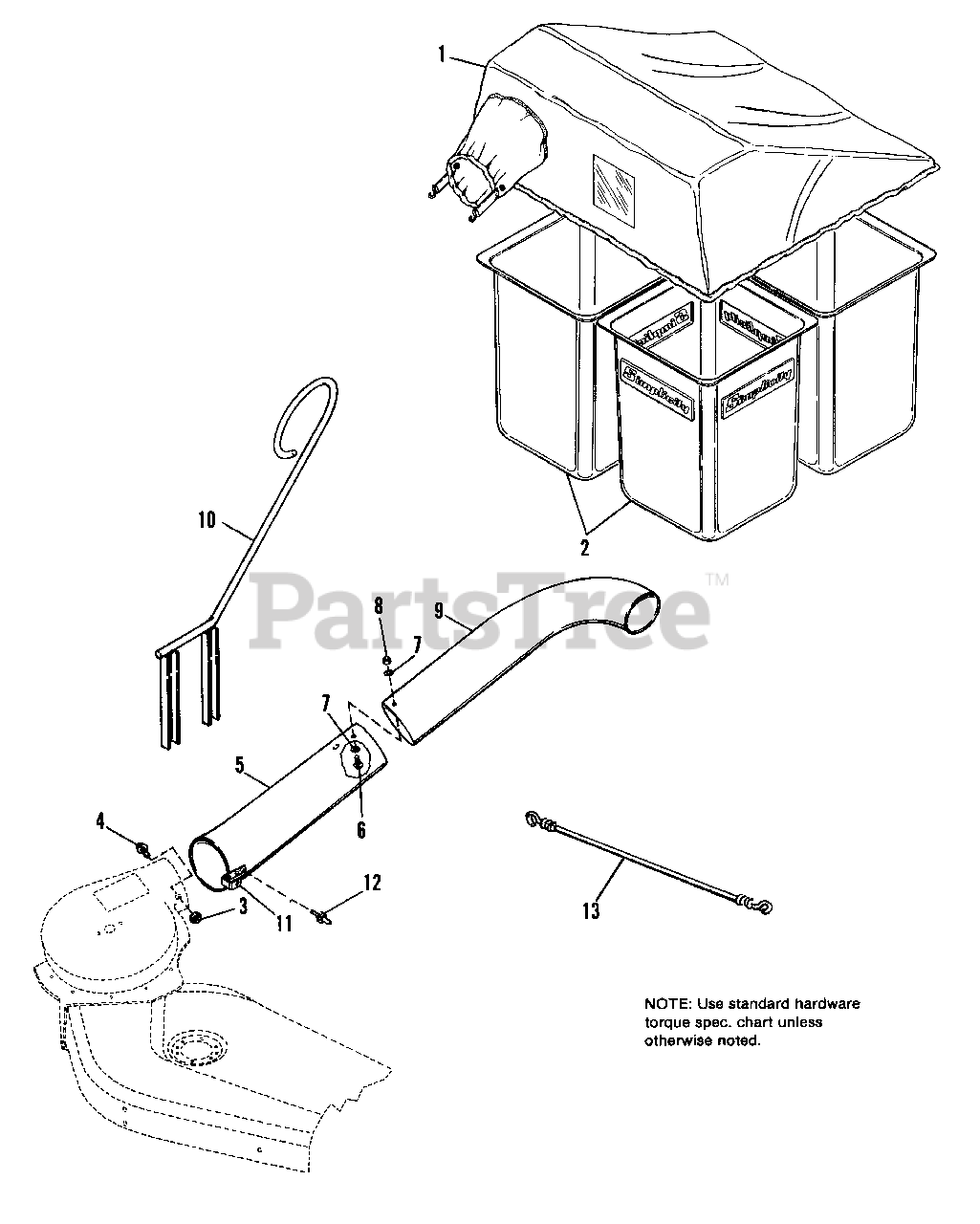

Quad Bagger Parts Diagram

  • Title

1

Simplicity 1705783SM

HOOD

$329.99

$

Usually ships in 2-12 days

0

2

Simplicity 1717619SM

BASKET, Grass Collector (Mfg. No. 1691870 Only)

$153.99

$

Usually ships in 2-12 days

0

2

Simplicity 1717619SM

BASKET, Grass Collector (Mfg. No. 1692031 Only)

$153.99

$

Usually ships in 2-12 days

0

3

Simplicity 1930641SM

NUT, Hex, Flange, Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1960252SM

CARRIAGE BOLT, 1/4-20 x 5/8

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1705112SM

TUBE ASSY., Lower (Incl. Ref. Nos. 11 & 12)

$97.99

$

Usually ships in 2-12 days

0

6

Simplicity 1930531SM

SCREW, Truss Hd., #10-32 x 1/2

$4.49

$

Usually ships in 2-12 days

0

7

Simplicity 1910531SM

WASHER, Plain, #10

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 1928919SM

NUT, Hex, Washer Assy., #10-32

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 1705779SM

TUBE, Upper

$60.99

$

Usually ships in 2-12 days

0

10

Simplicity 1707691SM

SUPPORT, Tube

$60.99

$

Usually ships in 2-12 days

0

11

Simplicity 1705063SM

CLIP, Spring
(Superseded to 1705063YP)

$

$

Not available

12

Simplicity 1673320SM

RIVET, Pop

$4.49

$

In Stock, Qty 8

0

13

Simplicity 1705282SM

CORD

$

$

Not available
