1691964 - Simplicity Wheel Steer Rear-Engine Riding Mower, 16hp Height Adjusting and Roller Group Parts Diagram

Wheel Steer Rear-Engine Riding Mower, 16hp

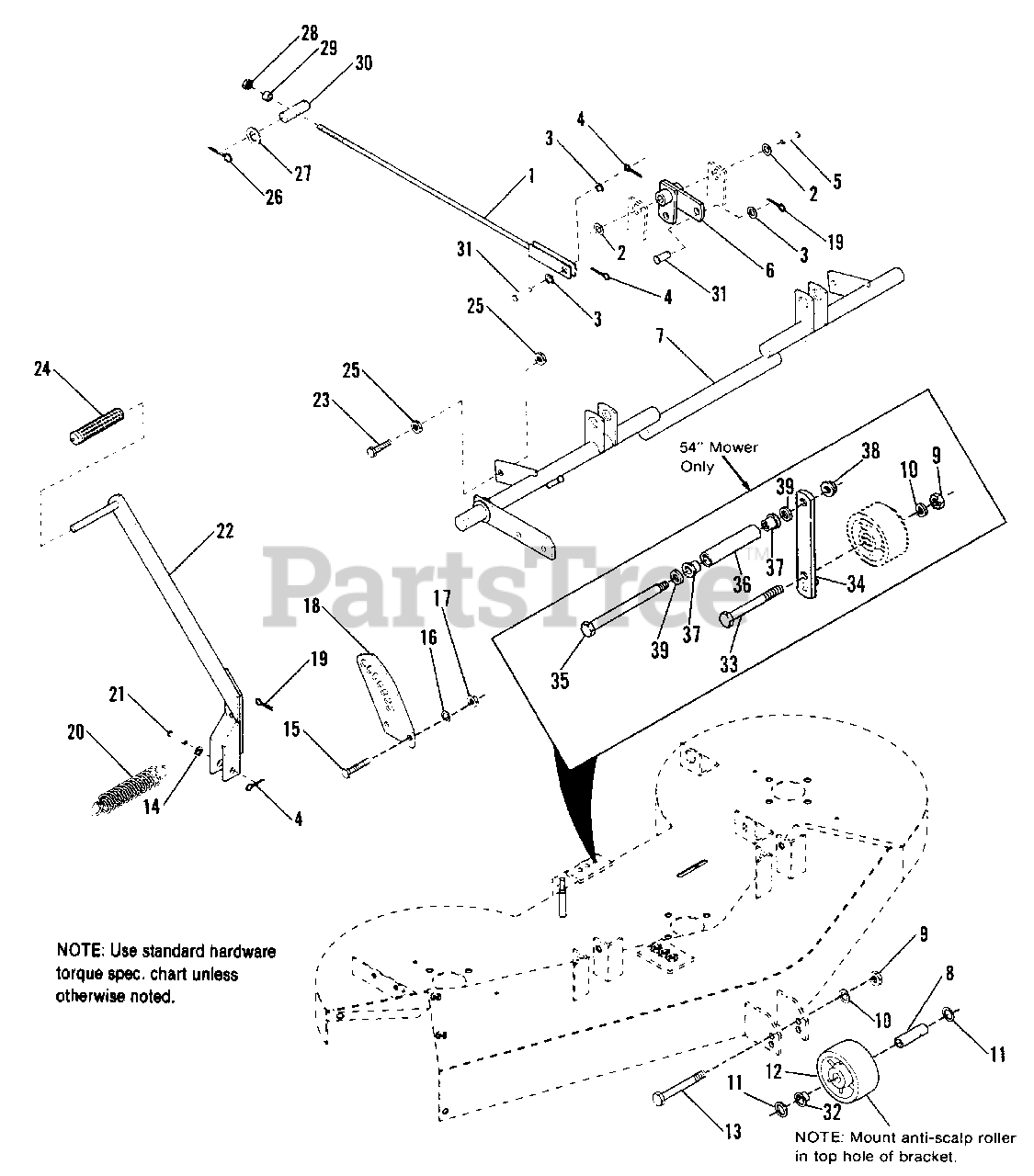

Height Adjusting and Roller Group Parts Diagram

  • Title

1

Simplicity 1712478

ADJUSTING ROD ASSY. (46" Mower)

$

$

Not available

1

Simplicity 1712008

ADJUSTING ROD ASSY. (54", 60" & 66" Mower)

$

$

Not available

2

Simplicity 1960027SM

WASHER, Plain
(Superseded to 703128)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 1960206SM

WASHER, Plain

$3.99

$

In Stock, only 1 left!

0

4

Simplicity 1918451SM

COTTER PIN

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1603602SM

CLEVIS PIN, 1/2 x 2-3/4

$9.99

$

Usually ships in 2-12 days

0

6

Simplicity 1706225

HANGER ASSY.

$

$

Not available

7

Simplicity 1705745

SHAFT ASSY., Lift (46" Mower)

$

$

Not available

7

Simplicity 1705715

SHAFT ASSY., Lift (54" Mower)

$

$

Not available

7

Simplicity 1705741

SHAFT ASSY., Lift (60" Mower)

$

$

Not available

7

Simplicity 1705743

SHAFT ASSY., Lift (66" Mower)

$

$

Not available

8

Simplicity 1712547SM

SPACER (46" Mower)

$36.99

$

Usually ships in 2-12 days

0

8

Simplicity 1712547SM

SPACER (46", 54" & 60" Mower)

$36.99

$

Usually ships in 2-12 days

0

8

Simplicity 1712547SM

SPACER (46", 54", 60" & 66" Mower)

$36.99

$

Usually ships in 2-12 days

0

9

Simplicity 1916951SM

NUT, Hex, 1/2-13 (46" Mower)
(Superseded to 703340)

$8.49

$

In Stock, only 1 left!

0

9

Simplicity 1916951SM

NUT, Hex, 1/2-13 (46", 54" & 60" Mower)
(Superseded to 703340)

$8.49

$

In Stock, only 1 left!

0

9

Simplicity 1916951SM

NUT, Hex, 1/2-13 (46", 54", 60" & 66" Mower)
(Superseded to 703340)

$8.49

$

In Stock, only 1 left!

0

10

Simplicity 1916966SM

LOCKWASHER, Spring, 1/2 (46" Mower)
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1916966SM

LOCKWASHER, Spring, 1/2 (46", 54" & 60" Mower)
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1916966SM

LOCKWASHER, Spring, 1/2 (46", 54", 60" & 66" Mower)
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 1960114SM

WASHER, Plain (46" Mower)
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1960114SM

WASHER, Plain (46", 54" & 60" Mower)
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1960114SM

WASHER, Plain (46", 54", 60" & 66" Mower)
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1685440SM

WHEEL, Gauge, 4" Dia. (46" Mower) (Incl. Ref. No. 32)

$

$

Not available

12

Simplicity 1685440SM

WHEEL, Gauge, 4" Dia. (46", 54" & 60" Mower) (Incl. Ref. No. 32)

$

$

Not available

12

Simplicity 1685440SM

WHEEL, Gauge, 4" Dia. (46", 54", 60" & 66" Mower) (Incl. Ref. 32)

$

$

Not available

13

Simplicity 1960286SM

CAPSCREW, Hex, 1/2-13 x 3-1/2 (46" Mower)

$

$

Not available

13

Simplicity 1960286SM

CAPSCREW, Hex, 1/2-13 x 3-1/2 (46", 54" & 60" Mower)

$

$

Not available

13

Simplicity 1960286SM

CAPSCREW, Hex, 1/2-13 x 3-1/2 (46", 54", 60" & 66" Mower)

$

$

Not available

14

Simplicity 1960206SM

WASHER, Plain

$3.99

$

In Stock, only 1 left!

0

15

Simplicity 1920415SM

CAPSCREW, Hex, 3/8-16 x 1-1/4
(Superseded to 5025013X10SM)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1711718

PLATE, Height Adjusting

$

$

Not available

19

Simplicity 1918196SM

COTTER HAIRPIN
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 1710025SM

SPRING, Extension

$30.99

$

Usually ships in 2-12 days

0

21

Simplicity 1722819SM

CLEVIS PIN, 1/2 x 2

$6.99

$

In Stock, Qty 20+

0

22

Simplicity 1712010

HANDLE ASSY., Left

$

$

Not available

23

Simplicity 1921969SM

CAPSCREW, Hex, 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, Qty 20+

0

24

Simplicity 1710434SM

GRIP, Handle

$

$

Not available

25

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 1918452SM

COTTER PIN
(Superseded to 703795)

$6.49

$

Usually ships in 2-12 days

0

27

Simplicity 2860181

WASHER, Plain

$

$

Not available

28

Simplicity 1930645SM

NUT, Fiber Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

29

Simplicity 1667133

SPACER (46" Mower)

$

$

Not available

29

Simplicity 1710554

SPACER (54", 60", 66" Mowers)

$

$

Not available

30

Simplicity 1710475

TRUNNION

$

$

Not available

31

Simplicity 2102004SM

CLEVIS PIN, 1/2 x 1-1/4

$9.99

$

In Stock, only 2 left!

0

32

Simplicity 1712827SM

BEARING (46" Mower)

$7.49

$

Usually ships in 2-12 days

0

32

Simplicity 1712827SM

BEARING (46", 54" & 60" Mower)

$7.49

$

Usually ships in 2-12 days

0

32

Simplicity 1712827SM

BEARING (46", 54", 60" & 66" Mower)

$7.49

$

Usually ships in 2-12 days

0

33

Simplicity 1926158SM

CAPSCREW, Hex Hd., 1/2-13 x 4 (54" Mowers only)

$6.99

$

Usually ships in 2-12 days

0

34

Simplicity 1706531

BRACKET, Roller (54" Mower only)

$

$

Not available

35

Simplicity 1706532

BOLT, Shoulder (54" Mower only)

$

$

Not available

36

Simplicity 1706533

TUBE, Pivot (54" Mower only)

$

$

Not available

37

Simplicity 1704505SM

BUSHING, Flanged (54" Mower only)

$

$

Not available

38

Simplicity 1931211SM

NUT, Flange Whizlock, 3/8-16 (54" Mower only)
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

39

Simplicity 1960206SM

WASHER, Plain

$3.99

$

In Stock, only 1 left!

0
