1691978 - Simplicity 36" Tiller Attachment 36" Tiller - Hitch Group Parts Diagram

36" Tiller Attachment

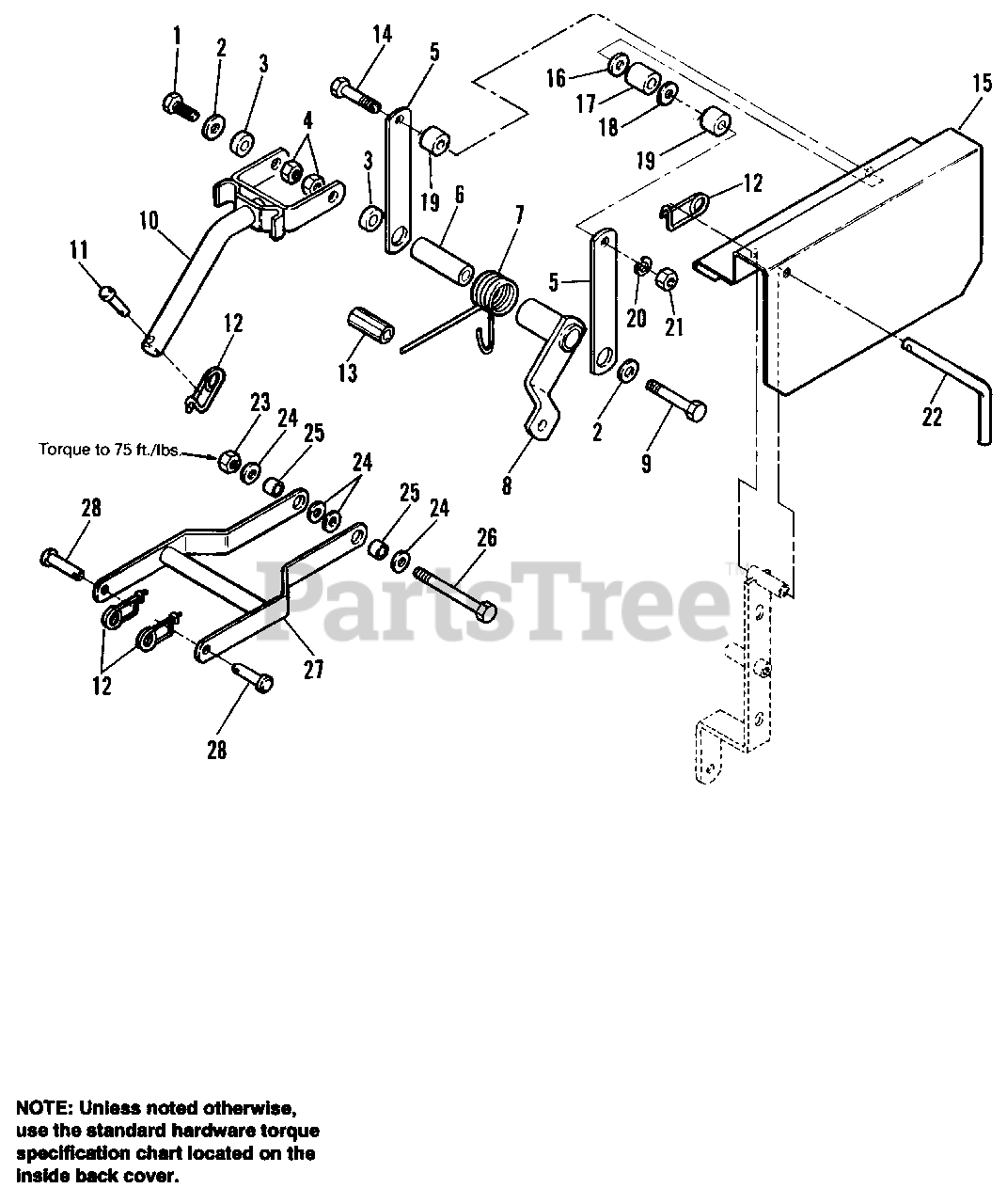

36" Tiller - Hitch Group Parts Diagram

  • Title

1

Simplicity 2823471SM

CAPSCREW, Hex, 7/16-14 x 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 1925125SM

WASHER, Plain, 3/8

$6.49

$

In Stock, only 2 left!

0

3

Simplicity 2105346SM

SPACER

$28.99

$

In Stock, only 1 left!

0

4

Simplicity 1930650SM

LOCKNUT, Flange, 7/16-14

$5.49

$

In Stock, only 2 left!

0

5

Simplicity 2105359ASM

SUPPORT, Rear Belt Guard

$5.49

$

Usually ships in 2-12 days

0

6

Simplicity 2105339ASM

SPACER

$13.99

$

Usually ships in 2-12 days

0

7

Simplicity 1707593SM

SPRING, Torsion

$42.99

$

Usually ships in 2-12 days

0

8

Simplicity 2105295ASM

LEVER ASSY., Clutch

$61.99

$

Usually ships in 2-12 days

0

9

Simplicity 1930585SM

CAPSCREW, Hex Hd., 7/16-14 x 3-1/2

$7.49

$

In Stock, only 1 left!

0

10

Simplicity 1707569ASM

BAR ASSY., Lift

$284.99

$

Usually ships in 2-12 days

0

11

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

12

Simplicity 2176012SM

CLIP, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1707599SM

ANCHOR, Spring

$31.99

$

Usually ships in 2-12 days

0

14

Simplicity 1923141SM

CARRIAGE BOLT, 5/16-18 x 2-3/4
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

15

Simplicity 1707564ASM

GUARD, Belt

$199.99

$

Usually ships in 2-12 days

0

16

Simplicity 2860171SM

WASHER, Nylon

$4.49

$

In Stock, Qty 12

0

17

Simplicity 1666106SM

SPACER
(Superseded to 703121)

$10.99

$

In Stock, only 1 left!

0

18

Simplicity 1919326SM

WASHER

$4.49

$

In Stock, Qty 18

0

19

Simplicity 1704716SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

20

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1657562SM

ROD, Pivot

$7.49

$

In Stock, only 1 left!

0

23

Simplicity 1930644SM

LOCKNUT, Hex, 1/2-13

$3.49

$

In Stock, only 1 left!

0

24

Simplicity 1924361SM

WASHER, Plain, 1/2
(Superseded to 703451)

$4.49

$

Usually ships in 2-12 days

0

25

Simplicity 2105386SM

SPACER

$31.99

$

Usually ships in 2-12 days

0

26

Simplicity 1926159SM

CAPSCREW, Hex, 1/2-13 x 5

$10.99

$

In Stock, Qty 6

0

27

Simplicity 1651844ASM

FRAME ASSY.

$199.99

$

Usually ships in 2-12 days

0

28

Simplicity 2155037SM

PIN

$12.99

$

In Stock, only 1 left!

0
