1692004 - Simplicity 60" Turbo Collection System 60" Turbo Collection System - Cover & Support Group Parts Diagram

60" Turbo Collection System

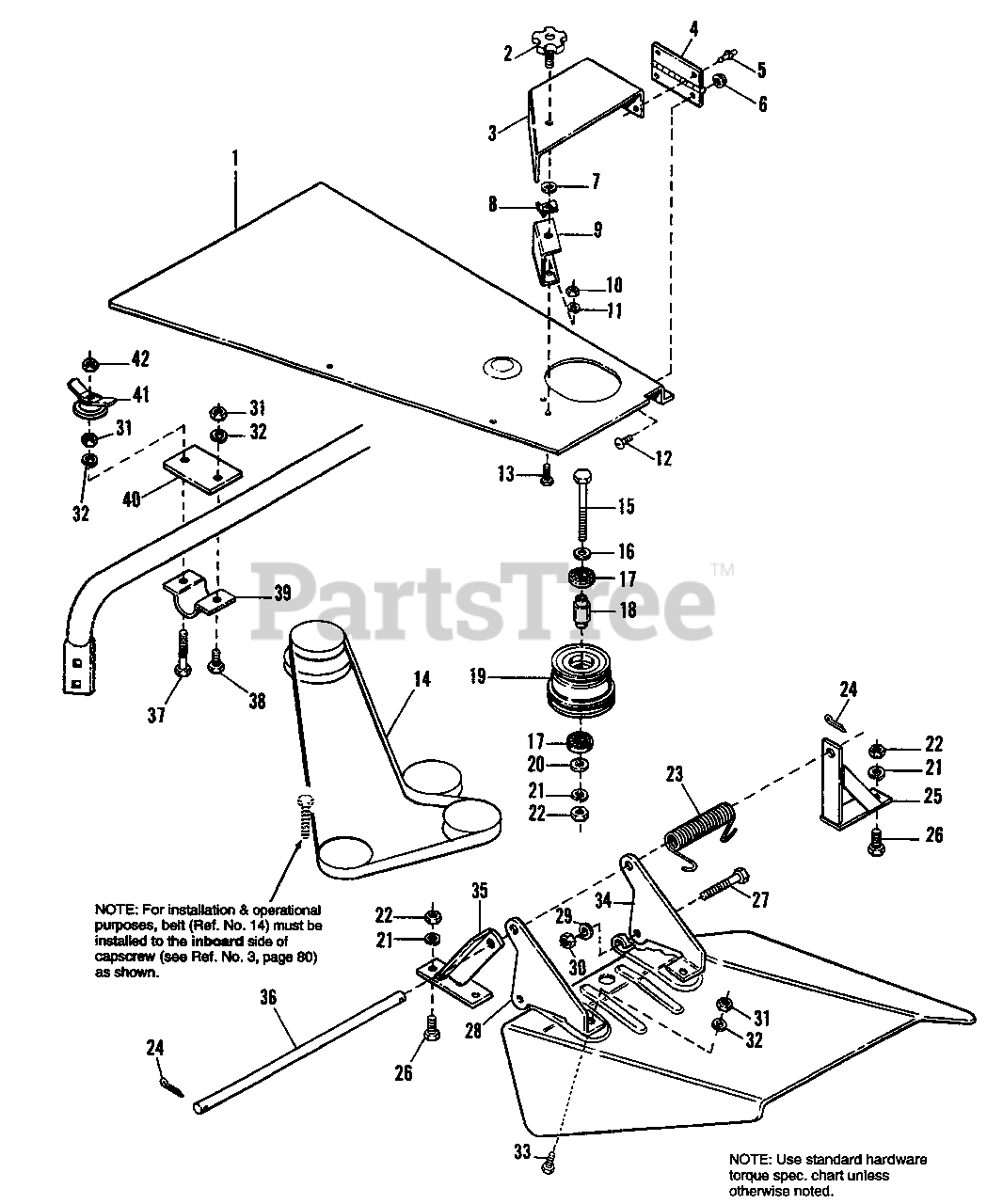

60" Turbo Collection System - Cover & Support Group Parts Diagram

  • Title

1

Simplicity 1700647SM

COVER, L.H. Mower

$

$

Not available

2

Simplicity 1700669SM

PLASTIC KNOB

$19.99

$

Usually ships in 2-12 days

0

3

Simplicity 1700668SM

COVER ASSY.,
(Superseded to 1700668ASM)

Note: (Incl. Ref. Nos. 4 & 5)

$58.99

$

Usually ships in 2-12 days

0

4

Simplicity 1700649SM

HINGE

$25.99

$

Usually ships in 2-12 days

0

5

Simplicity 2828707SM

RIVET, 3/16 x 5/16

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 1928919SM

NUT, Hex, Washer #10-32

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 2833988

PUSH NUT, 5/16 Stud

$

$

Not available

8

Simplicity 2835255

PALNUT, 5/16-18

$

$

Not available

9

Simplicity 1700654ASM

BRACKET, Belt Cover

$15.99

$

Usually ships in 2-12 days

0

10

Simplicity 1916622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

11

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

12

Simplicity 922121

SCREW, Rd. Hd., Mach., #10-32 x 3/8

$

$

Not available

13

Simplicity 1921958SM

CAPSCREW, Hex, 1/4-20 x 1/2

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 1679915SM

V-BELT
(Superseded to 1734009SM)

$47.99

$

In Stock, only 1 left!

0

15

Simplicity 1922918SM

SCREW, Cap, Hex, 3/8-16 x 3-1/4
(Superseded to 703874)

$4.49

$

In Stock, only 1 left!

0

16

Simplicity 2157424SM

WASHER, Special

$7.49

$

In Stock, Qty 5

0

17

Simplicity 1705897SM

BEARING

$8.49

$

In Stock, Qty 20+

0

18

Simplicity 1700651SM

SPACER, Pulley

$24.99

$

Usually ships in 2-12 days

0

19

Simplicity 1700650SM

PULLEY

$222.99

$

In Stock, only 1 left!

0

20

Simplicity 1700652SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

21

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

22

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

23

Simplicity 1700852SM

SPRING, Torsion

$43.99

$

Usually ships in 2-12 days

0

24

Simplicity 1918447SM

PIN, Cotter, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1700832ASM

HINGE ASSY., Rear

$35.99

$

Usually ships in 2-12 days

0

26

Simplicity 1921210SM

CAPSCREW, Hex, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

27

Simplicity 1926109

CAPSCREW, Hex, 7/16-14 x 2-1/4

$

$

Not available

28

Simplicity 1700801ASM

PIVOT, Bracket, L.H.

$43.99

$

Usually ships in 2-12 days

0

29

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

30

Simplicity 1918213SM

NUT, Hex, Full, 7/16-14

$4.99

$

In Stock, only 2 left!

0

31

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 1923325SM

CAPSCREW, Hex, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 20+

0

34

Simplicity 1700802ASM

PIVOT, Bracket, R.H.

$55.99

$

Usually ships in 2-12 days

0

35

Simplicity 1700828SM

HINGE ASSY., Front

$29.99

$

Usually ships in 2-12 days

0

36

Simplicity 1700853SM

ROD, Pivot

$14.99

$

Usually ships in 2-12 days

0

37

Simplicity 1960318SM

CAPSCREW, Hex, 5/16-18 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

38

Simplicity 1925205SM

CAPSCREW, Hex, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

39

Simplicity 1679898SM

CLAMP, Lower

$8.49

$

Usually ships in 2-12 days

0

40

Simplicity 1679899SM

CLAMP, Upper

$10.99

$

Usually ships in 2-12 days

0

41

Simplicity 1679163SM

NUT ASSY.

$69.99

$

In Stock, only 1 left!

0

42

Simplicity 1923362SM

NUT, Hex, Full, Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 11

0
