1692024 - Simplicity GTG Garden Tractor, 14hp Lift Lever Group - Gear Model Parts Diagram

GTG Garden Tractor, 14hp

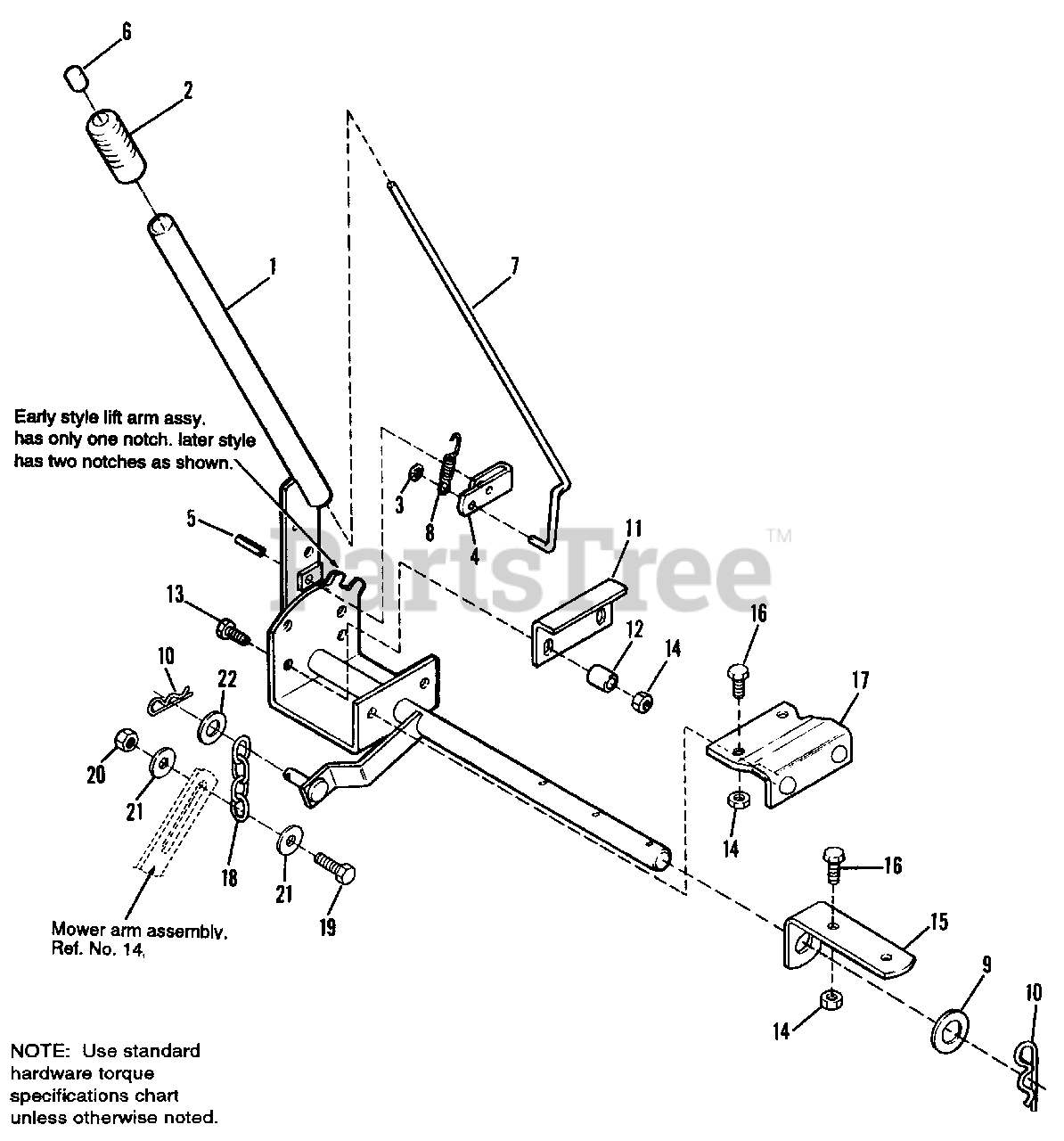

Lift Lever Group - Gear Model Parts Diagram

  • Title

1

Simplicity 1722121

LEVER ASSY., Lift (Early models only)
(Superseded to 1722121ASM)

$

$

Not available

1

Simplicity 1707446

LEVER ASSY., Lift (Later models only)

$

$

Not available

2

Simplicity 1713995SM

GRIP, Lift Lever

$12.99

$

In Stock, only 1 left!

0

3

Simplicity 1934953SM

NUT, Push-On

$3.49

$

In Stock, only 1 left!

0

4

Simplicity 1657648SM

LATCH, Lift Lever

$

$

Not available

5

Simplicity 1927609SM

PIN, Roll

$3.49

$

In Stock, Qty 6

0

6

Simplicity 1650157SM

BUTTON, Thumb

$7.49

$

In Stock, only 1 left!

0

7

Simplicity 1667290SM

ROD, Latch

$47.99

$

Usually ships in 2-12 days

0

8

Simplicity 1667286SM

SPRING

$9.99

$

Usually ships in 2-12 days

0

9

Simplicity 1911386SM

WASHER, Flat
(Superseded to 703992)

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1960033SM

CLIP, Hair Pin (Qty. 2 on earlier models)

$3.49

$

In Stock, Qty 5

0

11

Simplicity 1704715SM

BRACKET, Guide, Lift
(Superseded to 1704715ASM)

$25.99

$

Usually ships in 2-12 days

0

12

Simplicity 1704716SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

13

Simplicity 1921977SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 14

0

14

Simplicity 1919438SM

NUT, Hex, Lock, ESNA, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 14

0

15

Simplicity 1704712ASM

BRACKET, Pivot, Lift

$12.99

$

Usually ships in 2-12 days

0

16

Simplicity 1923325SM

CAPSCREW, Hex Hd., 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 20+

0

17

Simplicity 1704713ASM

BRACKET ASSY., Lift Mounting

$91.99

$

Usually ships in 2-12 days

0

18

Simplicity 1708088ASM

CHAIN, Lift, 4 Link (Early models only)

$11.99

$

Usually ships in 2-12 days

0

19

Simplicity 1930570SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2 (Early models only)

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 1919438SM

NUT, Hex, Lock, Full, 5/16-18 (Early models only)
(Superseded to 703902)

$3.99

$

In Stock, Qty 14

0

21

Simplicity 1919381SM

WASHER, Flat (Early models only)
(Superseded to 703298)

$4.49

$

In Stock, Qty 13

0

22

Simplicity 1922755SM

WASHER, Flat (Early models only)
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0
