1692149 - Snapper Clean Sweep Twin Grass Catcher for 30" Mower Adapter, Blade & Tube Group Parts Diagram

Clean Sweep Twin Grass Catcher for 30" Mower

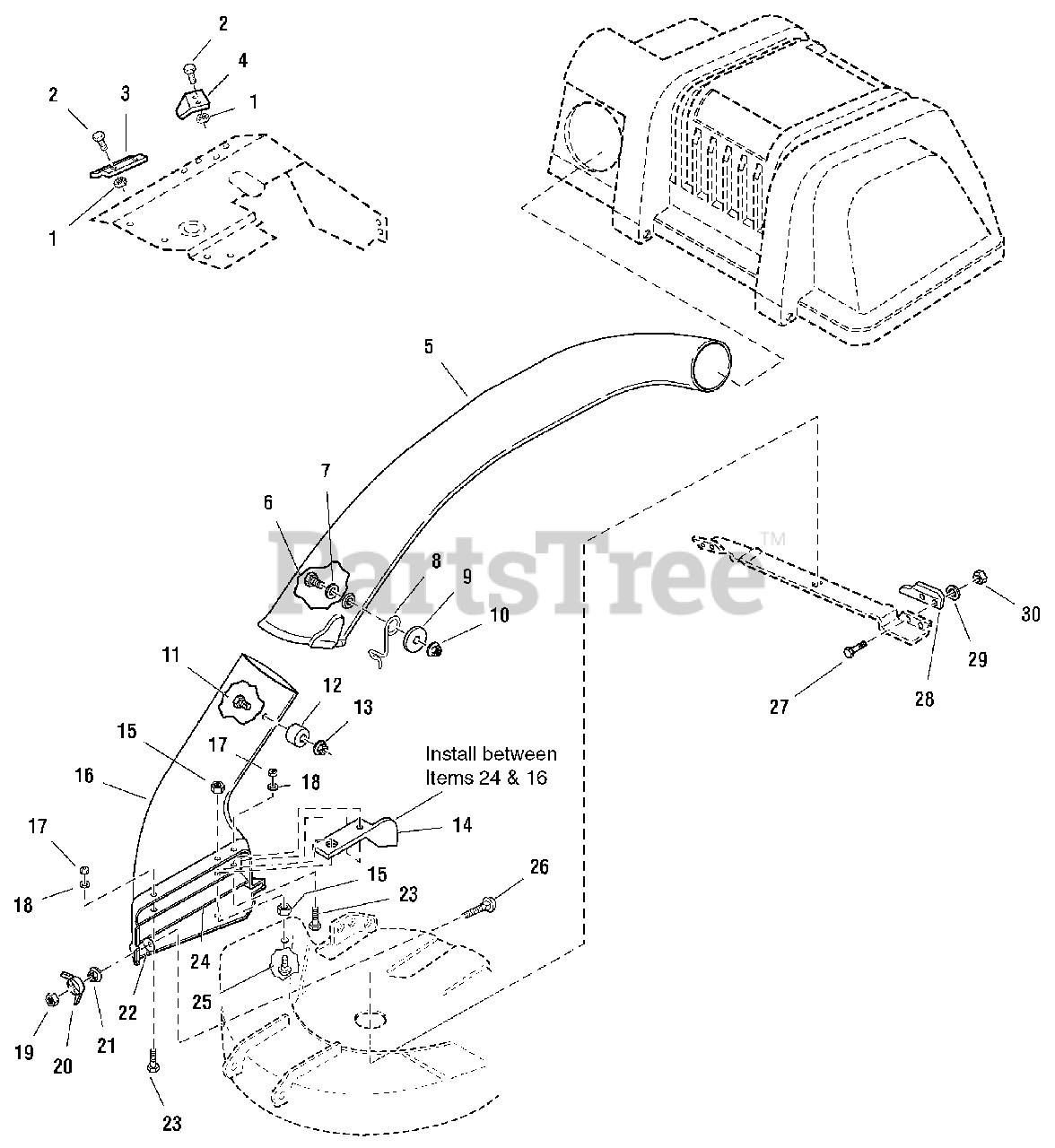

Adapter, Blade & Tube Group Parts Diagram

  • Title

1

Snapper 1928919SM

NUT, Hex Washer Assembly, Hex, #10-32

$3.99

$

Usually ships in 2-12 days

0

2

Snapper 1930531SM

SCREW, Truss Head, #10-24

$4.49

$

Usually ships in 2-12 days

0

3

Snapper 1713286ASM

EXHAUST SHIELD, Front

$9.49

$

Usually ships in 2-12 days

0

4

Snapper 1713287ASM

EXHAUST SHIELD, Rear

$7.49

$

Usually ships in 2-12 days

0

5

Snapper 1703769SM

TRANSFER TUBE

$301.99

$

Usually ships in 2-12 days

0

6

Snapper 1960122SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$6.99

$

Usually ships in 2-12 days

0

7

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 18

0

8

Snapper 1704603SM

LATCH, Tube

$6.49

$

Usually ships in 2-12 days

0

9

Snapper 1960185SM

WASHER, Flat, 3/16

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 1935048SM

NUT, Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 1960371SM

SCREW, Head Head, 5/16-18 x 3/4

$5.49

$

Usually ships in 2-12 days

0

12

Snapper 1704341SM

WASHER, Special, 11/32 x 7/8 x 1-3/4

$42.99

$

Usually ships in 2-12 days

0

13

Snapper 1919438SM

LOCKNUT, Hex, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

14

Snapper 1686783SM

BAFFLE, Corner

$27.99

$

Usually ships in 2-12 days

0

15

Snapper 1920161SM

NUT, Hex Jam, 5/16-18

$4.49

$

In Stock, Qty 10

0

16

Snapper 1709134SM

ADAPTER

$153.99

$

Usually ships in 2-12 days

0

17

Snapper 1933896SM

NUT, Hex Head, #10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

18

Snapper 1960096SM

WASHER, Flat, 3/16

$3.99

$

Usually ships in 2-12 days

0

19

Snapper 1928698SM

NUT, Hex Centerlock, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

20

Snapper 1679163SM

WING NUT ASSEMBLY, 5/16

$69.99

$

In Stock, only 1 left!

0

21

Snapper 1927557SM

NUT, Hex Flange, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

22

Snapper 1679164ASM

CUP

$56.99

$

Usually ships in 2-12 days

0

23

Snapper 2826267SM

SCREW, Flat Head, #10-24 x 5/8

$2.99

$

Usually ships in 2-12 days

0

24

Snapper 1704356ASM

STRAP, Reinforcement

$27.99

$

Usually ships in 2-12 days

0

25

Snapper 1960223SM

BOLT, Carriage, 5/16-18 x 1 1/4
(Superseded to 703446)

$4.49

$

In Stock, only 1 left!

0

26

Snapper 1960273SM

CARRIAGE BOLT, 5/16-18 x 2-1/4
(Superseded to 704421)

$5.49

$

Usually ships in 2-12 days

0

27

Snapper 1935105SM

CAPSCREW, 1/4-20 x 5/8, Gr. 8

$6.99

$

Usually ships in 2-12 days

0

28

Snapper 1665419ASM

LIFT PLATE

$24.99

$

Usually ships in 2-12 days

0

29

Snapper 1916964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

30

Snapper 1916622SM

LOCKNUT, Hex, 5/16-18
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0
