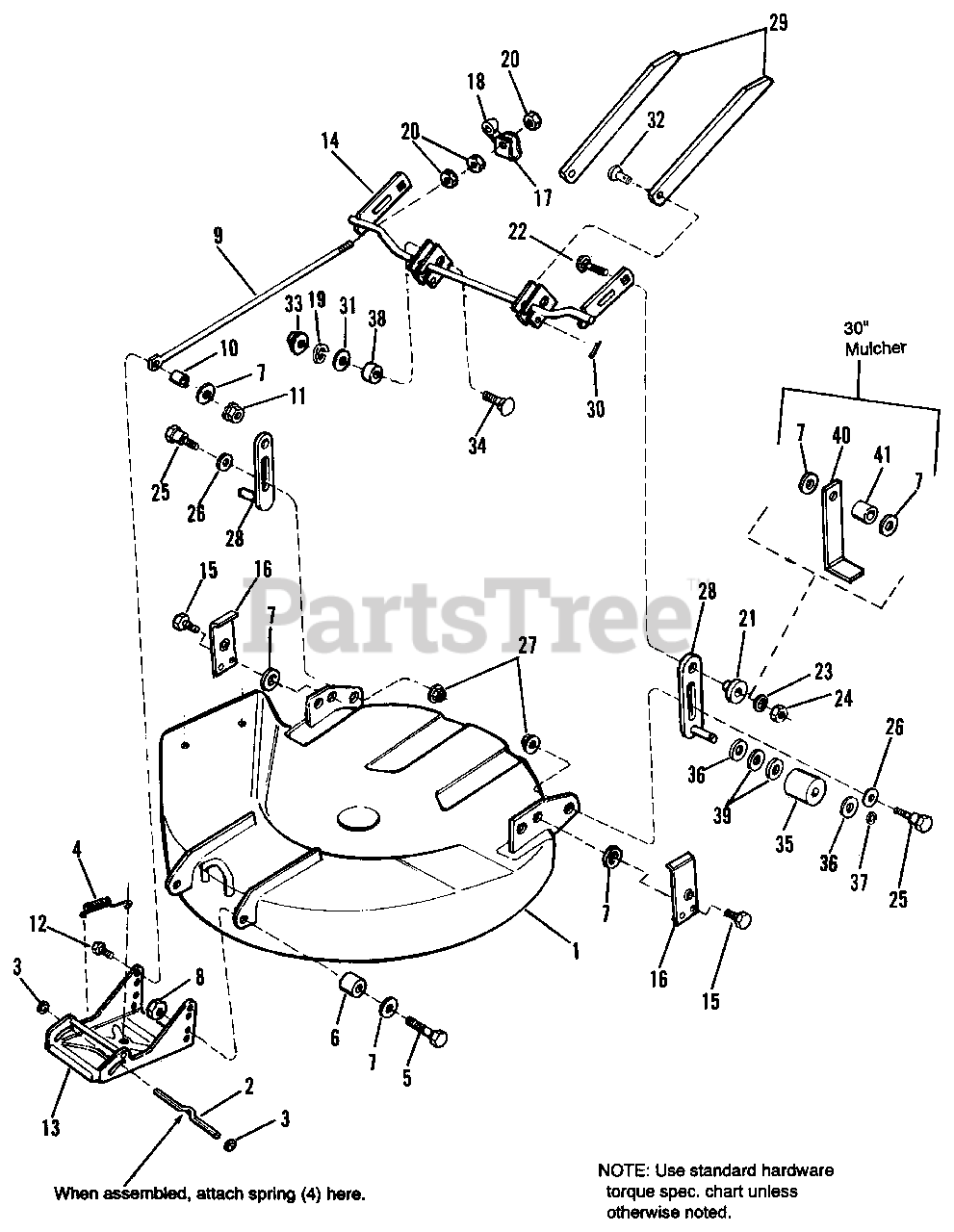

1692170 - Simplicity Coronet 30" Rear-Engine Riding Mower, 12.5hp 30"/30M" Housing, Hitch & Height Adjustment Group Parts Diagram

Coronet 30" Rear-Engine Riding Mower, 12.5hp

30"/30M" Housing, Hitch & Height Adjustment Group Parts Diagram

  • Title

1

Simplicity 1685670SM

HOUSING ASSY., 30" Std. (Orange)

$749.99

$

Usually ships in 2-12 days

0

1

Simplicity 1685671SM

HOUSING ASSY., 30" Mulcher (Orange)

$

$

Not available

Simplicity 1687135SM

HOUSING ASSY., 30" Std. (Black)

$

$

Not available

Simplicity 1687136

HOUSING ASSY., 30" Mulcher (Black)

$

$

Not available

2

Simplicity 1715759SM

ROD, Latch

$8.49

$

In Stock, Qty 5

0

3

Simplicity 1960093SM

PUSHNUT
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 2106681SM

SPRING

$23.99

$

Usually ships in 2-12 days

0

5

Simplicity 1920415SM

CAPSCREW, Hex, 3/8-16 x 1-1/4
(Superseded to 5025013X10SM)

$4.49

$

In Stock, only 4 left!

0

6

Simplicity 2157081SM

SPACER

$9.49

$

In Stock, Qty 9

0

7

Simplicity 1924940SM

WASHER, Flat, 3/8 (Qty. 10, 30" Mulcher)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1919439SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703117)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1707300SM

ROD, Adjustment

$21.99

$

Usually ships in 2-12 days

0

10

Simplicity 161-05

SPACER

$

$

Not available

11

Simplicity 1930645SM

NUT, Hex, Flange Lock, 3/8
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 3 left!

0

13

Simplicity 1707432ASM

HITCH ASSY.

$

$

Not available

14

Simplicity 1707540ASM

ARM ASSY., Mower

$86.99

$

Usually ships in 2-12 days

0

15

Simplicity 1664847SM

SCREW, Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1708250ASM

PLATE, Pivot Support

$

$

Not available

17

Simplicity 1707280ASM

TRUNNION

$5.49

$

Usually ships in 2-12 days

0

18

Simplicity 1671260SM

SPACER
(Superseded to 703450)

$8.99

$

Usually ships in 2-12 days

0

19

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

20

Simplicity 1913744SM

JAMNUT, Hex, 1/2-13

$4.99

$

In Stock, Qty 20+

0

21

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, only 4 left!

0

22

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2 (30" Std.)

$4.49

$

In Stock, Qty 5

0

22

Simplicity 1960315SM

CARRIAGE BOLT, 3/8-16 x 2 (30" Mulcher)

$6.99

$

In Stock, Qty 10

0

23

Simplicity 1916965SM

LOCKWASHER
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

24

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 11

0

25

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$7.49

$

In Stock, Qty 20+

0

26

Simplicity 1924361SM

WASHER, Flat
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 1928352SM

NUT, Hex, Flange, Whizlock, 3/8-16
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 1708519ASM

SUPPORT ASSY., Roller

$

$

Not available

29

Simplicity 1709209ASM

BAR, Mower Transport

$17.99

$

Usually ships in 2-12 days

0

30

Simplicity 1960074SM

PIN, Retaining
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 1919326SM

WASHER, Flat, 5/16

$4.49

$

Usually ships in 2-12 days

0

32

Simplicity 1655651SM

PIN, Locking
(Superseded to 1733568SM)

$6.99

$

Usually ships in 2-12 days

0

33

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 6

0

34

Simplicity 1960223SM

CARRIAGE BOLT, 5/15-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, only 2 left!

0

35

Simplicity 1668487SM

ROLLER

$10.99

$

In Stock, Qty 13

0

36

Simplicity 1960020SM

WASHER, 21/32 x 1-1/8 x 1/16

$4.49

$

In Stock, Qty 20+

0

37

Simplicity 2153124SM

RING, Retaining

$6.49

$

In Stock, Qty 20+

0

38

Simplicity 1705249SM

SPACER

$

$

Not available

39

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

40

Simplicity 1709245

BRACKET, Roller (30" Mulcher)

$

$

Not available

41

Simplicity 1663752SM

SPACER (30" Mulcher)

$6.49

$

In Stock, Qty 10

0
