1692230 - Simplicity Rear PTO, 3400 RPM Rear P.T.O. (3400 RPM) Parts Diagram

Rear PTO, 3400 RPM

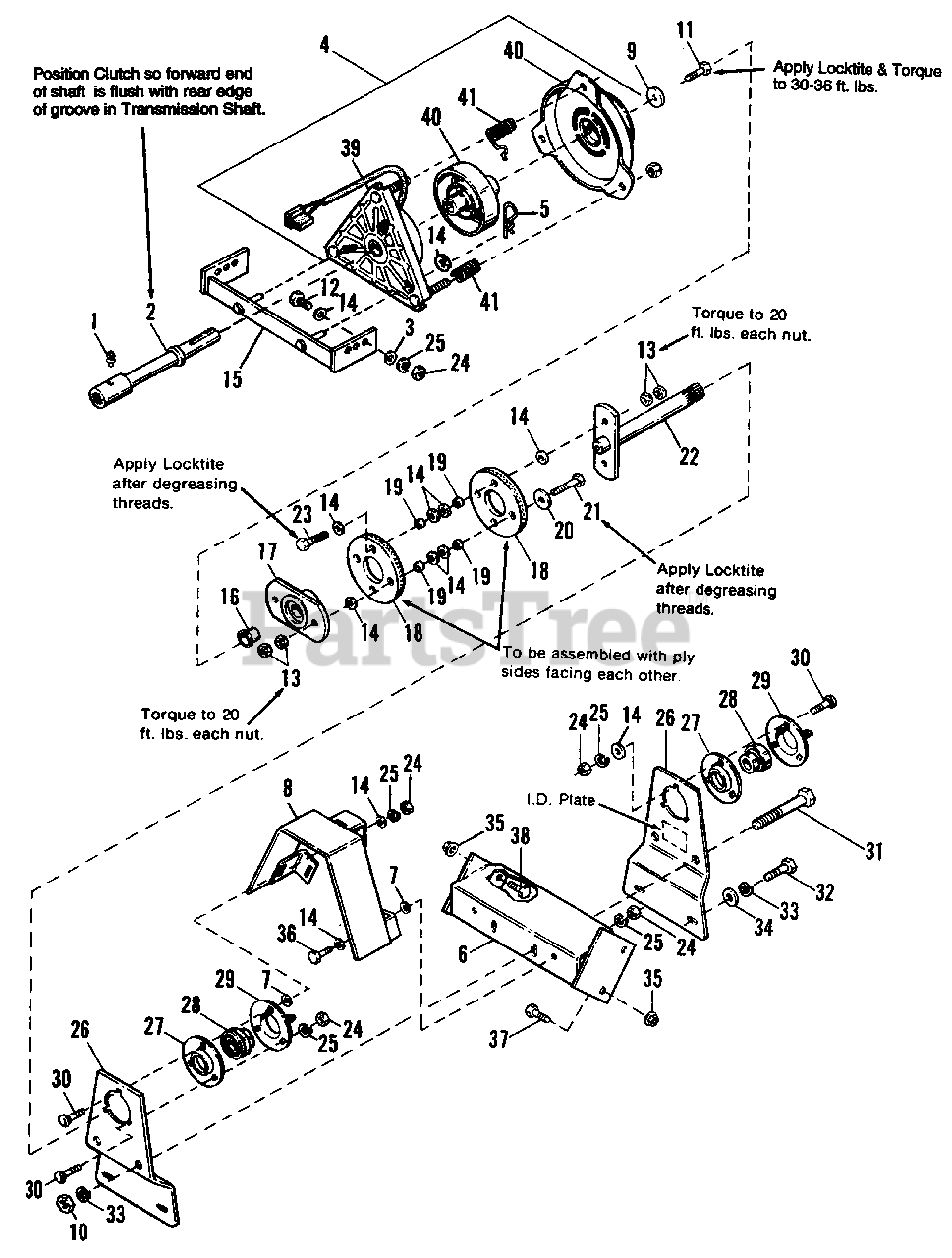

Rear P.T.O. (3400 RPM) Parts Diagram

  • Title

1

Simplicity 1704314SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

2

Simplicity 1679710SM

SHAFT ASSY.

$

$

Not available

3

Simplicity 1919381SM

WASHER, Plain, 11/32 x 1 x 1/8
(Superseded to 703298)

$4.49

$

In Stock, Qty 12

0

4

Simplicity 1709199SM

ELECTRIC CLUTCH

Note: (Incl. Ref. Nos. 39-41)

$638.99

$

Usually ships in 2-12 days

0

5

Simplicity 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 1677004SM

BRACKET ASSY.

$

$

Not available

7

Simplicity 2833988

NUT, Push Pal, 5/16

$

$

Not available

8

Simplicity 1677207SM

GUARD ASSY.

$68.99

$

Usually ships in 2-12 days

0

9

Simplicity 1960534SM

WASHER, 13/32 x 1-1/2 x 1/4

$

$

Not available

10

Simplicity 1916951SM

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

11

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1, Gr. 5
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

12

Simplicity 1921333SM

CAPSCREW, Hex Hd., 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

13

Simplicity 1923362SM

NUT, Hex, Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

14

Simplicity 1919326SM

WASHER, Plain, 11/32 ID x 3/4 OD x 1/16

$4.49

$

In Stock, Qty 18

0

15

Simplicity 1709159SM

PLATE ASSY., Rear P.T.O.
(Superseded to 1709159ASM)

$109.99

$

Usually ships in 2-12 days

0

16

Simplicity 1676998SM

BUSHING

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 1702011SM

HUB ASSY.

$67.99

$

Usually ships in 2-12 days

0

18

Simplicity 1676829SM

FLEX COUPLING

$27.99

$

Usually ships in 2-12 days

0

19

Simplicity 2156150SM

SPACER

$11.99

$

Usually ships in 2-12 days

0

20

Simplicity 1933468SM

WASHER, Plain, 11/32 x 1-1/4 x 1/8

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, Qty 6

0

22

Simplicity 1677002SM

SHAFT ASSY., P.T.O.

$119.99

$

In Stock, only 1 left!

0

23

Simplicity 1921221SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, Qty 7

0

24

Simplicity 1917372SM

NUT, Hex, 5/6-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16-18
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 1677009SM

SUPPORT, Rear P.T.O.

$

$

Not available

27

Simplicity 2172278ASM

FLANGE, Bearing

$11.99

$

In Stock, only 2 left!

0

28

Simplicity 2173934SM

BEARING, Cartridge
(Superseded to 1733105SM)

$57.99

$

In Stock, only 2 left!

0

29

Simplicity 2172279ASM

FLANGE, Bearing

$14.99

$

Usually ships in 2-12 days

0

30

Simplicity 1931335SM

BOLT, Carriage, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

31

Simplicity 1923161SM

CAPSCREW, Hex Hd., 1/2-13 x 4-1/2, Gr. 5

$4.99

$

Usually ships in 2-12 days

0

32

Simplicity 1920328SM

CAPSCREW, Hex Hd., 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

In Stock, only 1 left!

0

33

Simplicity 1916966SM

LOCKWASHER, Spring, 1/2
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

34

Simplicity 1924361SM

WASHER, Plain, 17/32
(Superseded to 703451)

$4.49

$

Usually ships in 2-12 days

0

35

Simplicity 1935041SM

NUT, Hex, Flange Whiz, 7/16-14

$1.99

$

Usually ships in 2-12 days

0

36

Simplicity 1923325SM

CAPSCREW, Hex Hd., 5/16-18 x 7/8, Gr. 5
(Superseded to 703408)

$4.99

$

In Stock, Qty 20+

0

37

Simplicity 1923451SM

CAPSCREW, 7/16-14 x 1-1/2, Gr. 8

$3.49

$

Usually ships in 2-12 days

0

38

Simplicity 2823471SM

CAPSCREW, Hex Hd., 7/16-14 x 1-1/4, Gr. 8
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

39

Simplicity 1709294SM

FIELD ASSY.
(Superseded to 1714637SM)

$683.99

$

Usually ships in 2-12 days

0

40

Simplicity 1709199SM

ROTOR, ARMATURE & BRAKE ASSY.

$638.99

$

Usually ships in 2-12 days

0

41

Simplicity 1709293SM

ACCESSORY KIT

$14.99

$

Usually ships in 2-12 days

0
