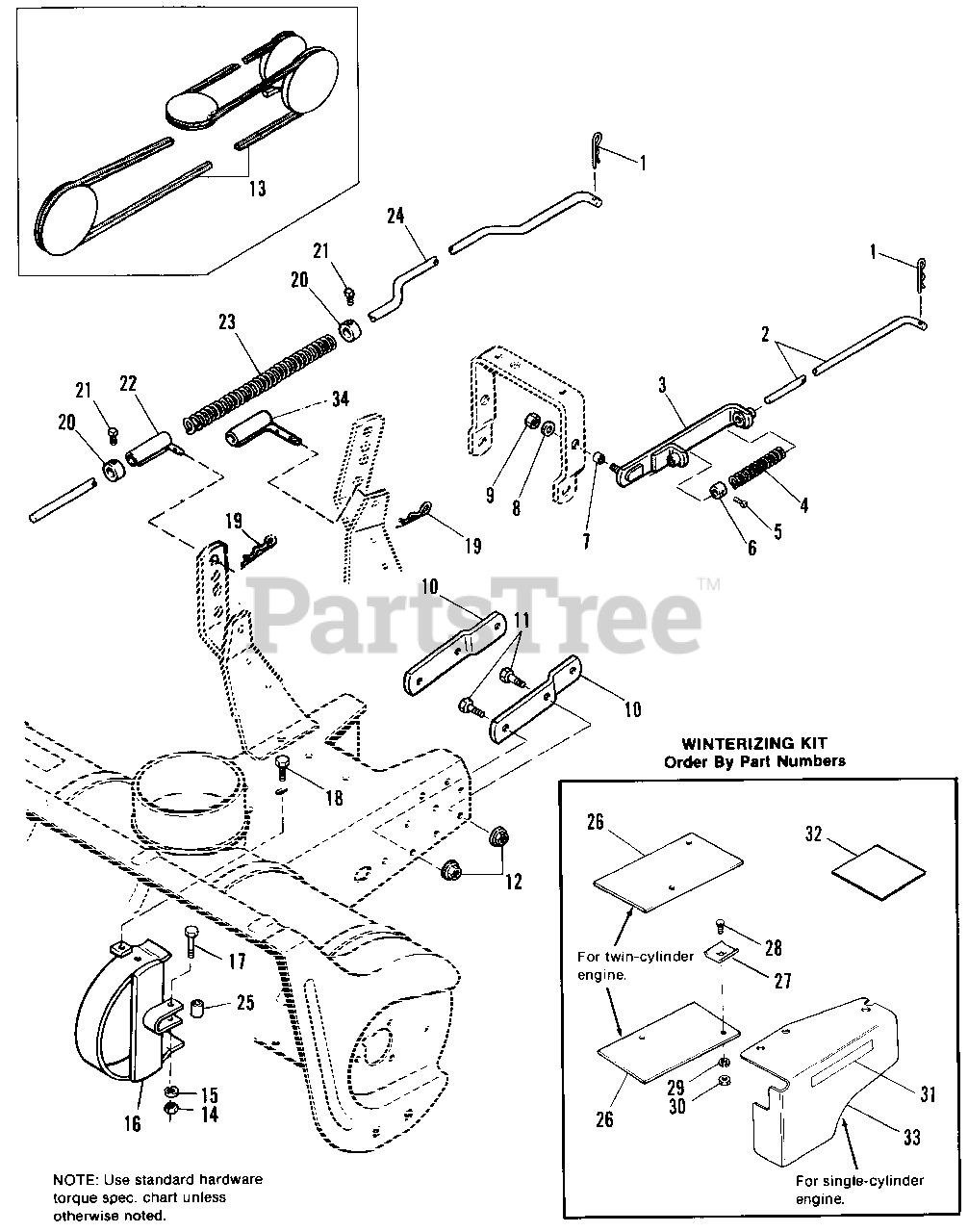

1692239 - Simplicity Hitch for 36" Snow Thrower 36" & 42" Misc. Hitch Group Parts Diagram

Hitch for 36" Snow Thrower

36" & 42" Misc. Hitch Group Parts Diagram

  • Title

1

Simplicity 2106788

CLIP, Spring

$

$

Not available

2

Simplicity 1674193SM

ROD

$22.99

$

Usually ships in 2-12 days

0

3

Simplicity 1665194SM

GUIDE ASSY., Rod

$80.99

$

Usually ships in 2-12 days

0

4

Simplicity 2163103SM

SPRING

$8.49

$

Usually ships in 2-12 days

0

5

Simplicity 1928804SM

SETSCREW, 1/4-20 x 3/8

$4.49

$

In Stock, only 1 left!

0

6

Simplicity 1729276SM

COLLAR, Set

$23.99

$

Usually ships in 2-12 days

0

7

Simplicity 2154177SM

SPACER

$39.99

$

In Stock, only 4 left!

0

8

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 18

0

9

Simplicity 1928731SM

LOCKNUT, Hex, Jam, 3/8-16

$4.99

$

In Stock, only 1 left!

0

10

Simplicity 2177565ASM

CLIP, Frame

$13.99

$

In Stock, only 2 left!

0

11

Simplicity 1920676SM

CAPSCREW, Hex, 7/16-14 x 1

$5.49

$

In Stock, Qty 11

0

12

Simplicity 1930650SM

LOCKNUT, Hex, Flange, 7/16-14

$5.49

$

In Stock, only 1 left!

0

13

Simplicity 1703466SM

V-BELT (Drive)

$64.99

$

In Stock, Qty 7

0

14

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1668100SM

GUARD ASSY., Belt

$

$

Not available

17

Simplicity 1922127SM

CAPSCREW, Hex, 5/16-18 X 1-1/4
(Superseded to 704288)

$4.99

$

In Stock, only 3 left!

0

18

Simplicity 1924856SM

SCREW, Self-Tping, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 15

0

19

Simplicity 2106787

CLIP, Spring

$

$

Not available

20

Simplicity 1729258SM

COLLAR, Set
(Superseded to 5010477YP)

$8.99

$

Usually ships in 2-12 days

0

21

Simplicity 1928721SM

SETSCREW, 5/16-18 x 1/2

$4.99

$

In Stock, Qty 13

0

22

Simplicity 1709285SM

GUIDE ASSY., Rod, (1692239 only)

$

$

Not available

23

Simplicity 2171011SM

SPRING

$75.99

$

In Stock, only 1 left!

0

24

Simplicity 1665887SM

ROD, Lift

$69.99

$

Usually ships in 2-12 days

0

25

Simplicity 2123027SM

SPACER

$10.99

$

Usually ships in 2-12 days

0

26

Simplicity 1715246SM

HOOD, w/louvers (for twin-cylinder engines)
(Superseded to 1715246AYP)

$7.99

$

Usually ships in 2-12 days

0

27

Simplicity 1667831SM

CLIP

$4.49

$

Usually ships in 2-12 days

0

28

Simplicity 1960252SM

CARRIAGE BOLT, 1/4-20 X 5/8

$3.99

$

Usually ships in 2-12 days

0

29

Simplicity 1916964SM

LOCKWASHER
(Superseded to 704133)

$3.99

$

In Stock, only 1 left!

0

30

Simplicity 1916622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

31

Simplicity 170252

DECAL, Shield

$

$

Not available

32

Simplicity 1667030

DECAL, Installation (under hood)

$

$

Not available

33

Simplicity 1651562SM

DEFLECTOR (for single-cylinder engines)

$43.99

$

Usually ships in 2-12 days

0

34

Simplicity 2171679SM

GUIDE ASSY., (1690556 Only)

$76.99

$

Usually ships in 2-12 days

0
