1692239 - Simplicity Hitch for 36" Snow Thrower 36"& 42" Snowthrower Hitch Group Parts Diagram

Hitch for 36" Snow Thrower

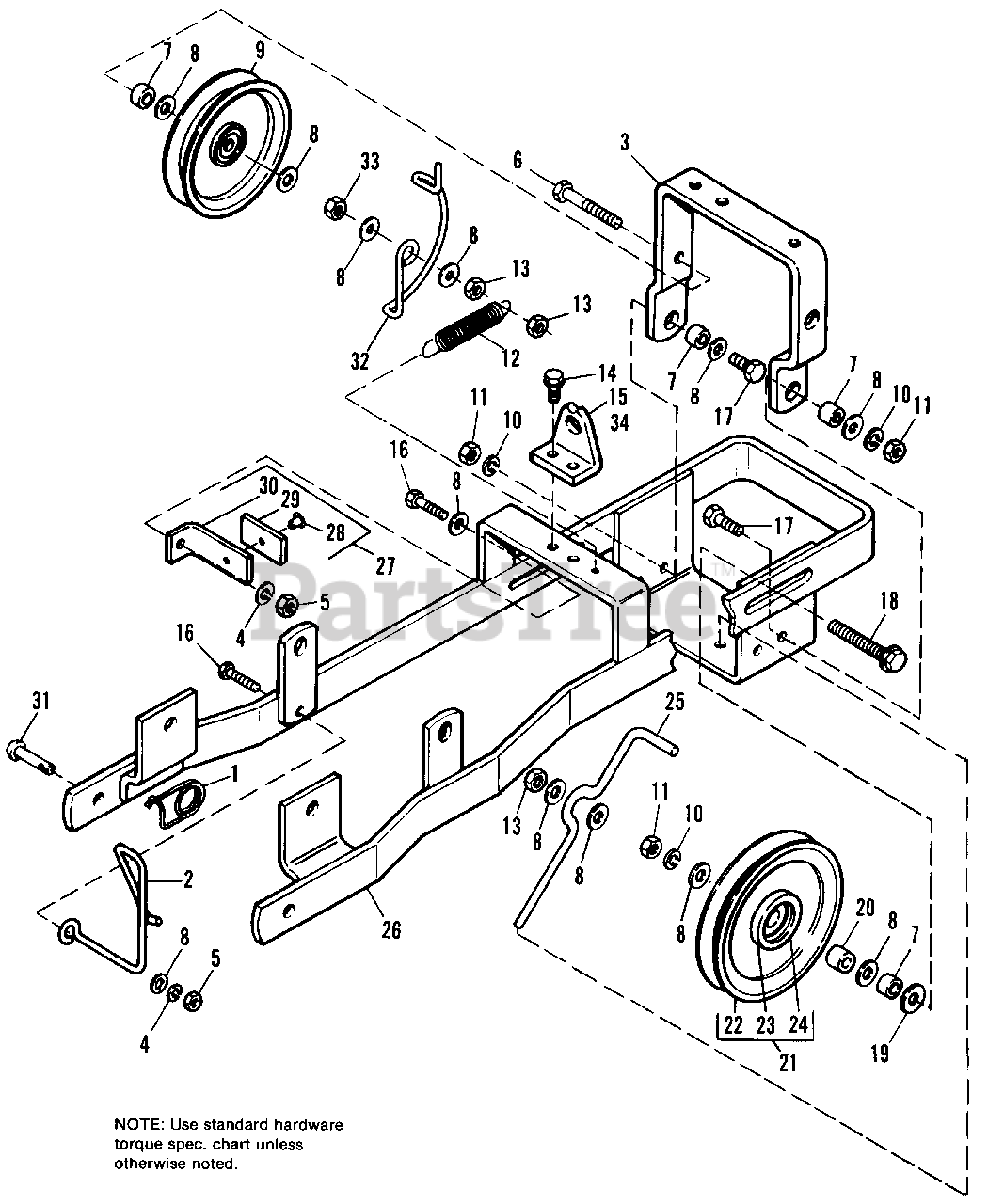

36"& 42" Snowthrower Hitch Group Parts Diagram

  • Title

1

Simplicity 2176012SM

CLIP, Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 1666149SM

STOP, Belt

$28.99

$

Usually ships in 2-12 days

0

3

Simplicity 1704731

PIVOT, Bracket
(Superseded to 1704731ASM)

$38.99

$

Usually ships in 2-12 days

0

4

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1933685SM

CAPSCREW, Hex, Full Thread, 3/8-16 x 2-1/2

$5.49

$

In Stock, only 4 left!

0

7

Simplicity 2158227SM

SPACER

$32.99

$

In Stock, only 1 left!

0

8

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 18

0

9

Simplicity 2171247SM

PULLEY

$51.99

$

In Stock, Qty 8

0

10

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

11

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

12

Simplicity 2159106SM

SPRING
(Superseded to 703144)

$5.99

$

In Stock, Qty 10

0

13

Simplicity 1928731SM

LOCKNUT, Hex, Jam, 3/8-16

$4.99

$

In Stock, only 1 left!

0

14

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1665193SM

PIVOT, (All except 6000)

$7.99

$

Usually ships in 2-12 days

0

16

Simplicity 1921977SM

CAPSCREW, hex, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 16

0

17

Simplicity 1920415SM

CAPSCREW, Hex, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 1 left!

0

18

Simplicity 1934653SM

SCREW, Whizlock, 3/8-16 x 3

$7.99

$

Usually ships in 2-12 days

0

19

Simplicity 1922755SM

WASHER, Plain, 13/32 x 1
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

20

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

21

Simplicity 1666287ASM

PULLEY ASSY., w/Bearing (Incl. Ref. Nos.22,23, 24)

$91.99

$

Usually ships in 2-12 days

0

22

PULLEY (Order Ref. No. 21)

$

$

Not available

23

Simplicity 2827695SM

RING, Retaining

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 1705997

BEARING

$

$

Not available

25

Simplicity 1666191SM

STOP, Belt

$16.99

$

Usually ships in 2-12 days

0

26

Simplicity 1665199SM

PUSH BAR ASSY.

$292.99

$

Usually ships in 2-12 days

0

27

Simplicity 1666188SM

BRAKE BRACKET ASSY. (Incl. Ref. Nos. 28, 29, 30)

$

$

Not available

28

Simplicity 2825160SM

RIVET

$4.49

$

In Stock, Qty 8

0

29

Simplicity 1610590SM

PAD, Brake

$48.99

$

Usually ships in 2-12 days

0

30

Simplicity 1665195SM

BRACKET, Brake

$4.49

$

Usually ships in 2-12 days

0

31

Simplicity 2156306SM

PIN

$7.49

$

In Stock, Qty 20+

0

32

Simplicity 1667820SM

STOP, Belt

$

$

Not available

33

Simplicity 1917421SM

NUT, Hex, Jam, 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

34

Simplicity 1669125SM

SUPPORT, Hitch, Rear (6000 Series only)

$7.49

$

Usually ships in 2-12 days

0
