1692243 - Simplicity 47" Snow Thrower Attachment 47" Snowthrower - Gearbox Parts Diagram

47" Snow Thrower Attachment

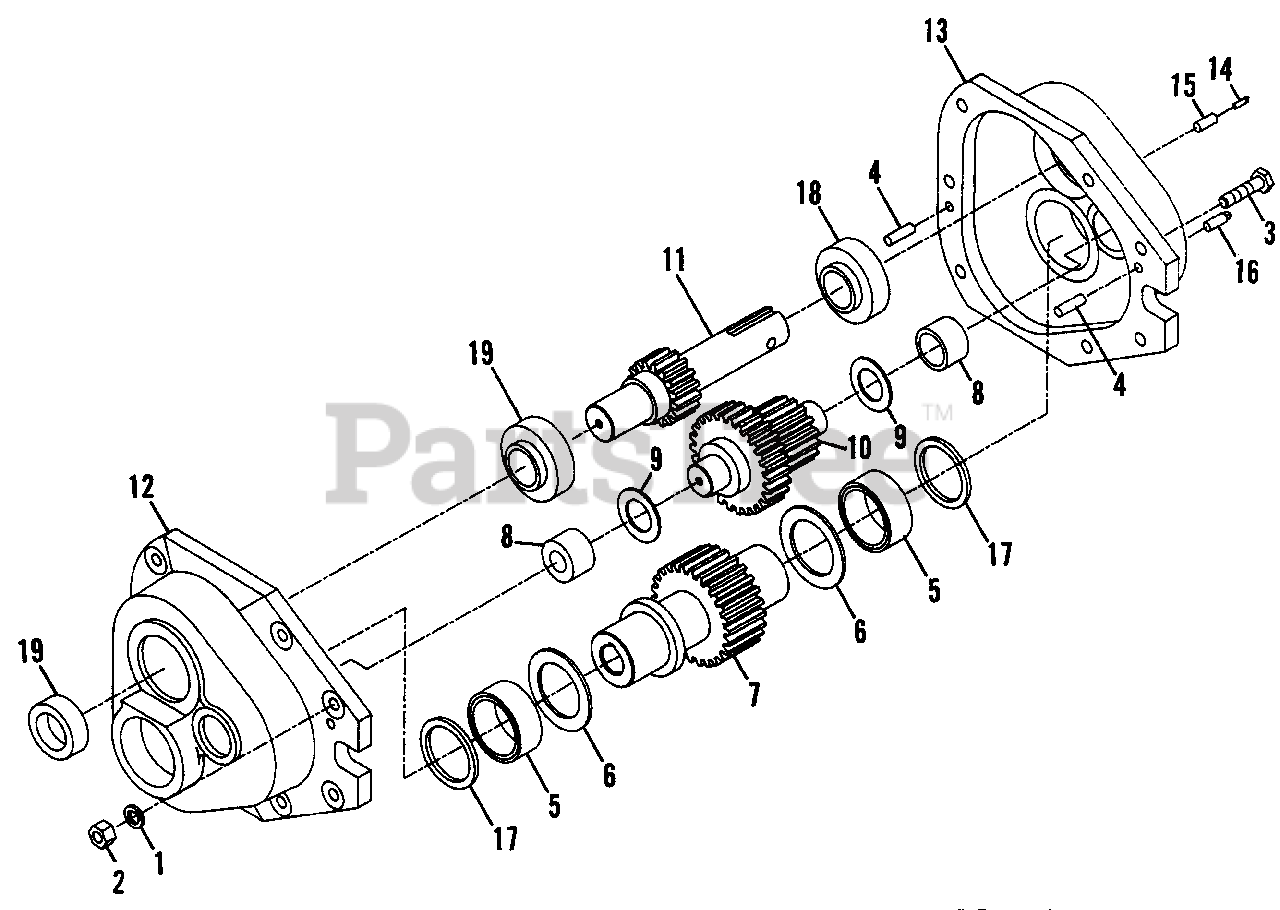

47" Snowthrower - Gearbox Parts Diagram

  • Title

1

Simplicity 1917356SM

LOCKWASHER, 5/16 regular
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1917372SM

NUT, Hex, 5/16
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1921977SM

CAPSCREW, Hex Hd., 5/16 18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

4

Simplicity 2817554SM

PIN, Dowel, 1/4 dia x 1/2 Ig.

$3.49

$

Usually ships in 2-12 days

0

5

Simplicity 1709626SM

BEARING, 1-1/2 x 1-7/8 x 3/4

$53.99

$

Usually ships in 2-12 days

0

6

Simplicity 1709627SM

BEARING, Thrust race .090 thick

$19.99

$

Usually ships in 2-12 days

0

7

Simplicity 1709628SM

GEAR, Output

$393.99

$

Usually ships in 2-12 days

0

8

Simplicity 1709629SM

BEARING, 7/8 x BG-1/8 x 3/4

$20.99

$

Usually ships in 2-12 days

0

9

Simplicity 1709630SM

BEARING, Thrust race .060 thick

$14.99

$

Usually ships in 2-12 days

0

10

Simplicity 1686811SM

GEAR, Idler

$672.99

$

Usually ships in 2-12 days

0

11

Simplicity 1686811SM

GEAR, Input

$672.99

$

Usually ships in 2-12 days

0

12

Simplicity 1709633SM

GEARBOX, Snowblower-front

$

$

Not available

13

Simplicity 1709634SM

GEARBOX, Snowblower-rear

$

$

Not available

14

Simplicity 1709635SM

VENT, Relief

$26.99

$

Usually ships in 2-12 days

0

15

Simplicity 2801825SM

BUSHING, 1/4-male, 1/8-female

$8.99

$

Usually ships in 2-12 days

0

16

Simplicity 2801652SM

PLUG, Pipe, sq. hd. 1/4 NPT

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 1709636SM

SEAL, Oil

$10.99

$

Usually ships in 2-12 days

0

18

Simplicity 1709637SM

BEARING, Ball, 1.00 bore w/o collar
(Superseded to 1710602SM)

$84.99

$

Usually ships in 2-12 days

0

19

Simplicity 1709638SM

BEARING. Ball. 1.00 bore w/collar

$

$

Not available
