1692243 - Simplicity 47" Snow Thrower Attachment 47" Snowthrower - Gearbox and Shaft Sub-Assembly Parts Diagram

47" Snow Thrower Attachment

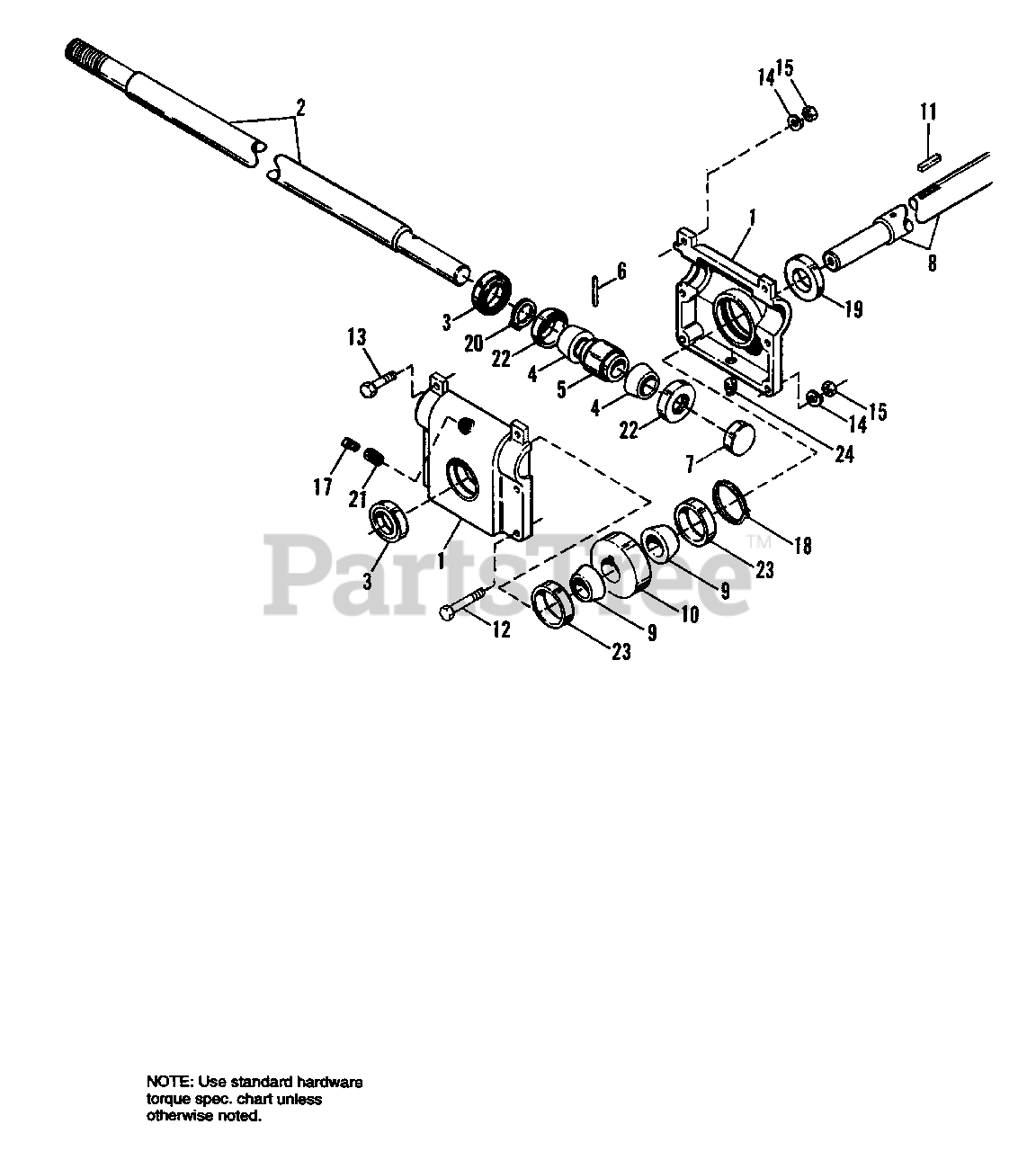

47" Snowthrower - Gearbox and Shaft Sub-Assembly Parts Diagram

  • Title

1

Simplicity 1709863SM

CASE, Gearbox

Note: (2-halves)

$6.49

$

Usually ships in 2-12 days

0

2

Simplicity 1709664SM

SHAFT, Input

$178.99

$

Usually ships in 2-12 days

0

3

Simplicity 1722674SM

SEAL, Oil

$14.99

$

Usually ships in 2-12 days

0

4

Simplicity 1709866

BEARING, Roller

$

$

Not available

5

Simplicity 1716532SM

WORM

$12.99

$

Usually ships in 2-12 days

0

6

Simplicity 2817557

PIN, Dowel, 1/4 x 1-1/8

$

$

Not available

7

Simplicity 1709668SM

PLUG,2" Dia. x 11/32

$9.99

$

Usually ships in 2-12 days

0

8

Simplicity 1709689SM

SHAFT, Output

$

$

Not available

9

Simplicity 1709670SM

BEARING, Roller

$50.99

$

Usually ships in 2-12 days

0

10

Simplicity 1709671SM

GEAR, Worm

$225.99

$

Usually ships in 2-12 days

0

11

Simplicity 2828712SM

KEY, 1/4 x 1/4 x 5/8

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 1921719SM

CAPSCREW, Hex Hd., 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

13

Simplicity 1921977SM

CAPSCREW, Hex Hd. 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 9

0

14

Simplicity 1917356SM

LOCKWASHER, 5/16 Regular
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 2801652SM

PLUG, Pipe, Sq. Solid Hd. 1/4 NPT

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 1709683SM

BRACKET, Support

$146.99

$

Usually ships in 2-12 days

0

18

Simplicity 1709672SM

RING, Retaining

$7.99

$

Usually ships in 2-12 days

0

19

Simplicity 1709673SM

SEAL, Oil, 1.0 ID x 2.0 OD

$38.99

$

Usually ships in 2-12 days

0

20

Simplicity 1709674SM

RING, Retaining

$3.99

$

Usually ships in 2-12 days

0

21

Simplicity 2801825SM

BUSHING, 1/4 male x 1/8 female

$8.99

$

Usually ships in 2-12 days

0

22

Simplicity 1709675SM

RACE, Bearing

$28.99

$

Usually ships in 2-12 days

0

23

Simplicity 1709676SM

RACE, Bearing, 1-31/32 OD x 3/8 W

$34.99

$

Usually ships in 2-12 days

0

24

Simplicity 1709835

VENT, Relief

$

$

Not available
