1692243 - Simplicity 47" Snow Thrower Attachment 47" Snowthrower - Handcrank Assembly Parts Diagram

47" Snow Thrower Attachment

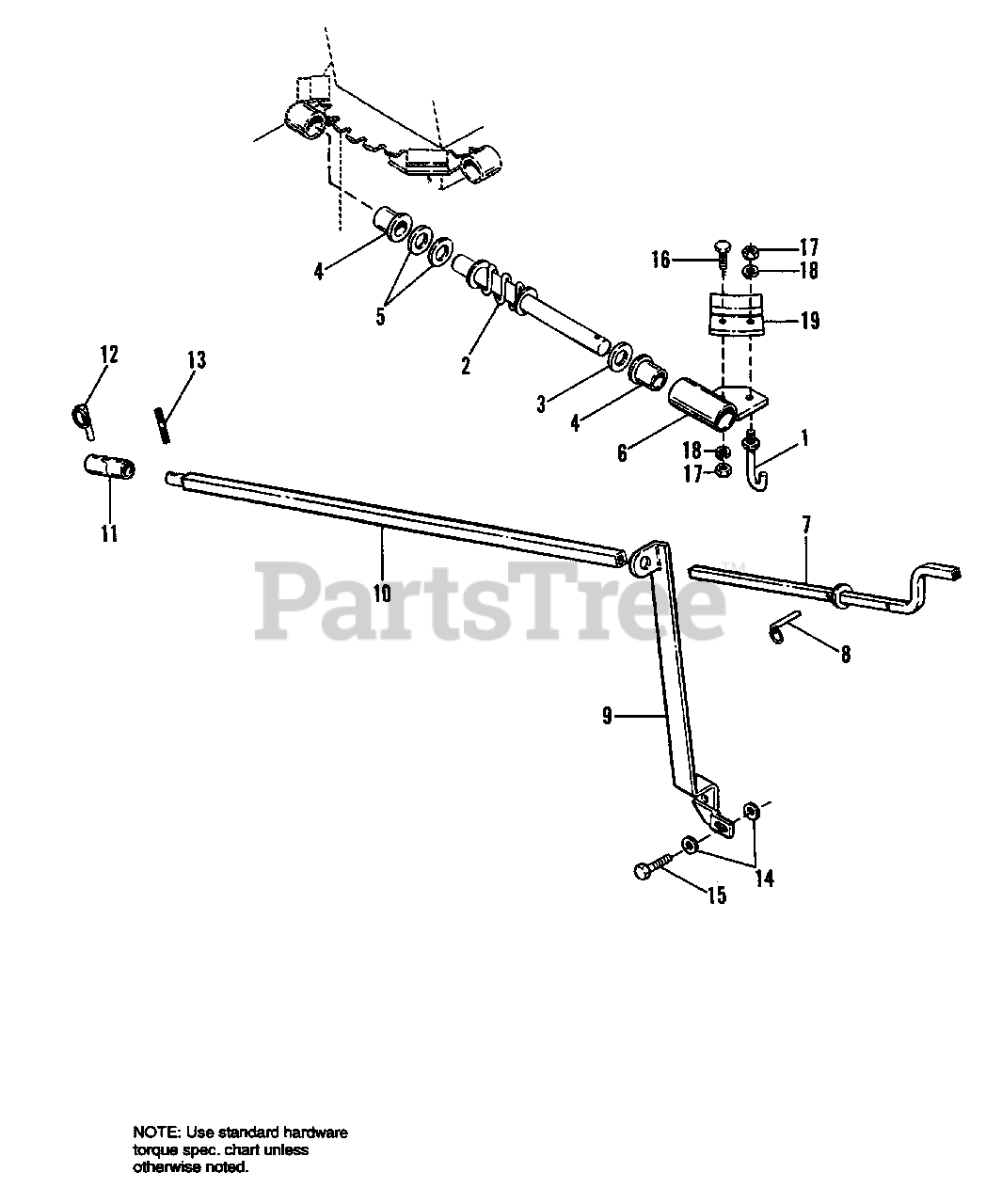

47" Snowthrower - Handcrank Assembly Parts Diagram

  • Title

1

Simplicity 1709646SM

HOOK

$

$

Not available

2

Simplicity 1709647SM

WIRE, Coil Assembly

$87.99

$

Usually ships in 2-12 days

0

3

Simplicity 1960010SM

WASHER, 25/32 x 1-3/8 x .075

$15.99

$

Usually ships in 2-12 days

0

4

Simplicity 1709648SM

BUSHING, Turn collar

$19.99

$

Usually ships in 2-12 days

0

5

Simplicity 1960528SM

WASHER, 3/4 flat

$7.49

$

Usually ships in 2-12 days

0

6

Simplicity 1709649SM

BRACKET, Wire coil support

$59.99

$

Usually ships in 2-12 days

0

7

Simplicity 1709650SM

HANDLE, Crank ASSEMBLY

$93.99

$

Usually ships in 2-12 days

0

8

Simplicity 1709651SM

PIN, Detent ring 3/16 x 1

$11.99

$

Usually ships in 2-12 days

0

9

Simplicity 1709652SM

BRACKET, Handcrank pivot

$273.99

$

Usually ships in 2-12 days

0

10

Simplicity 1709653SM

TUBE, Crank ASSEMBLY

$64.99

$

Usually ships in 2-12 days

0

11

Simplicity 1709654SM

JOINT, Universal, w/holes

$86.99

$

Usually ships in 2-12 days

0

12

Simplicity 1709655SM

PIN, Detent ring, 5/16 x 1-1/8
(Superseded to 1738771YP)

$34.99

$

Usually ships in 2-12 days

0

13

Simplicity 2815523SM

PIN, Roll, 5/16 x 1-1/2

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 1924940SM

WASHER, 13/32 x 7/8 x 5/64
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 1921969SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, Qty 7

0

16

Simplicity 1921960SM

CAPSCREW, Hex Hd., 1/4-20 x 1

$3.49

$

In Stock, only 2 left!

0

17

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

18

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

19

Snapper 1709642SM

RETAINER, Chute

$25.99

$

Usually ships in 2-12 days

0
