1692243 - Simplicity 47" Snow Thrower Attachment 47" Snowthrower - Hitch Assembly Parts Diagram

47" Snow Thrower Attachment

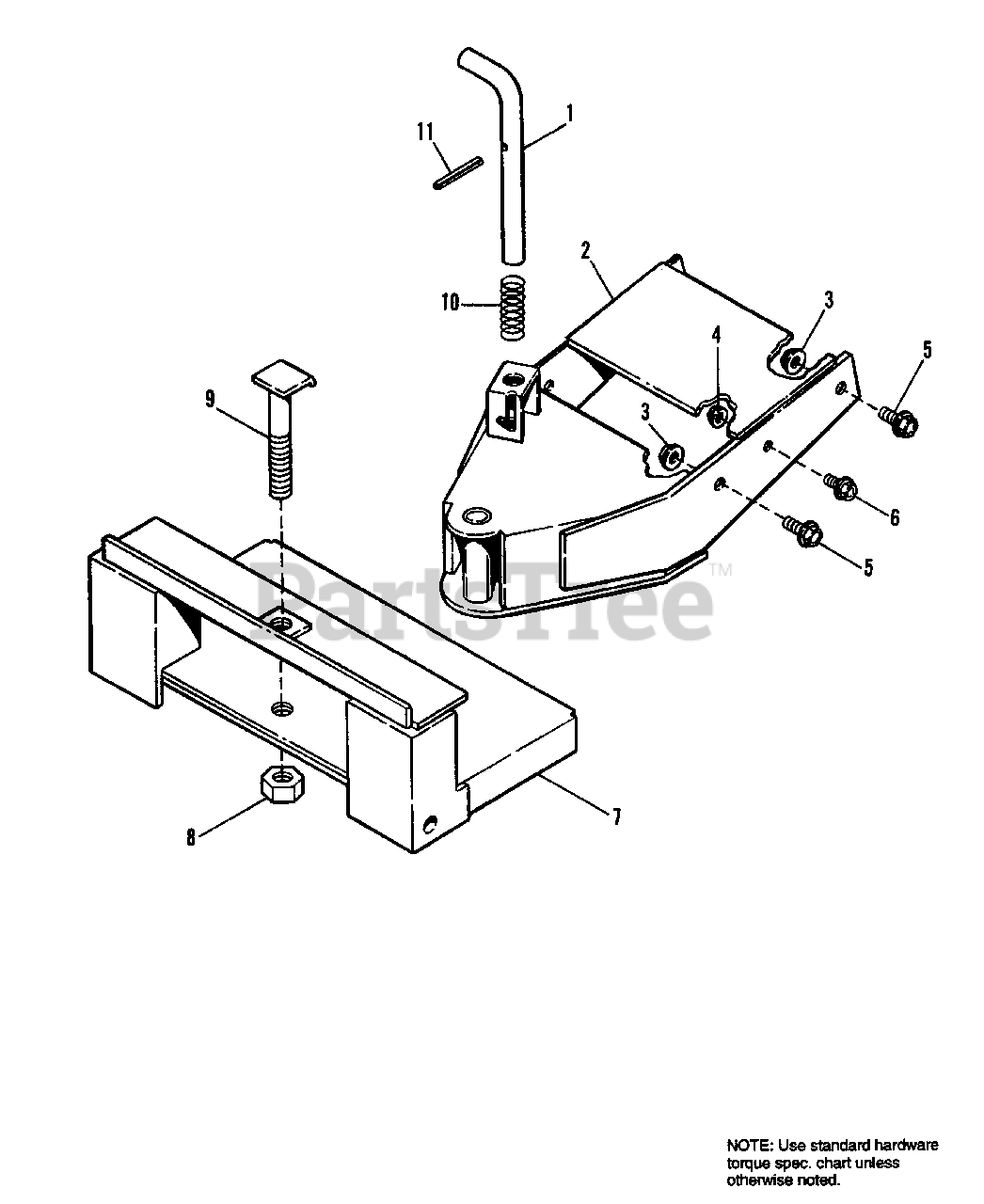

47" Snowthrower - Hitch Assembly Parts Diagram

  • Title

1

Simplicity 1709694

PIN, Lock

$

$

Not available

2

Simplicity 1709691

FRAME-A

$

$

Not available

3

Simplicity 1935041SM

NUT, Hex Flange Whizlock 7/16-14

$1.99

$

Usually ships in 2-12 days

0

4

Simplicity 1928352SM

NUT, Hex Flange Whizlock, 5/16-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 9

0

5

Simplicity 1960043SM

CAPSCREW, Hex Whizlock, 7/16-14 x 1

$7.49

$

Usually ships in 2-12 days

0

6

Simplicity 1934654SM

CAPSCREW, Hex Whizlock, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, Qty 13

0

7

Simplicity 1709692

PLATE, Pivot

$

$

Not available

8

Simplicity 1913160SM

NUT, Hex, 3/4-10

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 1709693

STUD

$

$

Not available

10

Simplicity 1709695

SPRING

$

$

Not available

11

Simplicity 2818112SM

PIN, Spring 1/4 x 2-3/4

$3.49

$

Usually ships in 2-12 days

0
