1692244 - Simplicity Snow Thrower Hitch & Lift Kit Hitch & Lift Group (1103I01) Parts Diagram

Snow Thrower Hitch & Lift Kit

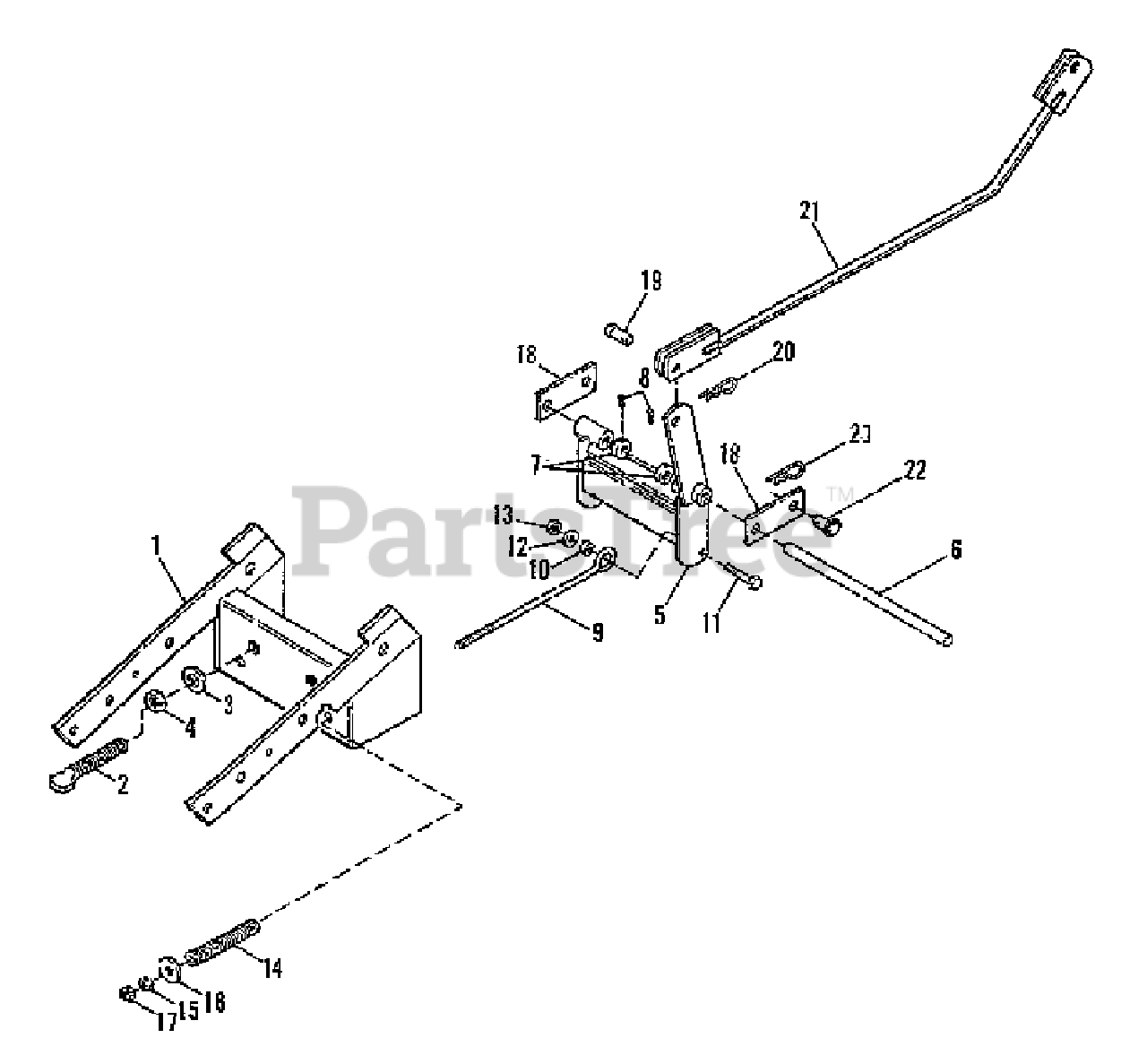

Hitch & Lift Group (1103I01) Parts Diagram

  • Title

1

Simplicity 1703635SM

HITCH ASSEMBLY, Blower
(Superseded to 1703635ASM)

$216.99

$

Usually ships in 2-12 days

0

2

Simplicity 1676959SM

STUD

$25.99

$

Usually ships in 2-12 days

0

3

Simplicity 1919332SM

LOCKWASHER, 3/4 Standard

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 1913160SM

NUT, Hex, 3/4-10

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1675502SM

HITCH ASSEMBLY

$

$

Not available

6

Simplicity 1708999SM

SHAFT, Inner

$38.99

$

Usually ships in 2-12 days

0

7

Simplicity 1729258SM

SET COLLAR
(Superseded to 5010477YP)

$8.99

$

Usually ships in 2-12 days

0

8

Simplicity 1928721SM

SET SCREW, Square Head, 5/16-18 x 1/2

$4.99

$

In Stock, Qty 13

0

9

Simplicity 1675523SM

EYEBOLT

$19.99

$

Usually ships in 2-12 days

0

10

Simplicity 2175647SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

11

Simplicity 1922664SM

CAPSCREW, Hex Head, 5/8-11 x 2

$4.49

$

Usually ships in 2-12 days

0

12

Simplicity 2833757

WASHER, Plain, 41/64 x 1-3/4

$

$

Not available

13

Simplicity 1923353SM

NUT, Hex, Centerlock, 5/8-11

$2.49

$

Usually ships in 2-12 days

0

14

Simplicity 1675524SM

SPRING, Compression

$20.99

$

Usually ships in 2-12 days

0

15

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

16

Simplicity 1960071SM

WASHER, 3/8 x 1-3/4 x 1/4

$8.49

$

In Stock, only 2 left!

0

17

Simplicity 1917421SM

NUT, Hex, Jam, 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

18

Simplicity 1675525SM

LINK

$

$

Not available

19

Simplicity 1960038SM

PIN, Clevis

$7.49

$

Usually ships in 2-12 days

0

20

Simplicity 1960033SM

CLIP, Hair Pin, 1/8 x 2-9/16

$3.49

$

In Stock, only 3 left!

0

21

Snapper 1675390ASM

LIFT ROD ASSEMBLY

$

$

Not available

22

Simplicity 1703583

PIN ASSEMBLY

$

$

Not available
