1692418 - Simplicity Broadmoor Lawn Tractor, 15hp Gear Transaxle Parts Diagram

Broadmoor Lawn Tractor, 15hp

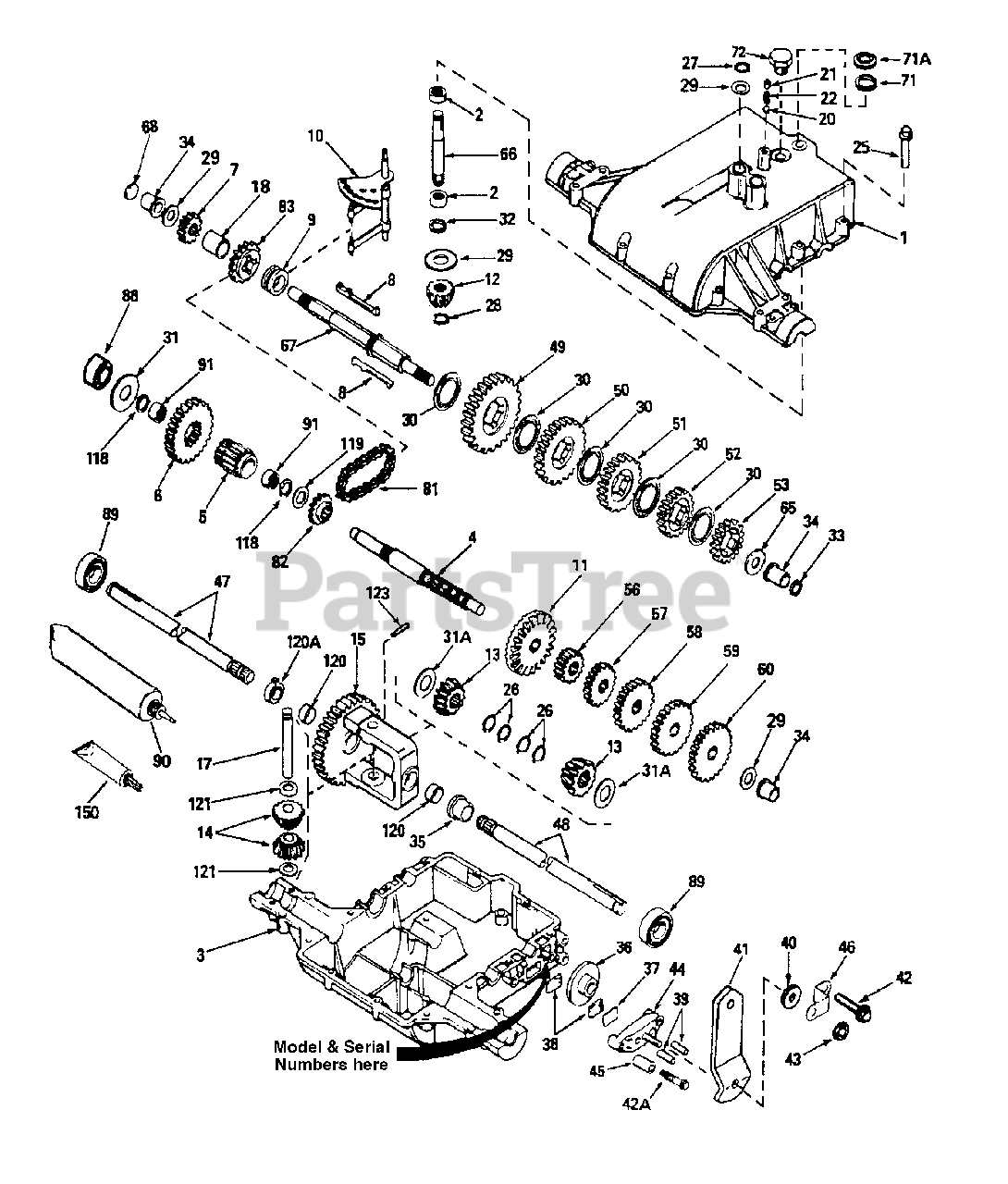

Gear Transaxle Parts Diagram

  • Title

1

Simplicity 772082A

Transaxle Cover

Note: See your authorized Peerless/Tecumseh distributor for service parts.

$

$

Not available

2

Simplicity 780122

Needle Bearing

$

$

Not available

3

Simplicity 770071B

Transaxle Case

$

$

Not available

4

Simplicity 776204

Countershaft

$

$

Not available

5

Simplicity 778138

Output Pinion

$

$

Not available

6

Simplicity 778139

Output Gear (35 teeth)

$

$

Not available

7

Simplicity 778136

Spur Gear (15 teeth)

$

$

Not available

8

Simplicity 792089A

Shift Key

$

$

Not available

9

Simplicity 784266

Shift Collar

$

$

Not available

10

Simplicity 784290

Shift Fork

$62.99

$

Usually ships in 2-12 days

0

11

Simplicity 778137A

Bevel Gear (42 teeth)

$

$

Not available

12

Simplicity 778113A

Input Bevel Pinion

$

$

Not available

13

Simplicity 778327

Bevel Gear (16 teeth)

Note: (Incl. 14)

$

$

Not available

14

Simplicity 778327

Bevel Pinion (16 teeth)

Note: (Incl. 13)

$

$

Not available

15

Simplicity 778175

Differential Gear Assy.

Note: (Incl. 120)

$

$

Not available

17

Simplicity 786034

Drive Pin

$

$

Not available

18

Simplicity 786074

Spacer

$

$

Not available

20

Simplicity 792077

Ball, 5/16" dia.

$

$

Not available

21

Simplicity 792078

Set Screw, 3/8-16 x 3/8

$

$

Not available

22

Simplicity 792079

Spring

$

$

Not available

25

Simplicity 792073

Screw, 1/4-20 x 1-1/4

$67.99

$

In Stock, only 2 left!

0

26

Simplicity 792125

Retaining Ring

$

$

Not available

27

Simplicity 792035

Retaining Ring

$

$

Not available

28

Simplicity 788040

Retaining Ring

$

$

Not available

29

Simplicity 780072

Washer

$

$

Not available

30

Simplicity 780108

Washer

$4.49

$

Usually ships in 2-12 days

0

31

Simplicity 780113

Washer

$

$

Not available

31A

Simplicity 780001

Washer

$

$

Not available

32

Simplicity 788057

"O" Ring

$

$

Not available

33

Simplicity 788051

Square Cut Ring

$

$

Not available

34

Simplicity 780105A

Flanged Bushing

$

$

Not available

35

Simplicity 780118A

Flanged Bushing

$

$

Not available

36

Simplicity 790003

Brake Disk

$

$

Not available

37

Simplicity 790007

Brake Pad Plate

$

$

Not available

38

Simplicity 799021

Brake Pad (Pkg of 2)

$

$

Not available

39

Simplicity 786026

Dowel Pin

$

$

Not available

40

Simplicity 792076A

Washer

$

$

Not available

41

Simplicity 790056

Brake Lever

$

$

Not available

42

Simplicity 792073

Screw, 1/4-20 x 1-1/4

$67.99

$

In Stock, only 2 left!

0

42A

Simplicity 792085A

Screw, 1/4-20 x 2-1/4

$

$

Not available

43

Simplicity 792075

Locknut, 5/16-24

$

$

Not available

44

Simplicity 790025

Brake Pad Holder

$27.99

$

Usually ships in 2-12 days

0

45

Simplicity 786066

Spacer

$

$

Not available

46

Simplicity 786086

Brake Lever Bracket

$

$

Not available

47

Simplicity 774644

Axle (12-1/2" long)

$

$

Not available

48

Simplicity 774891

Axle (14-3/4" long)

$

$

Not available

49

Simplicity 778146A

Spur Gear (37 teeth)

$

$

Not available

50

Simplicity 778124A

Spur Gear (30 teeth)

$

$

Not available

51

Simplicity 778123A

Spur Gear (25 teeth)

$

$

Not available

52

Simplicity 778122A

Spur Gear (22 teeth)

$

$

Not available

53

Simplicity 778121A

Spur Gear (20 teeth)

$

$

Not available

56

Simplicity 778145

Spur Gear (12 teeth)

$

$

Not available

57

Simplicity 778126A

Spur Gear (20 teeth)

$

$

Not available

58

Simplicity 778127A

Spur Gear (25 teeth)

$

$

Not available

59

Simplicity 778128A

Spur Gear (28 teeth)

$

$

Not available

60

Simplicity 778129A

Spur Gear (30 teeth)

$

$

Not available

65

Simplicity 780109

Washer

$

$

Not available

66

Simplicity 776135

Input Shaft

$

$

Not available

67

Simplicity 776252

Shifter & Brake Shaft

$

$

Not available

68

Simplicity 786116

Disk

$1.99

$

Usually ships in 2-12 days

0

71

Simplicity 788069

Square Cut Ring

$

$

Not available

71A

Simplicity 792145

Pushnut, 1/2"

$

$

Not available

72

Simplicity 792074

Threaded Plug

$

$

Not available

81

Simplicity 786062A

Roller Chain (No. 40 chain, 22 links)

$

$

Not available

82

Simplicity 786061

Sprocket (10 teeth)

$

$

Not available

83

Simplicity 786060

Sprocket (14 teeth)

$

$

Not available

88

Simplicity 780121

Ball Bearing

$

$

Not available

89

Simplicity 780119

Ball Bearing

$

$

Not available

90

Simplicity 788067B

Grease (32 oz. bottle Bentonite grease)

$

$

Not available

91

Simplicity 780112

Needle Bearing

$

$

Not available

118

Simplicity 788053

Square Cut Ring

$

$

Not available

119

Simplicity 780114

Washer

$

$

Not available

120

Simplicity 780064

Bushing

$

$

Not available

120A

Simplicity 780120

Bushing

$

$

Not available

121

Simplicity 780065

Washer

$

$

Not available

123

Simplicity 792040

Roll Pin
(Superseded to 795259)

$33.99

$

Usually ships in 2-12 days

0

150

Simplicity 510334

Gasket Eliminator (Loctite #515)

$

$

Not available
