1692714 - Simplicity 38" Turbo Collector for Broadmoor, 1600 Series, 2600 Series Turbo Mounting Group - 38" Broadmoor/1600/2600 Series Parts Diagram

38" Turbo Collector for Broadmoor, 1600 Series, 2600 Series

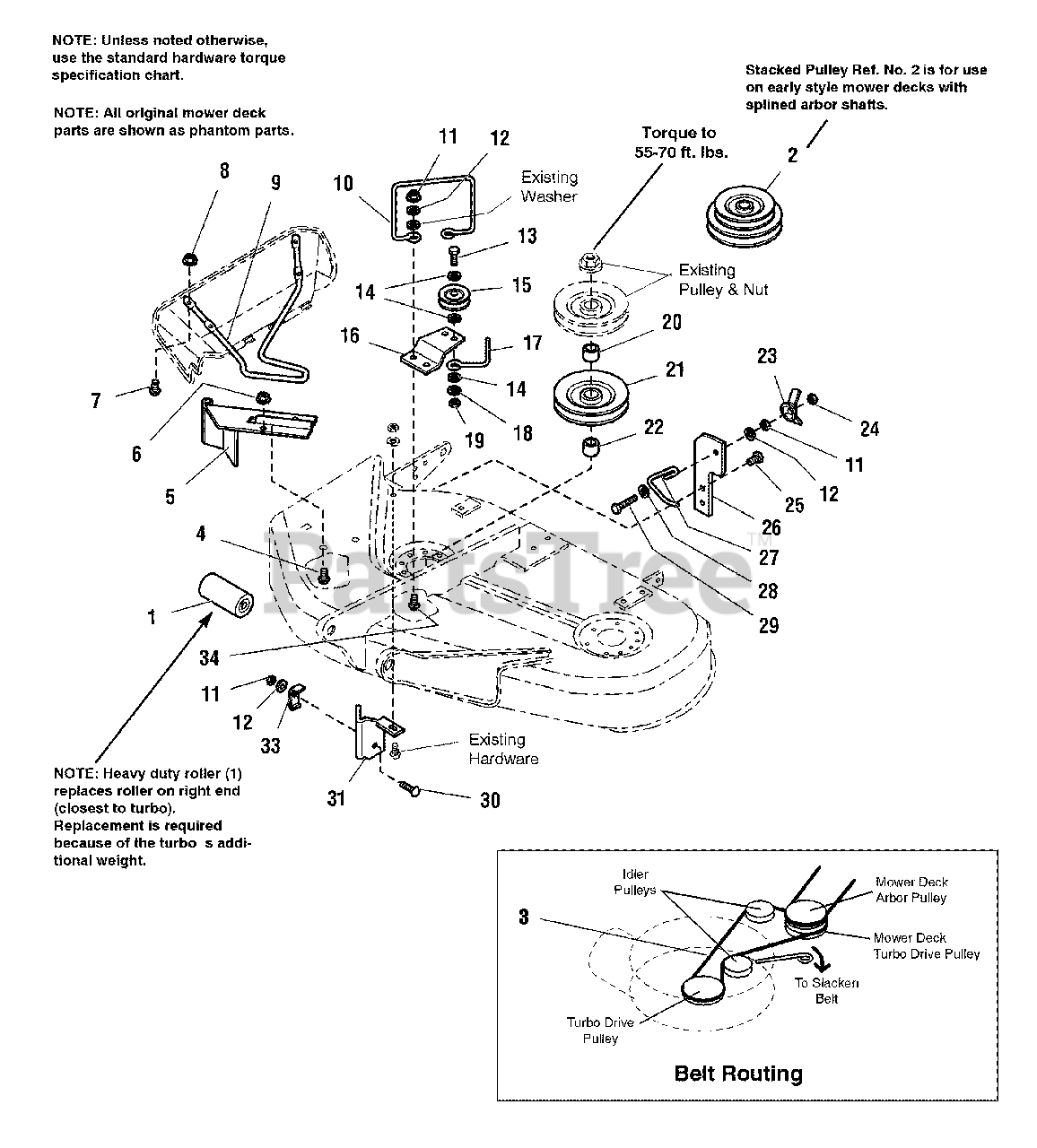

Turbo Mounting Group - 38" Broadmoor/1600/2600 Series Parts Diagram

  • Title

1

Simplicity 1713540SM

ROLLER

$43.99

$

Usually ships in 2-12 days

0

2

Simplicity 1704769ASM

STACKED PULLEY ASSY

Note: (Early Production 1692714 Only)

$99.99

$

Usually ships in 2-12 days

0

3

Simplicity 1705141SM

V-BELT

$27.99

$

In Stock, only 4 left!

0

4

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1722546

PIVOT ASSY.
(Superseded to 1722546ASM)

$216.99

$

Usually ships in 2-12 days

0

6

Simplicity 1931277SM

NUT, Hex, Flange, Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

7

Simplicity 1960404SM

SCREW, Truss Hd., #10-24 x 3/4

$3.99

$

In Stock, only 4 left!

0

8

Simplicity 1933896SM

NUT, Nylock, #10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

9

Simplicity 1718295ASM

ROD, Deflector

$112.99

$

Usually ships in 2-12 days

0

10

Simplicity 1704789SM

BELT GUIDE, Turbo

$14.99

$

Usually ships in 2-12 days

0

11

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1921971SM

CAPSCREW, 3/8-16 x 1-1/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 15

0

14

Simplicity 1924940SM

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 1714817SM

IDLER PULLEY
(Superseded to 703056)

$42.99

$

In Stock, Qty 6

0

16

Simplicity 1704768ASM

BRACKET, Idler

$13.99

$

Usually ships in 2-12 days

0

17

Simplicity 2172845SM

BELT STOP

$11.99

$

Usually ships in 2-12 days

0

18

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

19

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

20

Simplicity 1713621SM

SPACER, Splined, 1.590" Long

$19.99

$

Usually ships in 2-12 days

0

21

Simplicity 1713091SM

PULLEY ASSY.

$23.99

$

In Stock, only 1 left!

0

22

Simplicity 1713624SM

SPACER, Short

$15.99

$

Usually ships in 2-12 days

0

23

Simplicity 1679163SM

NUT, Wing Assy, 5/16

$69.99

$

In Stock, only 1 left!

0

24

Simplicity 1923362SM

NUT, Hex, Center Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 11

0

25

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 15

0

26

Simplicity 1724370

BRACE,
(Superseded to 1724370ASM)

$11.99

$

Usually ships in 2-12 days

0

27

Simplicity 1705064SM

SPRING LATCH

$44.99

$

Usually ships in 2-12 days

0

28

Simplicity 1919381SM

WASHER, Flat
(Superseded to 703298)

$4.49

$

In Stock, Qty 13

0

29

Simplicity 1960318SM

CAPSCREW, Hex Hd, 5/16-18 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

30

Simplicity 1960223SM

CARRIAGE BOLT, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, only 1 left!

0

31

Simplicity 1704881ASM

BRACKET ASSY.

$62.99

$

Usually ships in 2-12 days

0

33

Simplicity 1705308ASM

BRACKET, "L"

$33.99

$

Usually ships in 2-12 days

0

34

Simplicity 1930600SM

SCREW, Taptite, 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 20+

0
