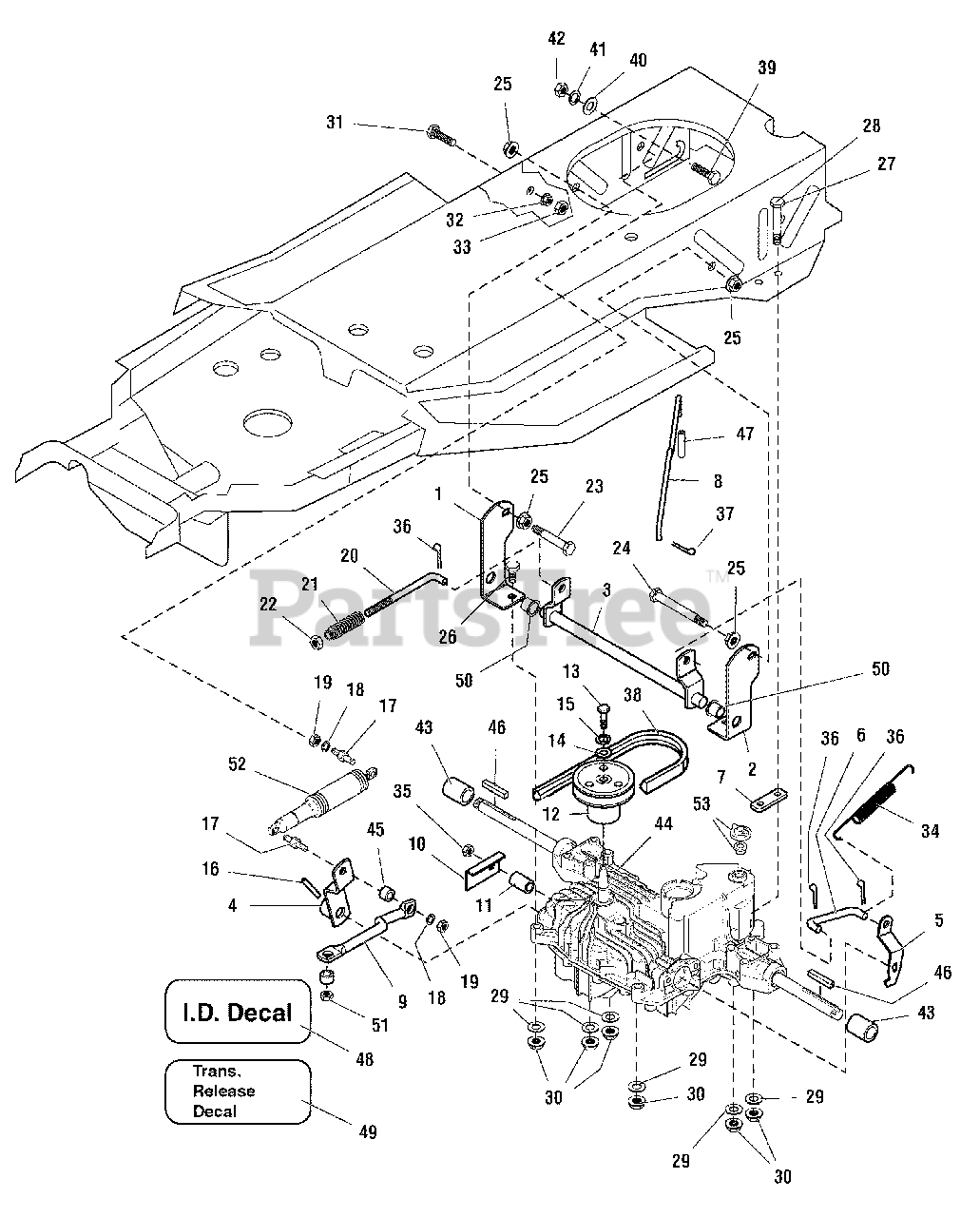

1692772 - Simplicity Broadmoor Lawn Tractor, 14hp Transmission Group - Replacement Kit Tuff Torq K56 (1686786) Parts Diagram

Broadmoor Lawn Tractor, 14hp

Transmission Group - Replacement Kit Tuff Torq K56 (1686786) Parts Diagram

  • Title

1

Simplicity 1720208SM

STRAP, Torque - RH
(Superseded to 1720208ASM)

$16.99

$

Usually ships in 2-12 days

0

2

Simplicity 1720209SM

STRAP, Torque - LH
(Superseded to 1720209ASM)

$43.99

$

Usually ships in 2-12 days

0

3

Simplicity 1720210SM

CROSS SHAFT ASSEMBLY

$78.99

$

Usually ships in 2-12 days

0

4

Simplicity 1720214

CONTROL ARM ASSEMBLY
(Superseded to 1720214SM)

$115.99

$

Usually ships in 2-12 days

0

5

Simplicity 1720217SM

BRAKE ARM

$

$

Not available

6

Simplicity 1720216SM

LINK, Brake

$21.99

$

Usually ships in 2-12 days

0

7

Simplicity 1720218SM

SPACER, Transmission
(Superseded to 1720218ASM)

$11.99

$

Usually ships in 2-12 days

0

8

Simplicity 1720219SM

ROD, Dump Valve

$34.99

$

Usually ships in 2-12 days

0

9

Simplicity 1720220SM

ROD, Control

$50.99

$

Usually ships in 2-12 days

0

10

Simplicity 1720318SM

BRACKET, L

$

$

Not available

11

Simplicity 1702665SM

SPACER

$

$

Not available

12

Simplicity 1719902SM

PULLEY ASSEMBLY

$110.99

$

Usually ships in 2-12 days

0

13

Simplicity 1960613SM

CAPSCREW, M06 X 1.00 X 30

$4.99

$

Usually ships in 2-12 days

0

14

Simplicity 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 1960588SM

PIN, Spring

$4.49

$

In Stock, only 2 left!

0

17

Simplicity 1717685SM

STUD 5/16-18 X 57/64

$46.99

$

Usually ships in 2-12 days

0

18

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

19

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 6

0

20

Simplicity 1655811SM

ROD, Bolt

$27.99

$

In Stock, Qty 9

0

21

Simplicity 1708360SM

SPRING, Brake

$14.99

$

In Stock, only 4 left!

0

22

Simplicity 1919439SM

NUT, Nylock, 3/8-16
(Superseded to 703117)

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 1923141SM

CAPSCREW, 5/16-18 X 2-3/4
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

24

Simplicity 1960272SM

CAPSCREW, 5/16-18 X 5-1/2

$17.99

$

Usually ships in 2-12 days

0

25

Simplicity 1931277SM

NUT, Whiz Flange Lock, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

26

Simplicity 1921221SM

CAPSCREW, 5/16-18 X 1.50
(Superseded to 703906)

$4.99

$

In Stock, only 3 left!

0

27

Simplicity 1923141SM

CAPSCREW 5/16-18 X 2.75
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

28

Simplicity 1926106SM

CAPSCREW 5/16-18 X 3.25
(Superseded to 5025011X26FS)

$2.99

$

Usually ships in 2-12 days

0

29

Simplicity 1924874SM

WASHER, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1935048SM

NUT, Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 1921333SM

CAPSCREW, 5/16-18 X 1
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 14

0

32

Simplicity 1931277SM

NUT, Whiz Flange Lock, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

33

Simplicity 1923362SM

NUT, Center Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

34

Simplicity 2159106SM

SPRING
(Superseded to 703144)

$6.49

$

In Stock, only 2 left!

0

35

Simplicity 1960251SM

NUT, Center Lock Jam, 3/8-16
(Superseded to 703230)

$5.49

$

In Stock, Qty 9

0

36

Simplicity 1918447SM

PIN, Cotter, 3/32 - 3/4
(Superseded to 703312)

$4.49

$

In Stock, Qty 11

0

37

Simplicity 1923360SM

PIN, Cotter, 1/16 - 3/4
(Superseded to 703892)

$3.49

$

In Stock, only 1 left!

0

38

Simplicity 1723391SM

V-BELT

$

$

Not available

39

Simplicity 1931315SM

CARRIAGE BOLT, 1/4-20 X 1/2
(Superseded to 703978)

$3.99

$

In Stock, Qty 18

0

40

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

41

Simplicity 1916964SM

LOCKWASHER 1/4
(Superseded to 704133)

$3.99

$

Usually ships in 2-12 days

0

42

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 17

0

43

Simplicity 1717451SM

SPACER, Axle

$13.99

$

Usually ships in 2-12 days

0

44

Simplicity 1686786SM

TRANSMISSION ASSEMBLY, Tuff Troq K56

$2165.99

$

Usually ships in 2-12 days

0

45

Simplicity 1675481SM

SPACER

$3.99

$

Usually ships in 2-12 days

0

46

Simplicity 1729279SM

KEY
(Superseded to 703889)

$4.49

$

In Stock, Qty 12

0

47

Simplicity 1704575SM

COVER, Rod

$3.99

$

Usually ships in 2-12 days

0

48

Simplicity 1720542

DECAL, Serial Plate Addendum

$

$

Not available

49

Simplicity 1720543SM

DECAL, Transmission Release

$30.99

$

Usually ships in 2-12 days

0

50

Simplicity 1676148SM

BUSHING

$5.99

$

In Stock, Qty 20+

0

51

Simplicity 1919438SM

NUT, Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

52

Simplicity 1718039SM

SHOCK ABSORBER

$255.99

$

Usually ships in 2-12 days

0

53

Simplicity 1718052SM

VENT ASSEMBLY

$28.99

$

Usually ships in 2-12 days

0
