1692856 - Simplicity Power Steering Kit for Sovereign Tractors Power Steering Kit - Sovereign / 900 / 2900 Series Parts Diagram

Power Steering Kit for Sovereign Tractors

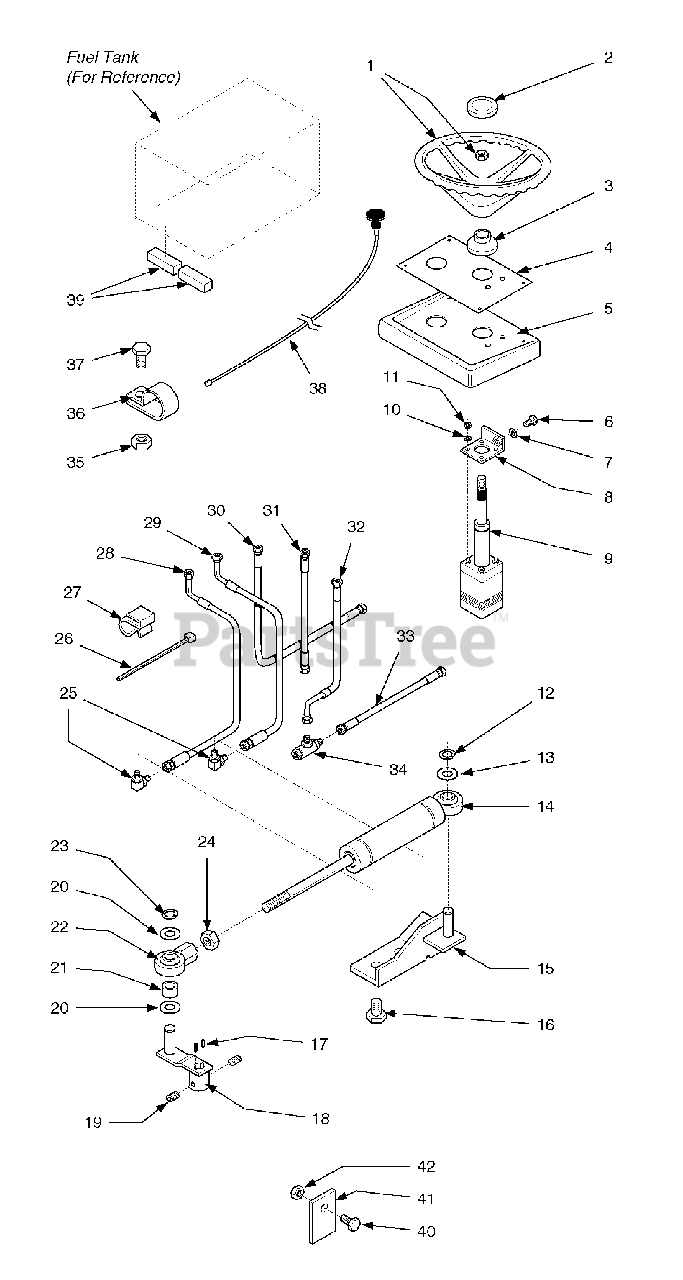

Power Steering Kit - Sovereign / 900 / 2900 Series Parts Diagram

  • Title

1

Simplicity 1676468SM

Steering Wheel Assembly

$

$

Not available

2

Simplicity 1657017SM

Cap, Steering Wheel

$9.49

$

Usually ships in 2-12 days

0

3

Simplicity 1676418SM

Boot, Steering Stem

$6.99

$

In Stock, only 1 left!

0

4

Simplicity 1715549SM

Decal, Dash

$69.99

$

Usually ships in 2-12 days

0

5

Simplicity 1715547SM

Instrument Panel
(Superseded to 1715547ASM)

$78.99

$

Usually ships in 2-12 days

0

6

Simplicity 1960558SM

Hex Hd. Cap Screw, M12

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 1909589SM

Lockwasher, 1/2

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 1716502SM

Mounting Plate

$22.99

$

Usually ships in 2-12 days

0

9

Simplicity 1673686SM

Hydrostatic Motor, Steering Unit

$928.99

$

Usually ships in 2-12 days

0

10

Simplicity 1917356SM

Lockwasher, 3/8
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 2820263SM

Nut, Hex 3/8 X 18 M12 X 1.75 X 20mm
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 2827103SM

Retaining Ring, 5/8"

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1960020SM

Washer

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1686926SM

Cylinder, Power Steering**

$1225.99

$

Usually ships in 2-12 days

0

15

Simplicity 1715513SM

Bracket Assembly, Cylinder
(Superseded to 1715513ASM)

$87.99

$

In Stock, only 1 left!

0

16

Simplicity 1923683SM

Screw, Hex Washer TapTite, 3/8 x 16 x 3/4"
(Superseded to 703950)

$5.49

$

In Stock, Qty 6

0

17

Simplicity 2157427SM

Key, Square

$5.49

$

In Stock, only 1 left!

0

18

Simplicity 1716859ASM

Arm Assembly

$79.99

$

Usually ships in 2-12 days

0

19

Simplicity 1960620SM

Set Screw, Sqr. Hd.

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 1960114SM

Washer
(Superseded to 703151)

$3.49

$

In Stock, Qty 16

0

21

Simplicity 1679556SM

Spacer
(Superseded to 703154)

$23.99

$

In Stock, only 1 left!

0

22

Simplicity 1679538ASM

Rod End/Ball Joint Assembly

$82.99

$

In Stock, only 1 left!

0

23

Simplicity 2827732SM

Retaining Ring, 3/4"
(Superseded to 703979)

$4.49

$

In Stock, only 2 left!

0

24

Simplicity 1922015SM

Nut, Hex 3/4 x 16

$3.49

$

In Stock, only 1 left!

0

25

Simplicity 2822523SM

Fitting, Hydraulic 90° 5/8 x 18 - 5/8 x 18

$14.99

$

Usually ships in 2-12 days

0

26

Simplicity 1701011SM

Tie, Self-Locking

$5.49

$

In Stock, only 2 left!

0

27

Simplicity 2172434SM

Clip, Wire

$4.99

$

In Stock, only 1 left!

0

28

Simplicity 1715497SM

Hose Assembly, Hydraulic (Steer RT to Cylinder)

$95.99

$

Usually ships in 2-12 days

0

29

Simplicity 1715498SM

Hose Assembly, Hydraulic (Steer LT to Cylinder)

$74.99

$

Usually ships in 2-12 days

0

30

Simplicity 1715496SM

Hose Assembly, Hydraulic (Steer IN to Pump)

$106.99

$

Usually ships in 2-12 days

0

31

Simplicity 1715499SM

Hose Assembly, Hydraulic (Steer AUX to Lift)

$43.99

$

Usually ships in 2-12 days

0

32

Simplicity 1719244SM

Hose Assembly, Hydraulic (Steer OUT to Tee Fitting)

$39.99

$

Usually ships in 2-12 days

0

33

Simplicity 1715500SM

Hose Assembly, Hydraulic (Return "T" to Pump)

$88.99

$

Usually ships in 2-12 days

0

34

Simplicity 1715523SM

Fitting, Hydraulic Tee

$9.99

$

Usually ships in 2-12 days

0

35

Simplicity 1923358SM

Nut, Hex Ctr Lock 1/4 x 20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

36

Simplicity 1676527SM

Clamp, Hose

$4.49

$

Usually ships in 2-12 days

0

37

Simplicity 1921960SM

Screw, Hex Hd Cap, 1/4 x 20 x 1"

$3.49

$

In Stock, only 2 left!

0

38

Simplicity 1708493SM

Choke, Control

$100.99

$

Usually ships in 2-12 days

0

39

Simplicity 1713337SM

Pad, Neoprene

$16.99

$

Usually ships in 2-12 days

0

40

Simplicity 1921210SM

Screw, Hex Hd Cap, 3/8 x 16 x 1"
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

41

Simplicity 1716863SM

Plate, Upstop

$

$

Not available

42

Simplicity 1930645SM

Nut, Hex Flange Lock, 3/8 x 16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0
