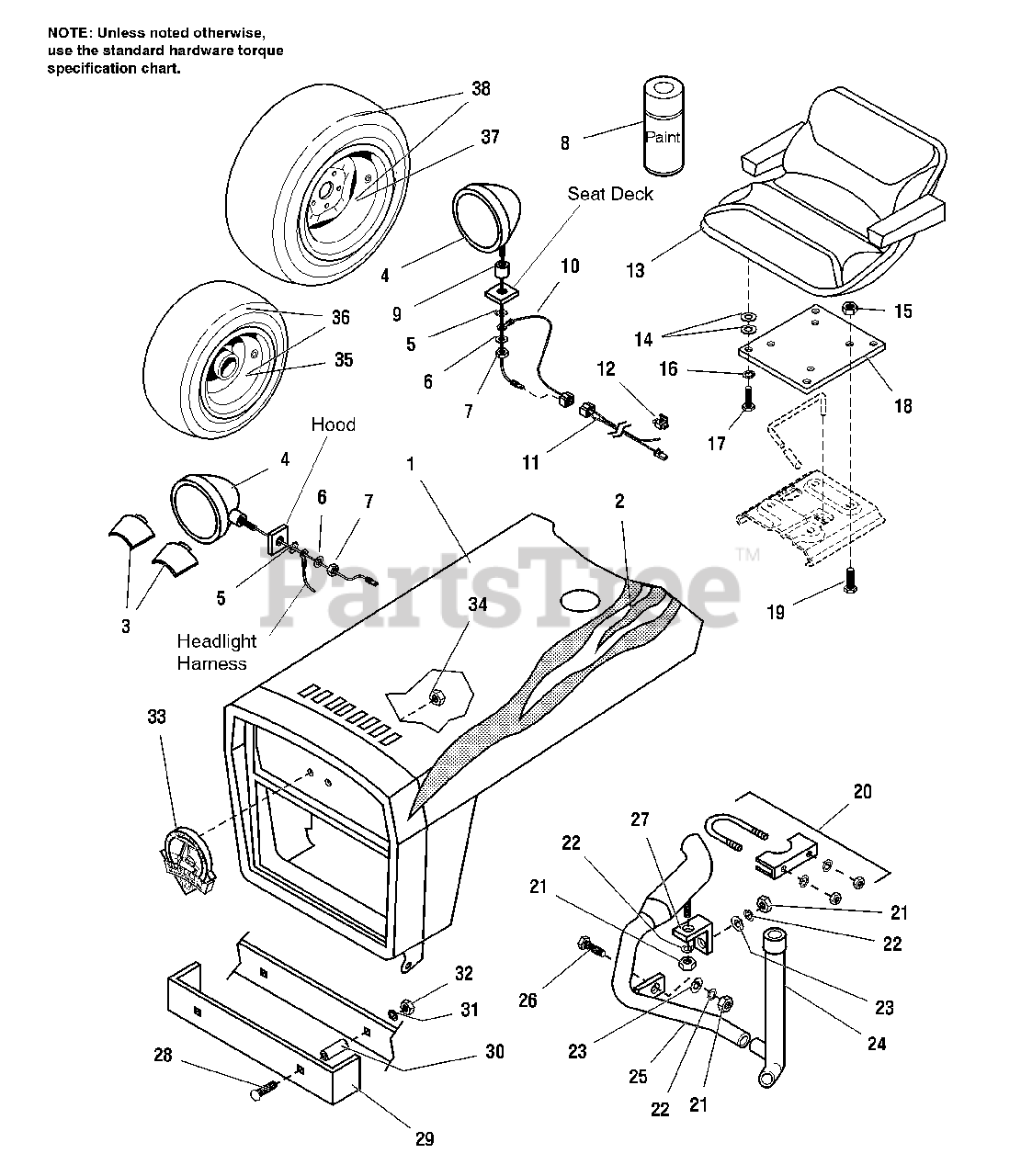

1692889 - Simplicity Sovereign Garden Tractor, 18hp 75th Anniversary Specialty Parts Parts Diagram

Sovereign Garden Tractor, 18hp

75th Anniversary Specialty Parts Parts Diagram

  • Title

1

Simplicity 1717234SM

HOOD ASSEMBLY.

$

$

Not available

2

Simplicity 1717256

DECAL, R.H. Hood, Flame

$

$

Not available

2

Simplicity 1717257

DECAL, L.H. Hood, Flame

$

$

Not available

2

Simplicity 1717258

DECAL, R.H. Fender

Note: (Not Shown)

$

$

Not available

2

Simplicity 1717259

DECAL, L.H. Fender

Note: (Not Shown)

$

$

Not available

2

Simplicity 1717260

DECAL, Mower

$

$

Not available

2

Simplicity 1717412

DECAL, Rear Seat Deck, "Simplicity"

$

$

Not available

3

Simplicity 1717233

VISOR SET

$

$

Not available

4

Simplicity 1717401

HEADLIGHT-REAR WORKLIGHT ASSEMBLY

$

$

Not available

5

Simplicity 2820427SM

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

8

Simplicity 1685790

PAINT, Single Can, 13 oz. Spray Can, Blue

$

$

Not available

8

Simplicity 1685791

PAINT, Case of 12 Cans, 13 oz. Spray Can, Blue

$

$

Not available

9

Simplicity 1667812SM

SPACER

$5.99

$

In Stock, Qty 6

0

10

Simplicity 1717400

WIRE ASSEMBLY, Ground

$

$

Not available

11

Simplicity 1717242

WIRE ASSEMBLY, Work Light

$

$

Not available

12

Simplicity 1605751SM

CONNECTOR, Splice

$

$

Not available

13

Simplicity 1717246

SEAT ASSEMBLY, with Armrests

$

$

Not available

14

Simplicity 1960141SM

WASHER, 3/4 x 7/8 x 1/8

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 1927557SM

NUT, Flange, Whizlock, 5/16-18

$4.99

$

In Stock, Qty 5

0

16

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1923325SM

CAPSCREW, Hex Hd, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 20+

0

18

Simplicity 1717114SM

PLATE, Seat Mounting

$

$

Not available

19

Simplicity 1925205SM

CAPSCREW, Hex Hd, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

20

Simplicity 1712286SM

CLAMP ASSEMBLY

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1919326SM

WASHER, 11/32

$4.49

$

In Stock, Qty 18

0

24

Simplicity 1717245

ELBOW PIPE, Exhaust

$

$

Not available

25

Simplicity 1717243

PIPE, Exhaust

$

$

Not available

26

Simplicity 1921333SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

27

Simplicity 1717250

SUPPORT, Exhaust Pipe

$

$

Not available

28

Simplicity 1717239

CARRIAGE BOLT, 3/8-16 x 3

$

$

Not available

29

Simplicity 1716897

BUMPER

$

$

Not available

30

Simplicity 1657242SM

SPACER

$10.99

$

Usually ships in 2-12 days

0

31

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

32

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

33

Simplicity 1717244

MEDALLION, "75th"

$

$

Not available

34

Simplicity 1933896SM

NUT, Hex Nylon Lock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

35

WHEEL ASSEMBLY, Front, Chrome

$

$

Not available

36

Simplicity 1717228

WHEEL & TIRE ASSEMBLY, 16x6.50-8, Chrome, Turf Tread

Note: (Includes Ref. No. 35)

$

$

Not available

37

WHEEL ASSEMBLY, Rear, Chrome

$

$

Not available

38

Simplicity 1717229

WHEEL & TIRE ASSEMBLY, 23x10.50-12, Chrome, Turf Tread

Note: (Includes Ref No. 37)

$

$

Not available
