1692891 - Simplicity Rear PTO, 2000 RPM 2000 RPM Rear PTO Parts Diagram

Rear PTO, 2000 RPM

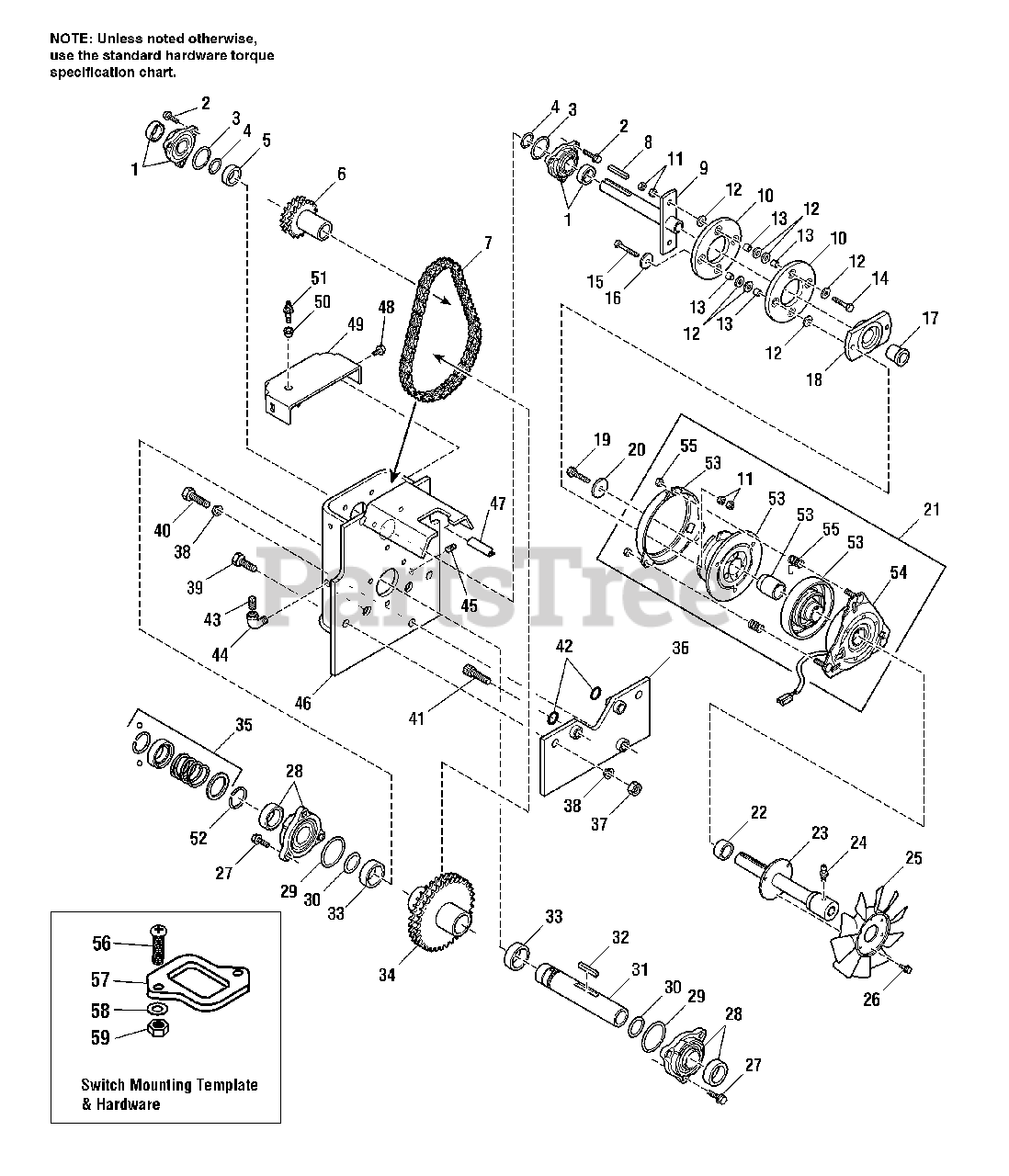

2000 RPM Rear PTO Parts Diagram

  • Title

1

Simplicity 1716434SM

BEARING, Flange

$174.99

$

Usually ships in 2-12 days

0

2

Simplicity 1960373SM

CAPSCREW, Hex Washer Hd, Taptite, 5/16-18 X 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 17

0

3

Simplicity 1717639SM

O-RING, 1.610 ID

$5.49

$

Usually ships in 2-12 days

0

4

Simplicity 1717638SM

O-RING, .989 ID

$

$

Not available

5

Simplicity 1716950SM

SPACER

$20.99

$

Usually ships in 2-12 days

0

6

Simplicity 1716392SM

SPROCKET ASSEMBLY, 19 Tooth

$320.99

$

Usually ships in 2-12 days

0

7

Simplicity 1717599SM

CHAIN, Roller, #40-2 x 46 Pitches

$

$

Not available

8

Simplicity 1718986SM

KEY

$

$

Not available

9

Simplicity 1716401SM

SHAFT & BAR ASSEMBLY

$

$

Not available

10

Simplicity 1676829SM

COUPLING, Flex

$

$

Not available

11

Simplicity 1923362SM

NUT, Hex Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 2156150SM

SPACER

$11.99

$

Usually ships in 2-12 days

0

14

Simplicity 1921977SM

CAPSCREW, Hex Hd, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 5

0

15

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, only 3 left!

0

16

Simplicity 1933468SM

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 1676998SM

BUSHING

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 1676999SM

HUB ASSEMBLY

$119.99

$

Usually ships in 2-12 days

0

19

Simplicity 1921968SM

CAPSCREW, Hex Hd, 3/8-16 x 1-3/8

$4.49

$

In Stock, only 2 left!

0

20

Simplicity 1960534SM

Washer, 3/8

$

$

Not available

21

Simplicity 1709199SM

CLUTCH ASSEMBLY, Electric

Note: (Includes Ref. Nos. 53, 54, & 55)

$921.99

$

Usually ships in 2-12 days

0

22

Simplicity 1686745SM

SPACER

$

$

Not available

23

Simplicity 1686745SM

SHAFT ASSEMBLY

$

$

Not available

24

Simplicity 1704314SM

FITTING, Grease, 1/4
(Superseded to 703907)

$5.49

$

In Stock, Qty 20+

0

25

Simplicity 1716387SM

FAN

$

$

Not available

26

Simplicity 1929477SM

CAPSCREW, Hex Washer Hd, Taptite, #10-24 x 1/2
(Superseded to 704060)

$3.99

$

In Stock, only 2 left!

0

27

Simplicity 1927187SM

CAPSCREW, Hex Washer Hd, Taptite, 3/8-16 x 1
(Superseded to 704000)

$5.49

$

In Stock, Qty 13

0

28

Simplicity 1716431SM

BEARING, Flange

$405.99

$

Usually ships in 2-12 days

0

29

Simplicity 1717641SM

O-RING, 2.238

$5.99

$

Usually ships in 2-12 days

0

30

Simplicity 1717640SM

O-RING, 1.372 ID

$4.49

$

Usually ships in 2-12 days

0

31

Simplicity 1716403SM

SHAFT

$

$

Not available

32

Simplicity 2805856SM

Key, 1/4 x 1/4 x 1-1/2

$3.49

$

In Stock, only 2 left!

0

33

Simplicity 1716427SM

SPACER

$23.99

$

Usually ships in 2-12 days

0

34

Simplicity 1716393SM

SPROCKET ASSEMBLY, 34 Tooth

$

$

Not available

35

Simplicity 1718475SM

KIT, Spring Lock

$

$

Not available

36

Simplicity 1716955SM

PLATE ASSEMBLY

$88.99

$

Usually ships in 2-12 days

0

37

Simplicity 1916951SM

NUT, Hex, 1/2-13
(Superseded to 703340)

$8.49

$

Usually ships in 2-12 days

0

38

Simplicity 1916966SM

WASHER, Lock, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

39

Simplicity 1921176SM

CAPSCREW, Hex Hd, 1/2-13 x 1-1/4

$5.49

$

In Stock, only 1 left!

0

40

Simplicity 1921525SM

CAPSCREW, Hex Hd, 1/2-13 x 1-3/4

$10.99

$

Usually ships in 2-12 days

0

41

Simplicity 1960597SM

CAPSCREW, Hex Socket, 1/2-13 x 1-3/4

$5.49

$

Usually ships in 2-12 days

0

42

Simplicity 2176111SM

O-RING

$4.49

$

In Stock, only 1 left!

0

43

Simplicity 1673452SM

PLUG, Pipe, 3/8 NPT

$3.99

$

Usually ships in 2-12 days

0

44

Simplicity 1673453SM

FITTING, Elbow, 3/8 NPT

$12.99

$

Usually ships in 2-12 days

0

45

Simplicity 2801652SM

PLUG, Pipe Square Hd, 1/4 NPT

$4.49

$

Usually ships in 2-12 days

0

46

Simplicity 1716402SM

CASE ASSEMBLY

$319.99

$

Usually ships in 2-12 days

0

47

Simplicity 1718839SM

MOULDING

$5.99

$

Usually ships in 2-12 days

0

48

Simplicity 1924856SM

CAPSCREW, Hex Washer Hd, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 18

0

49

Simplicity 1717078SM

COVER ASSEMBLY

$

$

Not available

50

Simplicity 1654930SM

BUSHING, Rubber

$7.99

$

In Stock, Qty 20+

0

51

Simplicity 1709905SM

BREATHER ASSEMBLY

$

$

Not available

52

Simplicity 1718938SM

RETAINING RING

$3.49

$

Usually ships in 2-12 days

0

53

Simplicity 1709199SM

KIT, Rotor and Armature

$921.99

$

Usually ships in 2-12 days

0

54

Simplicity 1709294SM

FIELD ASSEMBLY, Electric Clutch
(Superseded to 1714637SM)

$985.99

$

Usually ships in 2-12 days

0

55

Simplicity 1709293SM

KIT, Spring and Nut

$14.99

$

Usually ships in 2-12 days

0

56

Simplicity 1930531SM

CAPSCREW, Truss Hd, #10-32 x 1/2

$4.49

$

In Stock, only 2 left!

0

57

Simplicity 1718803SM

TEMPLATE, Switch Mounting

$11.99

$

Usually ships in 2-12 days

0

58

Simplicity 1960096SM

WASHER, 3/16

$3.99

$

In Stock, only 2 left!

0

59

Simplicity 1930627SM

NUT, Hex Lock, #10-32

$2.99

$

Usually ships in 2-12 days

0
