1692928 - Simplicity 3-Point Hitch 3-Point Hitch Parts Diagram

3-Point Hitch

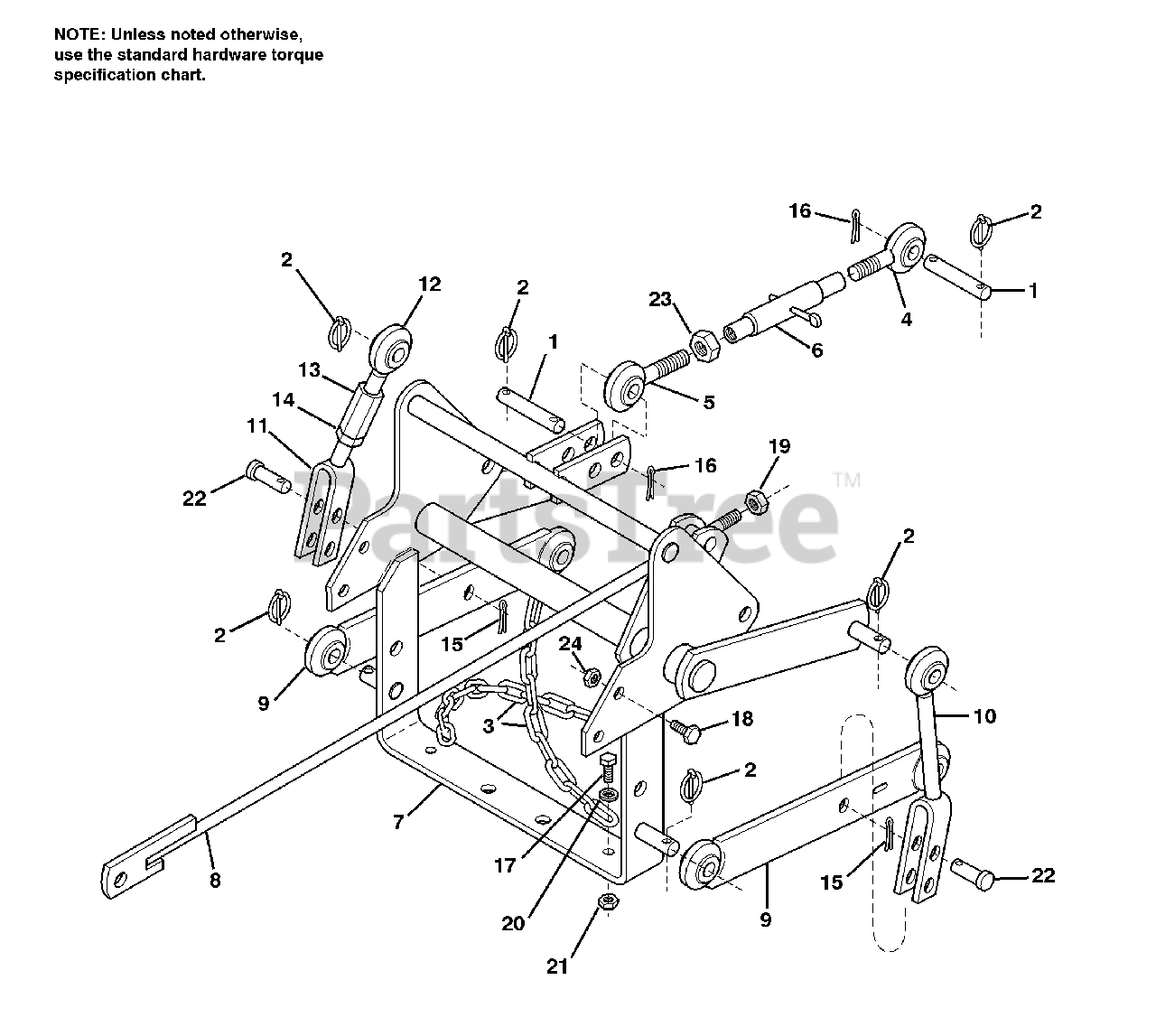

3-Point Hitch Parts Diagram

  • Title

1

Simplicity 2171695SM

PIN, Pivot

$36.99

$

Usually ships in 2-12 days

0

2

Simplicity 1679697SM

QUICK PIN

$9.49

$

In Stock, only 2 left!

0

3

Simplicity 1700312ASM

CHAIN, Sway

$33.99

$

Usually ships in 2-12 days

0

4

Simplicity 1700418SM

STUD, Eyelet, LH Thread

$85.99

$

Usually ships in 2-12 days

0

5

Simplicity 1700419SM

STUD, Eyelet, RH Thread

$82.99

$

Usually ships in 2-12 days

0

6

Simplicity 1700479SM

TUBE ASSEMBLY

$133.99

$

In Stock, only 2 left!

0

7

Simplicity 1716411SM

HITCH ASSEMBLY

$

$

Not available

8

Simplicity 1716413SM

LIFT ROD ASSEMBLY

$

$

Not available

9

Simplicity 1716415SM

ARM, Sway

$

$

Not available

10

Simplicity 1716417SM

CLEVIS ASSEMBLY, LH
(Superseded to 1716417ASM)

$76.99

$

In Stock, only 1 left!

0

11

Simplicity 1716420SM

CLEVIS ASSEMBLY, RH

$42.99

$

In Stock, only 1 left!

0

12

Simplicity 1716422SM

BALL JOINT ASSEMBLY, Upper RH

$75.99

$

In Stock, only 1 left!

0

13

Simplicity 1716425SM

TURNBUCKLE

$

$

Not available

14

Simplicity 1922014SM

NUT, Hex Jam, 5/8-18
(Superseded to 703904)

$4.99

$

In Stock, Qty 10

0

15

Simplicity 1918452SM

PIN, Cotter, 1/4 x 1
(Superseded to 703795)

$5.99

$

Usually ships in 2-12 days

0

16

Simplicity 1918461SM

PIN, Cotter, 1/4 x 1-1/2

$3.49

$

In Stock, only 2 left!

0

17

Simplicity 1920415SM

CAPSCREW, Hex Hd, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 2 left!

0

18

Simplicity 1921176SM

CAPSCREW, Hex Hd, 1/2-13 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 1922134SM

NUT, Lock, 1/2-13
(Superseded to 703894)

$3.49

$

In Stock, Qty 10

0

20

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

21

Simplicity 1930645SM

NUT, Hex Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

22

Simplicity 1960038SM

PIN, Clevis, 5/8 x 2-1/4

$

$

Not available

23

Simplicity 1960297SM

NUT, Hex Jam, 3/4-10

$11.99

$

Usually ships in 2-12 days

0

24

Simplicity 1960355SM

NUT, Hex Lock, 1/2-13
(Superseded to 703567)

$4.49

$

In Stock, only 2 left!

0
