1692932 - Simplicity Front End Loader Loader, Front End - Main Frame Parts Diagram

Front End Loader

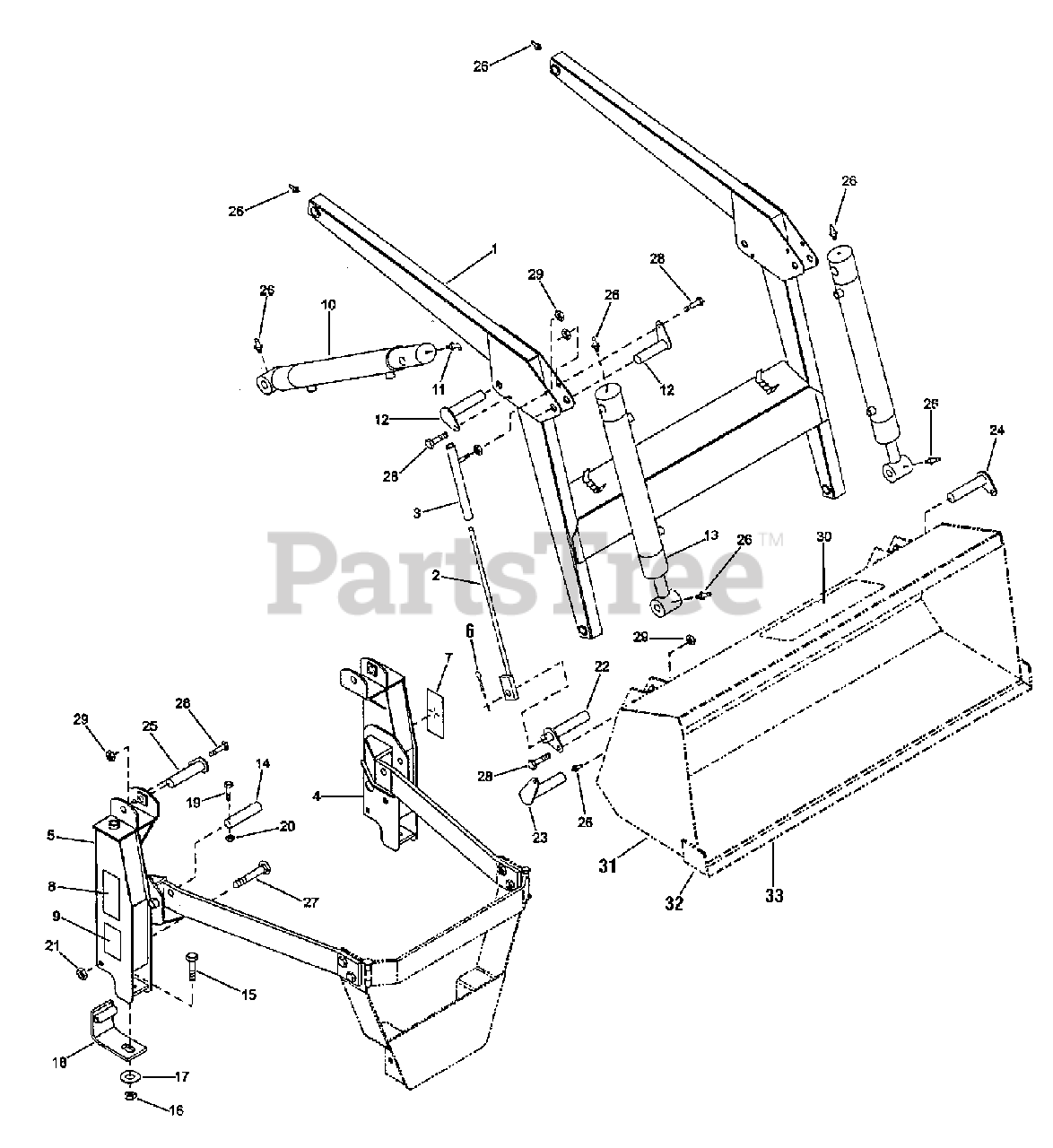

Loader, Front End - Main Frame Parts Diagram

  • Title

1

Simplicity 1718163SM

BOOM

$

$

Not available

2

Simplicity 1700531SM

ROD, Indicator

$34.99

$

Usually ships in 2-12 days

0

3

Simplicity 1700525SM

GUIDE TUBE, Indicator Rod

$31.99

$

Usually ships in 2-12 days

0

4

Simplicity 1718161

SIDE FRAME, Left

$

$

Not available

5

Simplicity 1718162

SIDE FRAME, Right

$

$

Not available

6

Simplicity 1918454

PIN, Cotter, 5/32 x 1-1/2

$

$

Not available

7

Simplicity 1700559SM

DECAL, Warning

$9.99

$

Usually ships in 2-12 days

0

8

Simplicity 1700557SM

DECAL, Warning

$9.99

$

Usually ships in 2-12 days

0

9

Simplicity 1700558SM

DECAL, Caution

$43.99

$

Usually ships in 2-12 days

0

10

Simplicity 1718166SM

CYLINDER, Lift (See SERVICE PARTS - Lift Cylinder)

$683.99

$

Usually ships in 2-12 days

0

11

Simplicity 2815019SM

FITTING, Grease

$4.49

$

In Stock, only 2 left!

0

12

Simplicity 1700524SM

PIN, Cylinder Base, 3/4 x 2-1/2

$30.99

$

Usually ships in 2-12 days

0

13

Simplicity 1718169SM

CYLINDER, Bucket (See SERVICE PARTS - Bucket Cylinder)

$626.99

$

Usually ships in 2-12 days

0

14

Simplicity 1718170SM

PIN, 3/4 x 4

$

$

Not available

15

Simplicity 1921024SM

CAPSCREW, Hex Head, 1/2-13 x 2
(Superseded to 703817)

$5.99

$

Usually ships in 2-12 days

0

16

Simplicity 1922134SM

LOCKNUT, Hex, 1/2-13
(Superseded to 703894)

$3.49

$

In Stock, Qty 10

0

17

Simplicity 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

18

Simplicity 1718174SM

HINGE

$32.99

$

Usually ships in 2-12 days

0

19

Simplicity 1921961SM

CAPSCREW, Hex Head,1/4-20 x 1-1/4

$4.49

$

In Stock, only 3 left!

0

20

Simplicity 1923358SM

LOCKNUT, Hex,1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

21

Simplicity 1923353SM

LOCKNUT, Hex, 5/8-11

$2.49

$

Usually ships in 2-12 days

0

22

Simplicity 1700532SM

PIN, 3/4 x 3-1/4

$39.99

$

Usually ships in 2-12 days

0

23

Simplicity 1700533SM

PIN, 3/4 x 3-1/4

$53.99

$

Usually ships in 2-12 days

0

24

Simplicity 1700534SM

PIN, 3/4 x 3-1/4

$27.99

$

Usually ships in 2-12 days

0

25

Simplicity 1921024SM

CAPSCREW, Hex Head, 1/2-13 x 2
(Superseded to 703817)

$5.99

$

Usually ships in 2-12 days

0

26

Simplicity 2812808SM

FITTING, Grease, 1/4-28

$4.49

$

In Stock, only 2 left!

0

27

Simplicity 2860300SM

CARRIAGE BOLT, 5/8-11 x 3-1/2

$

$

Not available

28

Simplicity 960323

SHOULDER BOLT, 3/8-16 x 1

$

$

Not available

29

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

30

Simplicity 1700549SM

DECAL, Caution

$45.99

$

Usually ships in 2-12 days

0

31

BUCKET ASSEMBLY, 48"

$

$

Not available

32

Simplicity 1700546SM

CUTTING EDGE, Side (Weld on part)

$

$

Not available

33

Simplicity 1700548SM

CUTTING EDGE, Bottom, 48" (Weld on part)

$

$

Not available
