1692932 - Simplicity Front End Loader Loader, Front End - Main Hydraulics Parts Diagram

Front End Loader

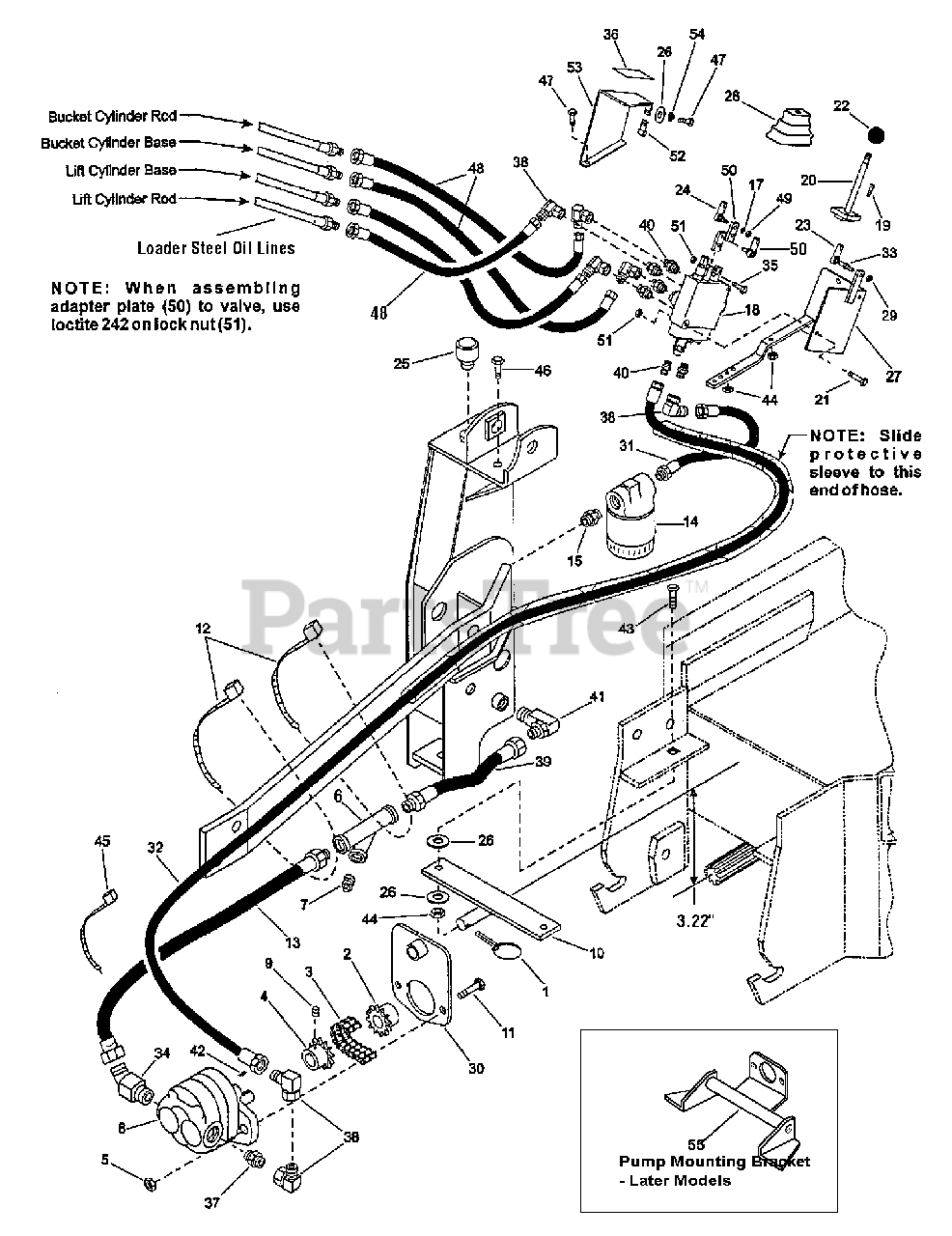

Loader, Front End - Main Hydraulics Parts Diagram

  • Title

55

Simplicity 1719120SM

BRACKET, Pump Mounting (Replaces Ref. Nos. 1, 10, 26, 30, 43, & 44) in Later Models

$86.99

$

Usually ships in 2-12 days

0

1

Simplicity 1709189SM

PIN, Klik, 3/16 x 1-5/8

$6.99

$

In Stock, only 2 left!

0

10

Simplicity 1718180SM

BRACKET, Pin Assembly

$59.99

$

Usually ships in 2-12 days

0

26

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 17

0

30

Simplicity 1718187SM

BRACKET, Pump Mounting

$33.99

$

Usually ships in 2-12 days

0

43

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

44

Simplicity 1923362SM

LOCKNUT, Hex, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

2

Simplicity 1700484SM

SPROCKET, w/ Spline Hub

$

$

Not available

3

Simplicity 1700485SM

CHAIN, Roller, #40-2 x 12 Pitches

$

$

Not available

4

Simplicity 1700486SM

SPROCKET, w/ Keyway Hub

$

$

Not available

5

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

6

Simplicity 1700490SM

Y-STRAINER

$117.99

$

Usually ships in 2-12 days

0

7

Simplicity 1673452SM

PLUG, Pipe, 3/8 NPT

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 1700493SM

PUMP ASSEMBLY (See SERVICE PARTS - Hydraulic Gear Pump)

$1310.99

$

Usually ships in 2-12 days

0

9

Simplicity 1930545SM

SETSCREW, Socket Head, 1/4-20 x 1/4, G8

$

$

Not available

11

Simplicity 1920415SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 2 left!

0

12

Simplicity 1701011SM

TIE, Self-Locking

$5.49

$

In Stock, only 2 left!

0

13

Simplicity 1718456SM

TUBE, 1/2 x 28, Suction

$61.99

$

Usually ships in 2-12 days

0

14

Simplicity 1700500SM

FILTER ASSEMBLY

$94.99

$

Usually ships in 2-12 days

0

15

Simplicity 1700499SM

FITTING, Adapter, 3/8 x 3/8

$7.49

$

Usually ships in 2-12 days

0

16

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

17

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

18

Simplicity 1700502SM

VALVE ASSEMBLY(See SERVICE PARTS - Hydraulic Valve Assembly)

$991.99

$

Usually ships in 2-12 days

0

19

Simplicity 1960503

CAPSCREW, Hex Socket Head, 1/4-28 x 3/4

$

$

Not available

20

Simplicity 1718461SM

HANDLE

$

$

Not available

21

Simplicity 1921963SM

CAPSCREW, Hex Head,1/4-20 x 2

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 1729255SM

BALL

$12.99

$

In Stock, only 1 left!

0

23

Simplicity 1718459SM

BALL JOINT, Female

$31.99

$

Usually ships in 2-12 days

0

24

Simplicity 1718460SM

BALL JOINT, Male

$26.99

$

Usually ships in 2-12 days

0

25

Simplicity 1700509SM

CAP, Breather

$50.99

$

Usually ships in 2-12 days

0

27

Simplicity 1718185SM

BRACKET, Valve Mounting

$

$

Not available

28

Simplicity 1718462SM

BOOT

$

$

Not available

29

Simplicity 1960262SM

NUT, Hex, 1/4-28
(Superseded to 703461)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 1718463SM

HOSE, Hydraulic, 3/8 x 11 (valve to filter)

$27.99

$

Usually ships in 2-12 days

0

32

Simplicity 1718464SM

HOSE, Hydraulic, 3/8 x 63 (pressure)

$108.99

$

Usually ships in 2-12 days

0

33

Simplicity 1718465SM

STUD, Ball Joint

$7.99

$

Usually ships in 2-12 days

0

34

Simplicity 1718466SM

FITTING, 7/8 O-Ring x 7/8 JIC, 45 Degree (outlet port on pump)

$

$

Not available

35

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

36

Simplicity 1718467SM

DECAL, Single Handle

$3.99

$

Usually ships in 2-12 days

0

37

Simplicity 1718194SM

FITTING, 3/4 O-Ring x 9/16 JIC

$6.49

$

Usually ships in 2-12 days

0

38

Simplicity 1718195SM

FITTING, 9/16 JIC x 91/6 JIC, 90 Degree (between outlet fitting pump & hose)

$11.99

$

Usually ships in 2-12 days

0

39

Simplicity 1718468SM

HOSE, Hydraulic, 1/2 x 16

$44.99

$

Usually ships in 2-12 days

0

40

Simplicity 2822522SM

FITTING, 9/16 O-Ring x 9/16 JCI

$6.49

$

Usually ships in 2-12 days

0

41

Simplicity 1718470SM

FITTING 3/4 JIC x 1/2 NPTF, 90 Degree

$14.99

$

Usually ships in 2-12 days

0

42

WOODRUFF KEY, 1/8 x 5/8

$

$

Not available

45

Simplicity 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

46

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 10

0

47

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 X 1
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

48

Simplicity 1718471

HOSE, Hydraulic, 3/8 x 24

$

$

Not available

49

Simplicity 1960262SM

NUT, Hex, 1/4-28
(Superseded to 703461)

$4.49

$

In Stock, Qty 20+

0

50

Simplicity 1718472SM

ADAPTER PLATE

$15.99

$

Usually ships in 2-12 days

0

51

Simplicity 1923358SM

LOCKNUT, Hex,1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

52

Simplicity 1718873SM

SPEEDNUT

$3.99

$

Usually ships in 2-12 days

0

53

Simplicity 1718474

COVER

$

$

Not available

54

Simplicity 1917356SM

LOCKWASHER, Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0
