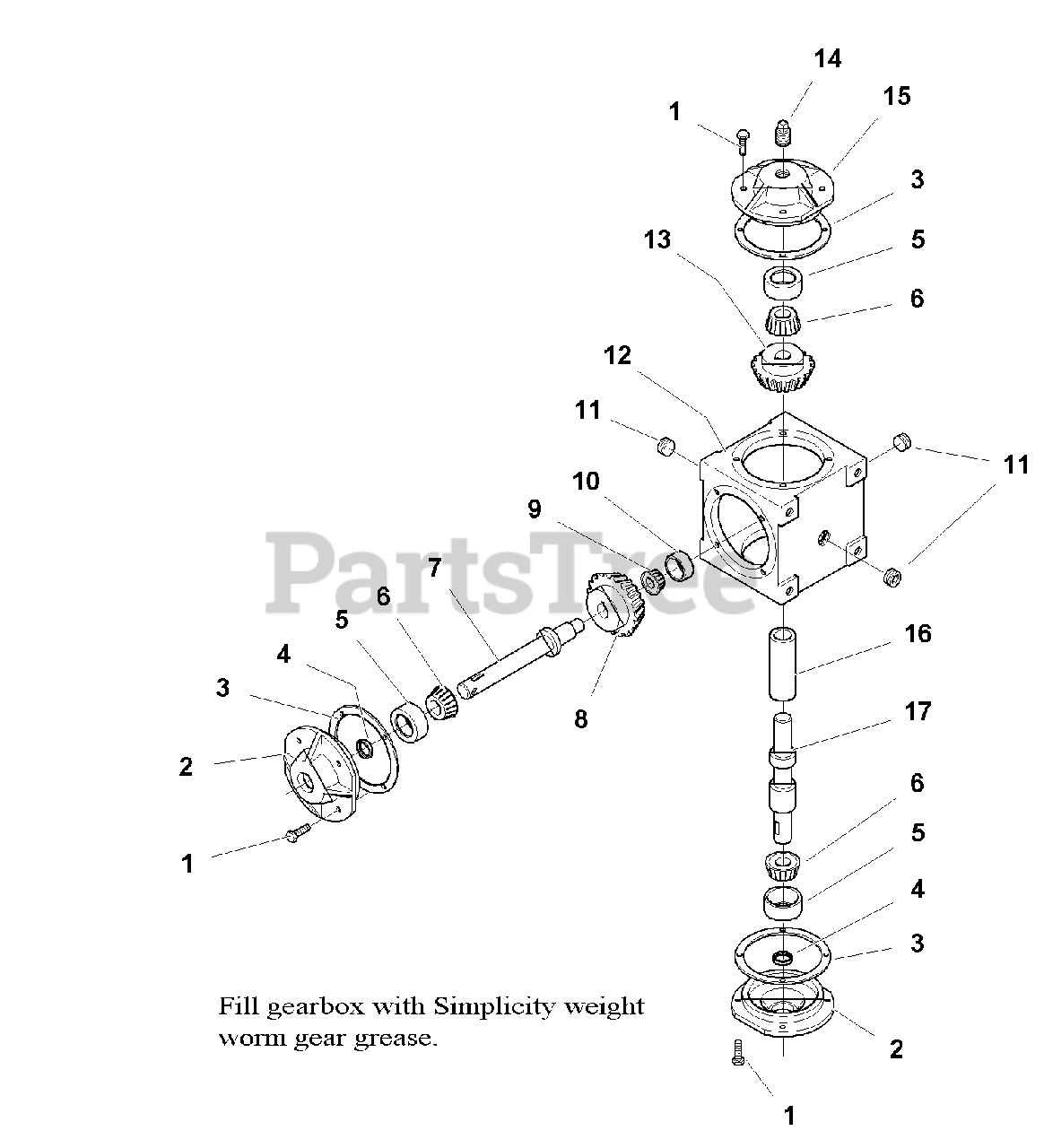

1692934 - Simplicity 46" Snow Thrower Attachment Gear Box Assembly Parts Diagram

46" Snow Thrower Attachment

Gear Box Assembly Parts Diagram

  • Title

1

Simplicity 1930591SM

CAPSCREW, Hex Head, Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

2

CAP (Not Serviced)

$

$

Not available

3

Simplicity 1700895SM

GASKET, 0.015

$15.99

$

Usually ships in 2-12 days

0

3

Simplicity 1700896SM

GASKET, 0.005

$19.99

$

Usually ships in 2-12 days

0

3

Simplicity 1700897SM

GASKET, 0.003

$14.99

$

Usually ships in 2-12 days

0

4

Simplicity 2118118SM

SEAL, Shaft, 1 x 1-1/2 x 5/16

$10.99

$

In Stock, only 4 left!

0

5

Simplicity 2170836SM

BEARING, Cup
(Superseded to 5020883SM)

$9.49

$

In Stock, only 3 left!

0

6

Simplicity 2170835SM

BEARING, Cone

$18.99

$

Usually ships in 2-12 days

0

7

SHAFT, Gearbox (Not Serviced)

$

$

Not available

8

Simplicity 1719203SM

GEAR

$

$

Not available

9

Simplicity 1700902

BEARING, Cone

$

$

Not available

10

Simplicity 1700903SM

BEARING, Cup

$20.99

$

Usually ships in 2-12 days

0

11

Simplicity 1716790SM

PLUG, Pipe, Hex Socket Head

$

$

Not available

12

HOUSING, Gearbox

$

$

Not available

13

Simplicity 1718557SM

GEAR (Used with Rev. 1 & 2 Only)

$

$

Not available

13

Simplicity 1719204SM

GEAR (Used with Rev. 3 Only)

$

$

Not available

14

Simplicity 1716790SM

PLUG, Pipe, Sqr Head (Used with Rev. 3 Only)

$

$

Not available

15

CAP, Blank

$

$

Not available

16

SPACER, Gearbox (Used with Rev. 1 & 2 Only)

$

$

Not available

17

SHAFT (Used with Rev. 1 & 2 Only)

$

$

Not available

17

Simplicity 1719205SM

SHAFT (Used with Rev. 3 )

$

$

Not available
