1692934 - Simplicity 46" Snow Thrower Attachment

46" Snow Thrower Attachment

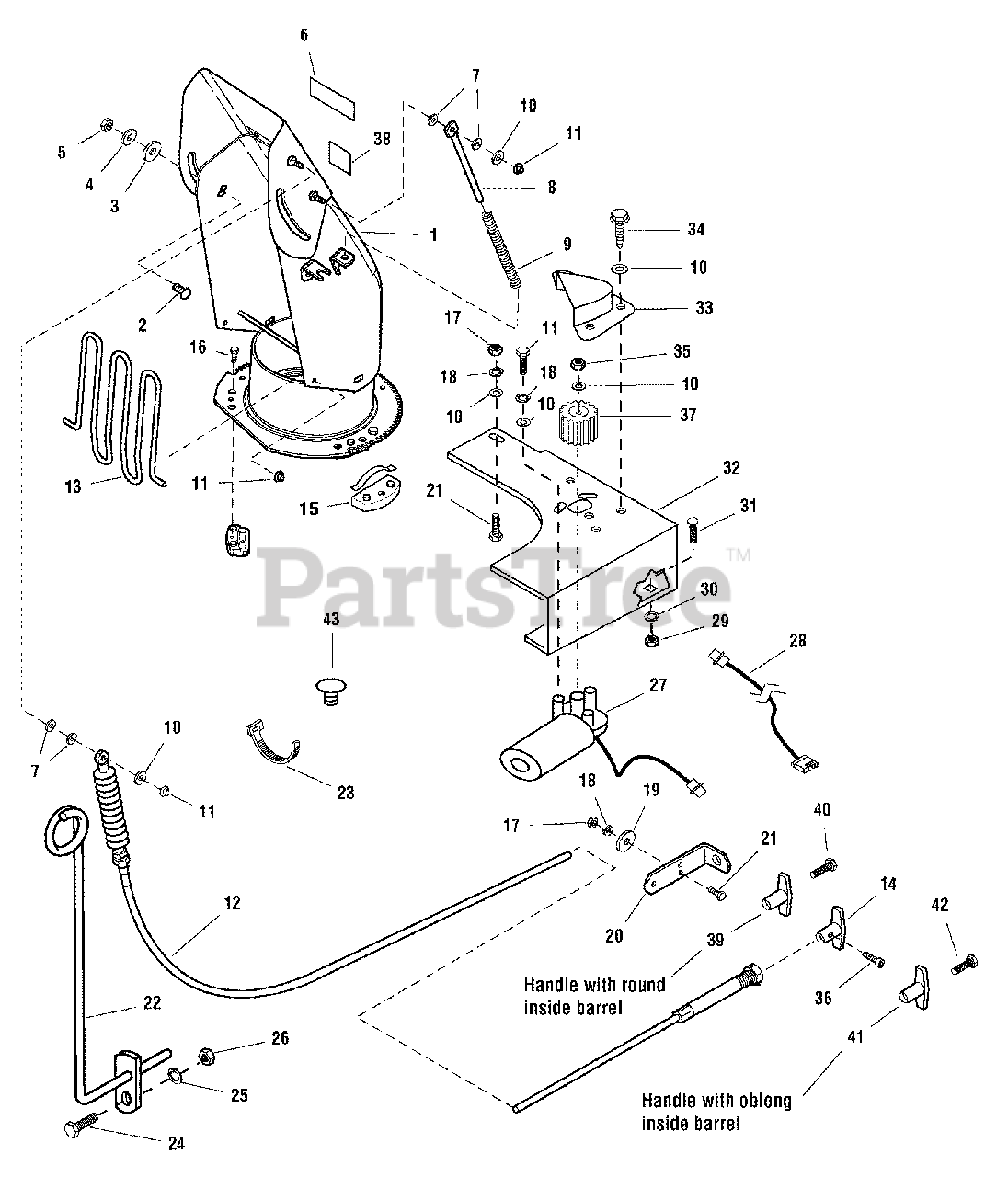

1692934 - Simplicity 46" Snow Thrower Attachment > Parts Diagrams (5) > Spout Group

  • Title
1717476SM

1

CHUTE ASSEMBLY

Part# 1717476SM

OEM Warranty Repair Part for Simplicity

Not available

1931333SM

2

CARRIAGE BOLT, 5/16-18 x 3/4

Part# 1931333SM (Superseded to 703185)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.29

2860210SM

3

WASHER, Nylon Special, 3/8

Part# 2860210SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.96

1919326SM

4

WASHER, 5/16

Part# 1919326SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.74

1919438SM

5

NUT, Hex Nylon Lock, 5/16-18

Part# 1919438SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.91

1718426SM

6

SEAL, Hinge, Decal

Part# 1718426SM

OEM Warranty Repair Part for Simplicity

Not available

1702219SM

7

SPACER

Part# 1702219SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $5.53

1611945SM

8

ROD, Spring, 5/16

Part# 1611945SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $9.50

1611939SM

9

SPRING, Compression

Part# 1611939SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $7.77

1921319SM

10

WASHER, 1/4

Part# 1921319SM (Superseded to 703332)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $3.13

1960126SM

11

NUT, Push, 1/4

Part# 1960126SM (Superseded to 704066)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $3.19

1717482SM

12

CABLE ASSEMBLY

Part# 1717482SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $131.37

1612455SM

13

GUARD, Chute

Part# 1612455SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $39.35

1715799SM

14

HANDLE "T"

Part# 1715799SM

OEM Warranty Repair Part for Simplicity

Not available

1666613SM

15

HOLD DOWN, Chute Black Nylon

Part# 1666613SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $5.93

1960001SM

16

CAPSCREW, Hex Washer Head, Plastite, #10-14 x 5/8

Part# 1960001SM (Superseded to 703062)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $3.19

1916622SM

17

NUT, Hex, 1/4-20

Part# 1916622SM (Superseded to 703127)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.29

1916964SM

18

WASHER, Lock, 1/4

Part# 1916964SM (Superseded to 704133)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.74

1960151SM

19

WASHER, 1/4

Part# 1960151SM (Superseded to 703136)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.63

1726411ASM

20

BRACKET, Cable Mounting

Part# 1726411ASM

OEM Warranty Repair Part for Simplicity

Not available

1924009SM

21

CAPSCREW, Hex Head, 1/4-20 x 7/8

Part# 1924009SM (Superseded to 703819)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.74

1717591ASM

22

GUIDE ASSEMBLY, Cable

Part# 1717591ASM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $23.48

1701011SM

23

TIE, Self-Locking

Part# 1701011SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $4.03

1921333SM

24

CAPSCREW, Hex Head, 5/16-18 X 1

Part# 1921333SM (Superseded to 703585)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $3.08

1917356SM

25

LOCKWASHER, 5/16

Part# 1917356SM (Superseded to 703116)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.29

1917372SM

26

NUT, Hex, 5/16-18

Part# 1917372SM (Superseded to 7091511SM)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.29

1715885SM

27

MOTOR, Electric

Part# 1715885SM (Superseded to 709509)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $249.54

1717483SM

28

WIRE HARNESS

Part# 1717483SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $31.36

1916950SM

29

NUT, Hex, 3/8-16

Part# 1916950SM (Superseded to 703577)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.85

1916965SM

30

LOCKWASHER, 3/8

Part# 1916965SM (Superseded to 703454)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.24

1931348SM

31

CARRIAGE BOLT, 3/8-16 x 3/4

Part# 1931348SM (Superseded to 703448)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $3.24

1717049SM

32

SUPPORT, Motor

Part# 1717049SM

OEM Warranty Repair Part for Simplicity

Not available

1717481SM

33

COVER, Pinion

Part# 1717481SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $37.51

1925003SM

34

CAPSCREW, Hex Head, Taptite, 1/4-20 x 1/2

Part# 1925003SM (Superseded to 704130)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.57

1923358SM

35

NUT, Hex Lock,1/4-20

Part# 1923358SM (Superseded to 703954)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.24

1724604SM

37

GEAR, Pinion

Part# 1724604SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $60.15

1722674SM

38

DECAL, Danger, Blower

Part# 1722674SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $11.68

1930547SM

36

SCREW, Set Hex, #10-24 x 3/8

Part# 1930547SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.74

1724553SM

43

CAP, Plug Black Poly

Part# 1724553SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.74

1706201SM

39

HANDLE "T"

Part# 1706201SM

Note: (Handle with round inside barrel)

OEM Warranty Repair Part for Simplicity

Not available

1960399SM

40

SCREW, Round Head

Part# 1960399SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.74

1719138SM

41

HANDLE "T"

Part# 1719138SM

Note: (Handle with oblong inside barrel)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $14.65

1960600SM

42

SCREW, #8c x 3/4

Part# 1960600SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $3.13
