1692936 - Simplicity 48" Turbo Collector for Legacy, 2000 Series, 2900 Series 48" Turbo - Mounting Group Parts Diagram

48" Turbo Collector for Legacy, 2000 Series, 2900 Series

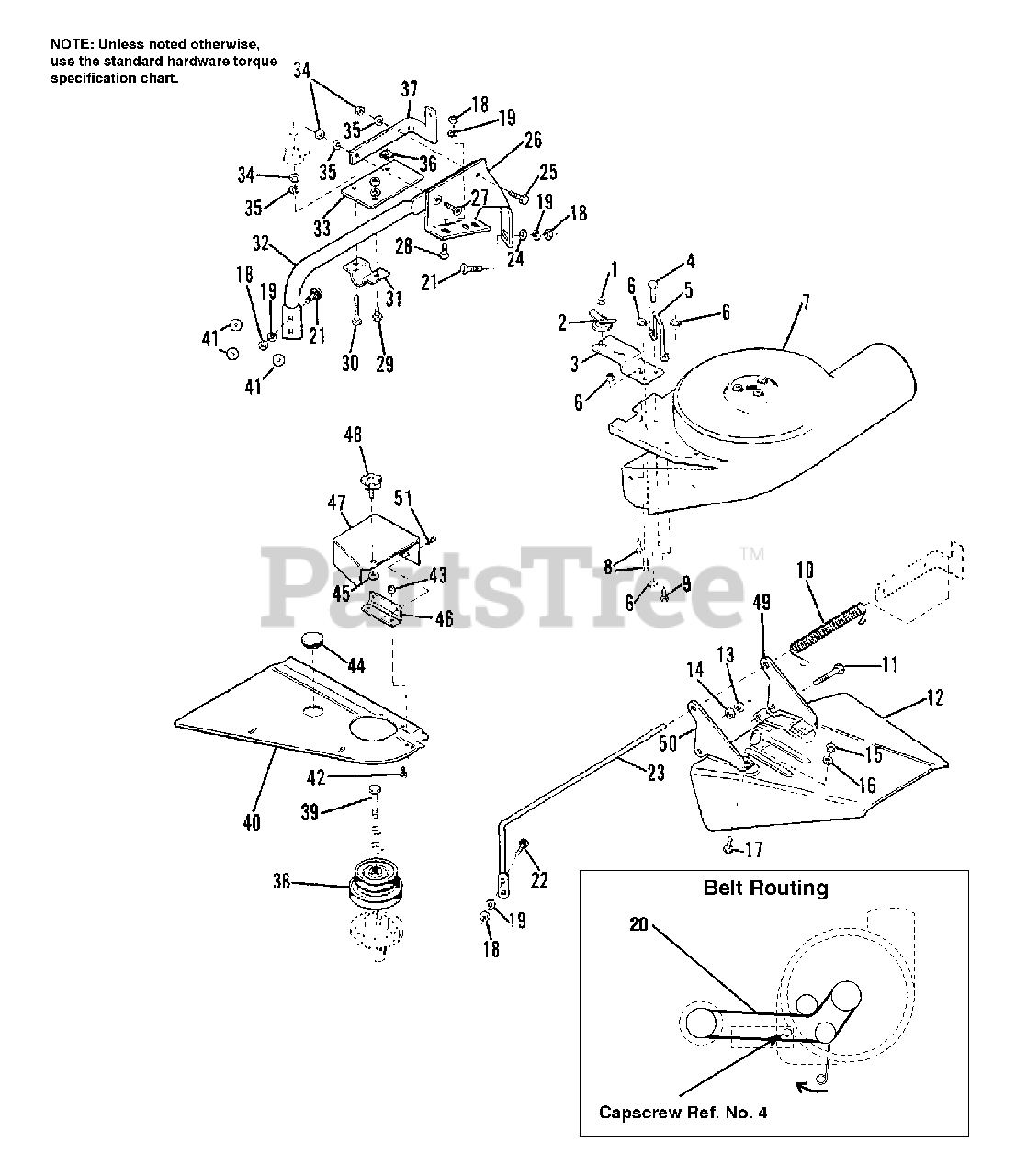

48" Turbo - Mounting Group Parts Diagram

  • Title

1

Simplicity 1923362SM

NUT, Hex Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1679163SM

NUT & CUP ASSEMBLY

$71.99

$

In Stock, only 1 left!

0

3

Simplicity 1679897SM

PLATE, Mounting

$18.99

$

Usually ships in 2-12 days

0

4

Simplicity 1960346SM

CAPSCREW, Hex Hd,1/4-20 x 2-1/4
(Superseded to 5025010X18SM)

$3.49

$

In Stock, only 3 left!

0

5

Simplicity 1700936SM

STOP, Deflector

$25.99

$

Usually ships in 2-12 days

0

6

Simplicity 1930641SM

NUT, Hex Flange Whiz Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 18

0

7

TURBO ASSEMBLY

$

$

Not available

8

Simplicity 1923341SM

CAPSCREW, Hex Hd, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1924009SM

CAPSCREW, Hex Hd, 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1700851SM

SPRING, Torsion

$21.99

$

Usually ships in 2-12 days

0

11

Simplicity 1926110SM

CAPSCREW, Hex Hd, 7/16-14 x 2-3/4

$6.49

$

In Stock, Qty 6

0

12

DEFLECTOR ASSEMBLY (From Mower)

$

$

Not available

13

Simplicity 1918199SM

WASHER, Lock, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

14

Simplicity 1918213SM

NUT, Hex, 7/16-14

$4.99

$

In Stock, only 2 left!

0

15

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 6

0

16

Simplicity 1917356SM

WASHER, Lock, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

17

Simplicity 1923325SM

CAPSCREW, Hex Hd, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 7

0

18

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 8

0

19

Simplicity 1916965SM

WASHER, Lock, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

20

Simplicity 1679914SM

V-BELT
(Superseded to 1734012SM)

$53.99

$

Usually ships in 2-12 days

0

21

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, Qty 6

0

22

Simplicity 1960373SM

CAPSCREW, Hex Washer Hd, Taptite, 5/16-18 X 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 1700800SM

ROD, Hinge

$30.99

$

Usually ships in 2-12 days

0

24

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1921977SM

CAPSCREW, Hex Hd, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

26

Simplicity 1709327SM

BRACKET, Support

$69.99

$

Usually ships in 2-12 days

0

27

Simplicity 1960486SM

SCREW, Flat Hd, Hex Socket, 5/16-18 x 1-1/4

$6.99

$

Usually ships in 2-12 days

0

28

Simplicity 1921210SM

CAPSCREW, Hex Hd, 3/8-16 x 1
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 2 left!

0

29

Simplicity 1925205SM

CAPSCREW, Hex Hd, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

30

Simplicity 1960318SM

CAPSCREW, Hex Hd, 5/16-18 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

31

Simplicity 1679898SM

CLAMP, Lower

$

$

Not available

32

Simplicity 1677651SM

BRACE, Bracket Support

$48.99

$

Usually ships in 2-12 days

0

33

Simplicity 1700638SM

CLAMP, Upper

$8.99

$

Usually ships in 2-12 days

0

34

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 6

0

35

Simplicity 1917356SM

WASHER, Lock, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

36

Simplicity 1935255SM

NUT, Speed, 5/16-18

$3.49

$

In Stock, Qty 8

0

37

Simplicity 1722049SM

PIVOT ASSEMBLY, Deflector

$

$

Not available

38

Simplicity 1679903ASM

PULLEY ASSEMBLY

$148.99

$

Usually ships in 2-12 days

0

39

Simplicity 1927120SM

CAPSCREW, Hex Hd, 7/16-14 x 2-1/4

$6.99

$

Usually ships in 2-12 days

0

40

Simplicity 1700013SM

COVER, LH Mower
(Superseded to 1700013AYP)

$98.99

$

Usually ships in 2-12 days

0

41

Simplicity 1708511SM

SPACER

$7.99

$

In Stock, only 1 left!

0

42

Simplicity 922121

SCREW, Rd Hd Machine, #10-32 x 3/8

$

$

Not available

43

Simplicity 1928919SM

NUT, Hex Flange, #10-32

$3.99

$

In Stock, Qty 13

0

44

Simplicity 1674020SM

PLUG, Mower Cover

$4.49

$

In Stock, Qty 7

0

45

Simplicity 1933988SM

NUT, Push, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 15

0

46

Simplicity 1700649SM

HINGE

$

$

Not available

47

Simplicity 1700728SM

COVER, Belt

Note: (Includes Ref. No. 46 & 51)

$

$

Not available

48

Simplicity 1700669SM

KNOB, Plastic

$20.99

$

Usually ships in 2-12 days

0

49

Simplicity 1700802ASM

BRACKET, RH Pivot

$56.99

$

Usually ships in 2-12 days

0

50

Simplicity 1700801ASM

BRACKET, LH Pivot

$44.99

$

Usually ships in 2-12 days

0

51

Simplicity 2828707SM

POP-RIVET, 3/16 x 5/16
(Superseded to 703981)

$4.49

$

In Stock, only 2 left!

0
