1692938 - Simplicity Wide Body Collector Cart Wide Body Cart Collector - Hitch & Hose Assembly Parts Diagram

Wide Body Collector Cart

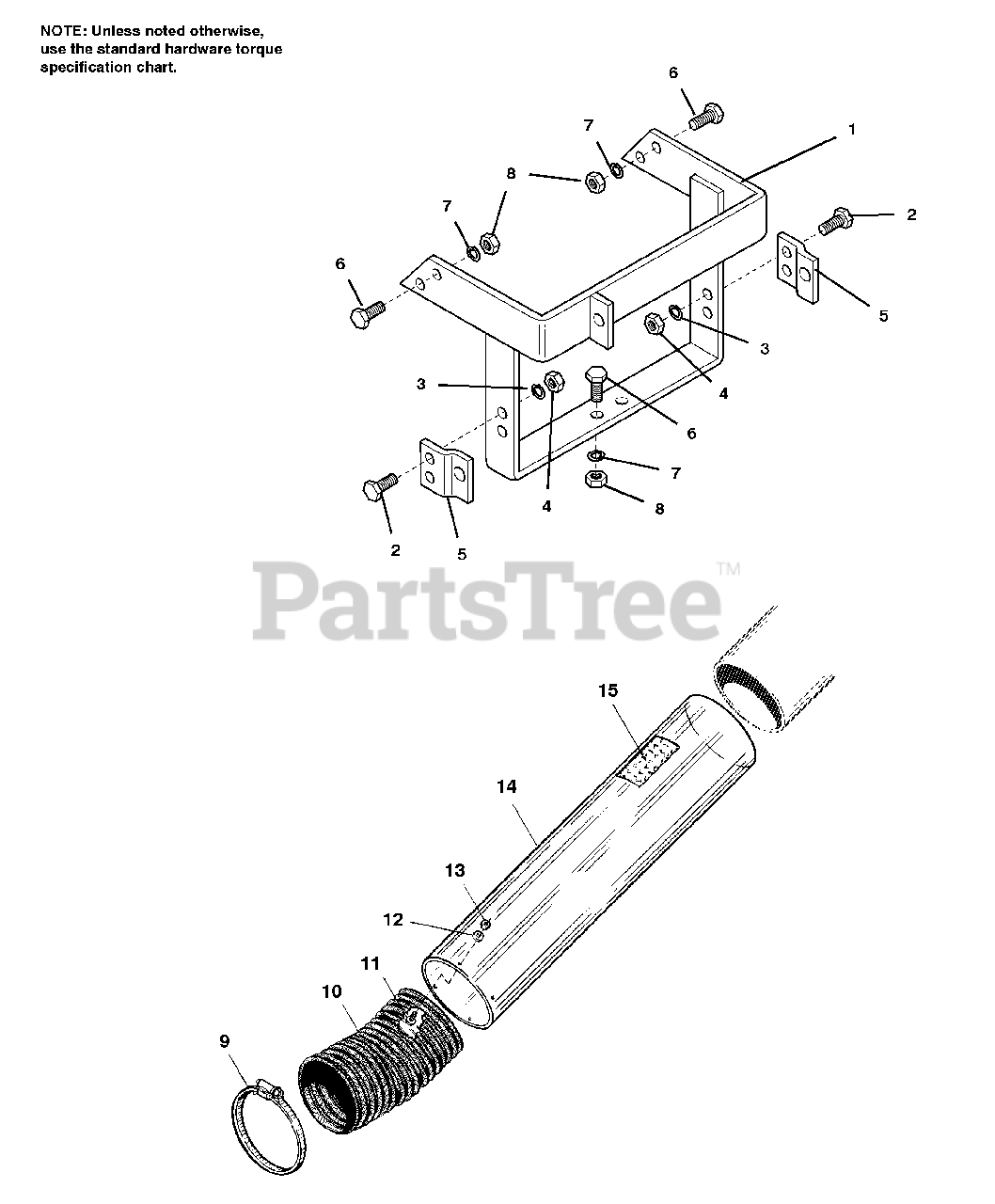

Wide Body Cart Collector - Hitch & Hose Assembly Parts Diagram

  • Title

1

Simplicity 1720948SM

HITCH ASSEMBLY
(Superseded to 1720948ASM)

$224.99

$

Usually ships in 2-12 days

0

2

Simplicity 1923151SM

CAPSCREW, Hex Hd, 5/8-11 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

3

Simplicity 1917373SM

WASHER, Lock, 5/8

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 1915726SM

NUT, Hex, 5/8-11
(Superseded to 703912)

$3.49

$

In Stock, only 1 left!

0

5

Simplicity 1718028SM

BRACKET

$33.99

$

Usually ships in 2-12 days

0

6

Simplicity 1921176SM

CAPSCREW, Hex Hd, 1/2-13 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 1916966SM

WASHER, Lock, 1/2
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 1916951SM

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

9

Simplicity 1679896SM

CLAMP, Hose, 6"

$11.99

$

In Stock, only 1 left!

0

10

Simplicity 1679895SM

HOSE, 6" Dia.

$164.99

$

Usually ships in 2-12 days

0

11

Simplicity 1930531SM

CAPSCREW, Truss Hd, #10-32 x 1/2

$4.49

$

Usually ships in 2-12 days

0

12

Simplicity 1910531SM

WASHER, Plain, 3/16

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 1930627SM

NUT, Hex Lock, #10-32

$2.99

$

Usually ships in 2-12 days

0

14

Simplicity 1700773SM

TUBE & DECAL ASSEMBLY
(Superseded to 1700774YP)

$231.99

$

Usually ships in 2-12 days

0

15

Simplicity 1675766SM

DECAL, Cleaning

$

$

Not available
