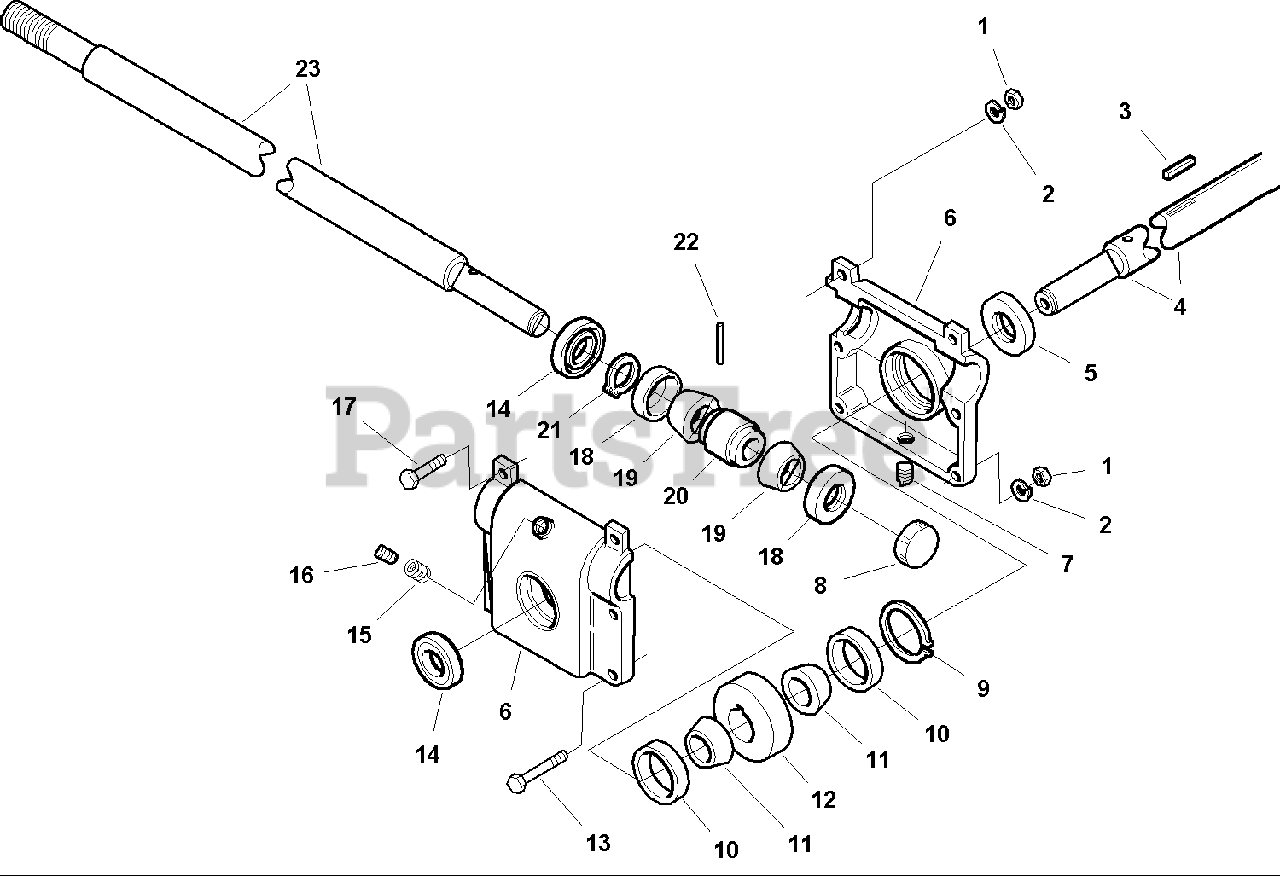

1692942 - Simplicity 47" Snow Thrower Attachment Auger Gearbox & Shaft Parts Diagram

47" Snow Thrower Attachment

Auger Gearbox & Shaft Parts Diagram

  • Title

1

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 2828712SM

KEY, 1/4 x 1/4 x 5/8

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 1709669SM

SHAFT, Output

$176.99

$

Usually ships in 2-12 days

0

5

Simplicity 1709673SM

SEAL, Oil, 1.0 ID x 2.0 OD

$38.99

$

Usually ships in 2-12 days

0

6

Simplicity 1709663SM

CASE, Gearbox (2-halves)

$672.99

$

Usually ships in 2-12 days

0

7

Simplicity 1709635SM

VENT, Relief

$26.99

$

Usually ships in 2-12 days

0

8

Simplicity 1709668SM

PLUG

$9.99

$

Usually ships in 2-12 days

0

9

Simplicity 1709672SM

RING, Retaining

$7.99

$

Usually ships in 2-12 days

0

10

Simplicity 1709676SM

RACE, Bearing

$34.99

$

Usually ships in 2-12 days

0

11

Simplicity 1709670SM

BEARING, Roller

$50.99

$

Usually ships in 2-12 days

0

12

Simplicity 1709671SM

GEAR, Worm

$225.99

$

Usually ships in 2-12 days

0

13

Simplicity 1921719SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

14

Simplicity 1709665SM

SEAL, Oil

$24.99

$

Usually ships in 2-12 days

0

15

Simplicity 1668971SM

FITTING, Reducer, 1/4 Male x 1/8 Female

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 1720487SM

PLUG
(Superseded to 2801652SM)

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 10

0

18

Simplicity 1709675SM

RACE, Bearing

$28.99

$

Usually ships in 2-12 days

0

19

Simplicity 1709666SM

BEARING, Roller

$84.99

$

Usually ships in 2-12 days

0

20

Simplicity 1709667SM

WORM

$268.99

$

Usually ships in 2-12 days

0

21

Simplicity 1709674SM

RING, Retaining

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 1720368SM

PIN, Dowel, 1/4 x 1-1/8

$9.49

$

In Stock, only 1 left!

0

23

Simplicity 1709664SM

SHAFT, Input

$178.99

$

Usually ships in 2-12 days

0
