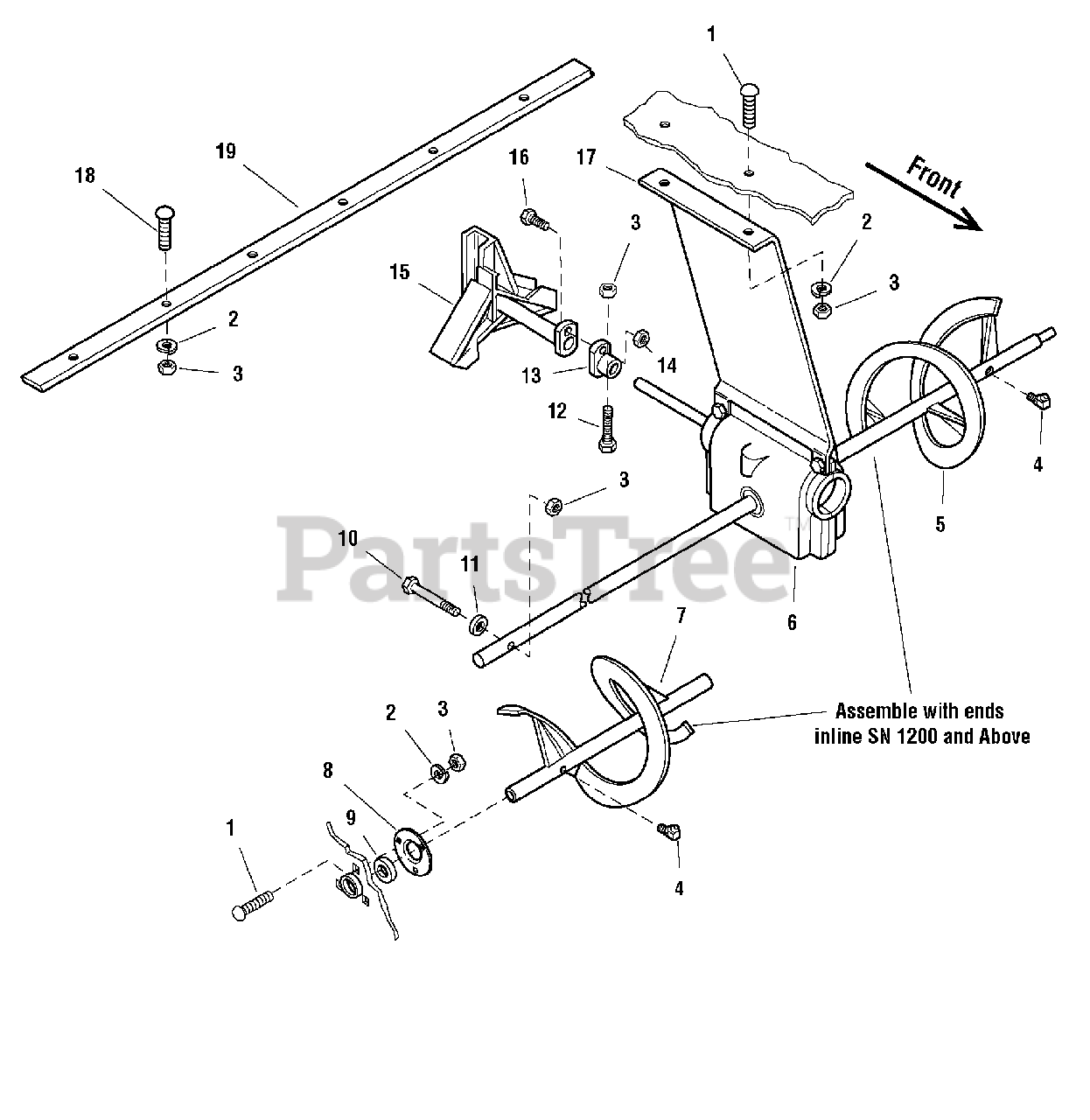

1692942 - Simplicity 47" Snow Thrower Attachment Auger Group Parts Diagram

47" Snow Thrower Attachment

Auger Group Parts Diagram

  • Title

1

Simplicity 1931333SM

CARRIAGE BOLT, 3/8-16 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1917372SM

NUT, HEX, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 2821133SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

5

Simplicity 1709678ASM

AUGER, ASSEMBLY LH

$445.99

$

Usually ships in 2-12 days

0

6

Simplicity 1709662SM

GEAR BOX & SHAFT ASSEMBLY, (See Gearbox Mounting & Shaft Group)

$

$

Not available

7

Simplicity 1709679ASM

AUGER, ASSEMBLY RH

$372.99

$

Usually ships in 2-12 days

0

8

Simplicity 2172279ASM

FLANGE, Bearing, W/Grease Fitting

$14.99

$

Usually ships in 2-12 days

0

9

Simplicity 2173934SM

BEARING, Cartridge
(Superseded to 1733105SM)

$57.99

$

In Stock, only 2 left!

0

10

Simplicity 1921719SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

11

Simplicity 1918265SM

WASHER
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, Qty 6

0

13

Simplicity 1721757SM

PLATE & TUBE ASSEMBLY
(Superseded to 1721757ASM)

$59.99

$

Usually ships in 2-12 days

0

14

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

15

Simplicity 1709681SM

IMPELLER ASSEMBLY

$658.99

$

Usually ships in 2-12 days

0

16

Simplicity 1921960SM

CAPSCREW, Hex Head, 1/4-20 x 1

$3.49

$

In Stock, only 2 left!

0

17

Simplicity 1709683A

SUPPORT
(Superseded to 1709683SM)

$146.99

$

Usually ships in 2-12 days

0

18

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

19

Simplicity 1720248ASM

CUTTING EDGE, Scraper

$190.99

$

Usually ships in 2-12 days

0
