1692942 - Simplicity 47" Snow Thrower Attachment Gearbox Parts Diagram

47" Snow Thrower Attachment

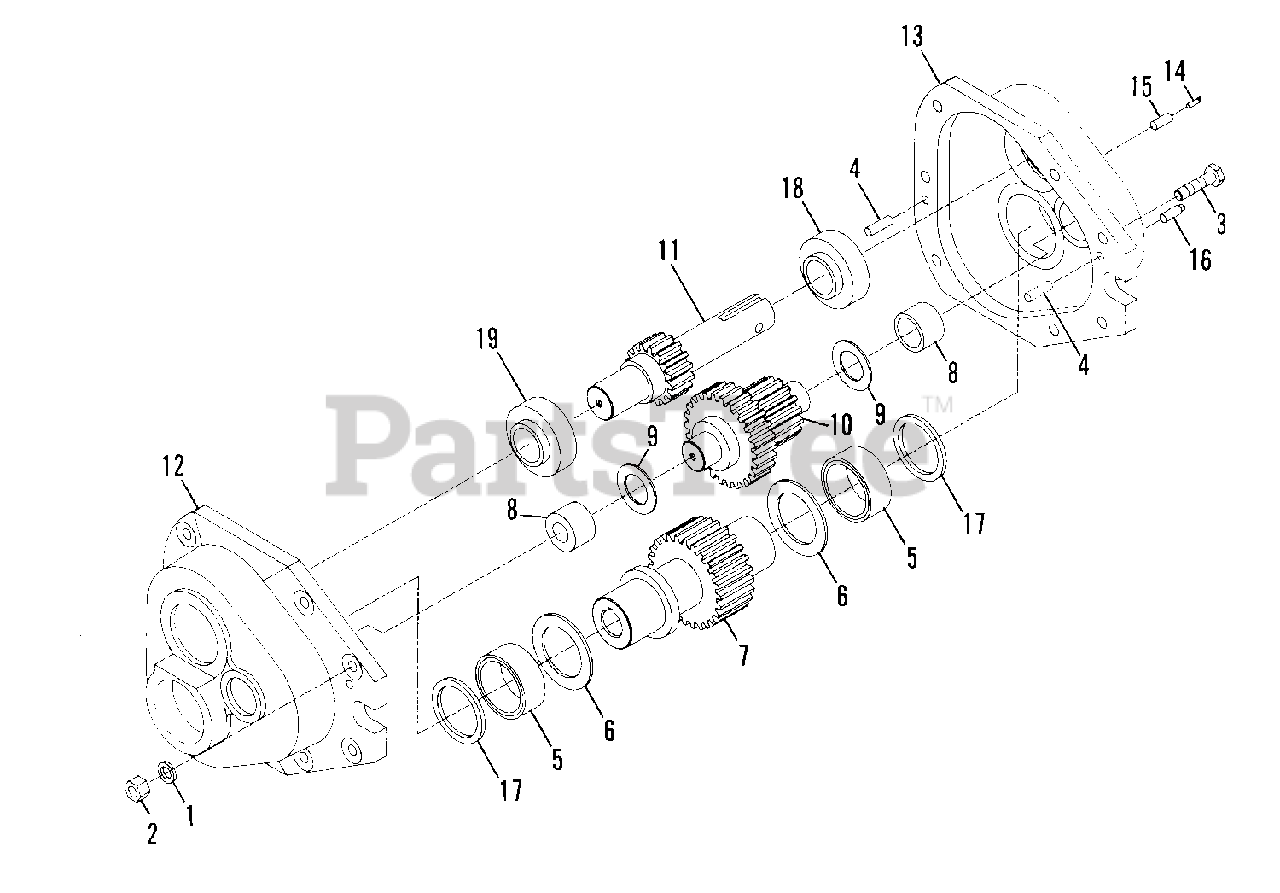

Gearbox Parts Diagram

  • Title

1

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 10

0

4

Simplicity 2817554SM

PIN, Dowel, 1/4 x 1/2

$3.49

$

Usually ships in 2-12 days

0

5

Simplicity 1709626SM

BEARING

$53.99

$

Usually ships in 2-12 days

0

6

Simplicity 1709627SM

THRUST RACE

$19.99

$

Usually ships in 2-12 days

0

7

Simplicity 1709628SM

GEAR, Output

$393.99

$

Usually ships in 2-12 days

0

8

Simplicity 1709629SM

BEARING

$20.99

$

Usually ships in 2-12 days

0

9

Simplicity 1709630SM

THRUST RACE

$14.99

$

Usually ships in 2-12 days

0

10

Simplicity 1713421SM

GEAR, Idler

$205.99

$

Usually ships in 2-12 days

0

11

Simplicity 1713422SM

GEAR, Input

$

$

Not available

12

Simplicity 1709633SM

GEARBOX, Snowthrower-Front

$

$

Not available

13

Simplicity 1709634SM

GEARBOX, Snowthrower-Rear

$

$

Not available

14

Simplicity 1720490SM

FITTING, Lube, 1/4-18, 90 Degrees

$

$

Not available

15

Simplicity 1720491SM

FITTING, Reducer, 1/4 Male x 1/8 Female

$13.99

$

Usually ships in 2-12 days

0

16

Simplicity 1720487SM

PLUG, Pipe Square Head, 1/4 NPT
(Superseded to 2801652SM)

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 1709636SM

SEAL, Oil

$10.99

$

Usually ships in 2-12 days

0

18

Simplicity 1709637SM

BEARING, Ball
(Superseded to 1710602SM)

$84.99

$

Usually ships in 2-12 days

0

19

Simplicity 1709638SM

BEARING, Ball

$

$

Not available
