1692942 - Simplicity 47" Snow Thrower Attachment Gearbox Mounting & Shaft Group Parts Diagram

47" Snow Thrower Attachment

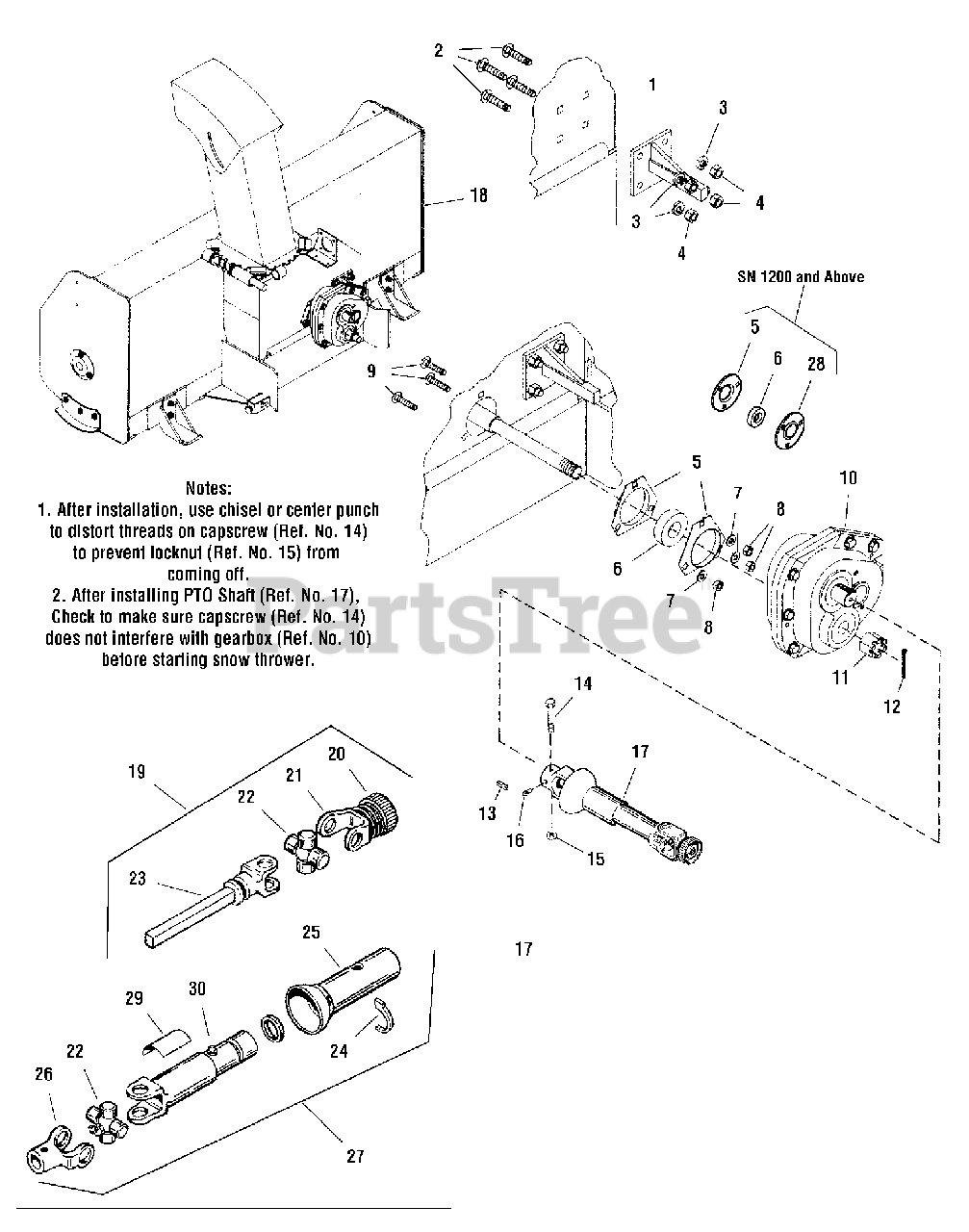

Gearbox Mounting & Shaft Group Parts Diagram

  • Title

1

Simplicity 1709620SM

PLATE & BAR ASSEMBLY

$72.99

$

Usually ships in 2-12 days

0

2

Simplicity 1709621SM

CARRIAGE BOLT, 3/8-16 x 1

$10.99

$

Usually ships in 2-12 days

0

3

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

4

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

5

Simplicity 1709623SM

FLANGE, Bearing 3-hole, (SN 1 to 1120)

$

$

Not available

5

Simplicity 2172278ASM

FLANGE, Bearing, (SN 1200 and above)

$11.99

$

In Stock, only 2 left!

0

6

Simplicity 1709624SM

BEARING, (SN 1 to 1120)

$60.99

$

In Stock, only 2 left!

0

6

Simplicity 2173934SM

BEARING, Cartridge
(Superseded to 1733105SM)

Note: (SN 1200 and above)

$57.99

$

In Stock, only 2 left!

0

7

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1931332SM

CARRIAGE BOLT, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1713420SM

GEARBOX ASSEMBLY (See Gearbox group), Use 30 Weight Engine Oil.

$1187.99

$

Usually ships in 2-12 days

0

11

Snapper 1709639SM

NUT, Slotted Hex, 3/4 -16, L.H.

$41.99

$

Usually ships in 2-12 days

0

12

Simplicity 1918456

PIN, Cotter

$

$

Not available

13

Simplicity 2154096SM

KEY

$6.99

$

In Stock, only 2 left!

0

14

Simplicity 1960506SM

CAPSCREW, Hex Head, 1/4-20 x 1-7/8
(Superseded to 704034)

$5.49

$

In Stock, only 1 left!

0

15

Simplicity 1923358SM

LOCKNUT, Hex,1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

16

Simplicity 1677029SM

SET SCREW, 5/16 -18 x 3/8, G8

$3.49

$

In Stock, only 1 left!

0

17

Simplicity 1717484SM

DRIVE SHAFT, PTO

$638.99

$

Usually ships in 2-12 days

0

18

Simplicity 1720250SM

BLOWER HOUSING(S/N 1 to1120)

$

$

Not available

18

Simplicity 1721602SM

BLOWER HOUSING, (S/N 1200 and Above)

$

$

Not available

19

Simplicity 1718838SM

JOINT & SHAFT ASSEMBLY, w/guard (Incl Ref. Nos. 20-23)

$426.99

$

Usually ships in 2-12 days

0

20

Simplicity 1718475SM

SPRING LOCK ASSEMBLY

$46.99

$

Usually ships in 2-12 days

0

21

Simplicity 1709350SM

YOKE ASSEMBLY, Spring-Lock

$

$

Not available

22

Simplicity 1679003SM

CROSS & BEARING KIT

$80.99

$

Usually ships in 2-12 days

0

23

Simplicity 1718837SM

YOKE & SHAFT ASSEMBLY

$136.99

$

Usually ships in 2-12 days

0

24

Simplicity 1709352SM

REPAIR KIT, Nylon

$13.99

$

Usually ships in 2-12 days

0

25

Simplicity 1709355SM

GUARD, Outer

$146.99

$

Usually ships in 2-12 days

0

26

Simplicity 1716877SM

YOKE

$76.99

$

Usually ships in 2-12 days

0

27

Simplicity 1709348SM

JOINT & TUBE ASSEMBLY, w/guard (lncl. Ref. Nos. 22, 24-26, 29-30)

$364.99

$

Usually ships in 2-12 days

0

28

Simplicity 2172279ASM

FLANGE W/ GREASE FITTING, (SN 1200 and above)

$14.99

$

Usually ships in 2-12 days

0

29

DECAL, Warning, Drive Shaft

$

$

Not available

30

Simplicity 1709348SM

YOKE, TUBE & SLIP SLEEVE

$364.99

$

Usually ships in 2-12 days

0
