1693107 - Simplicity Quad Bagger Dump Cart Quad Bagger Dump Cart - 1693107 Parts Diagram

Quad Bagger Dump Cart

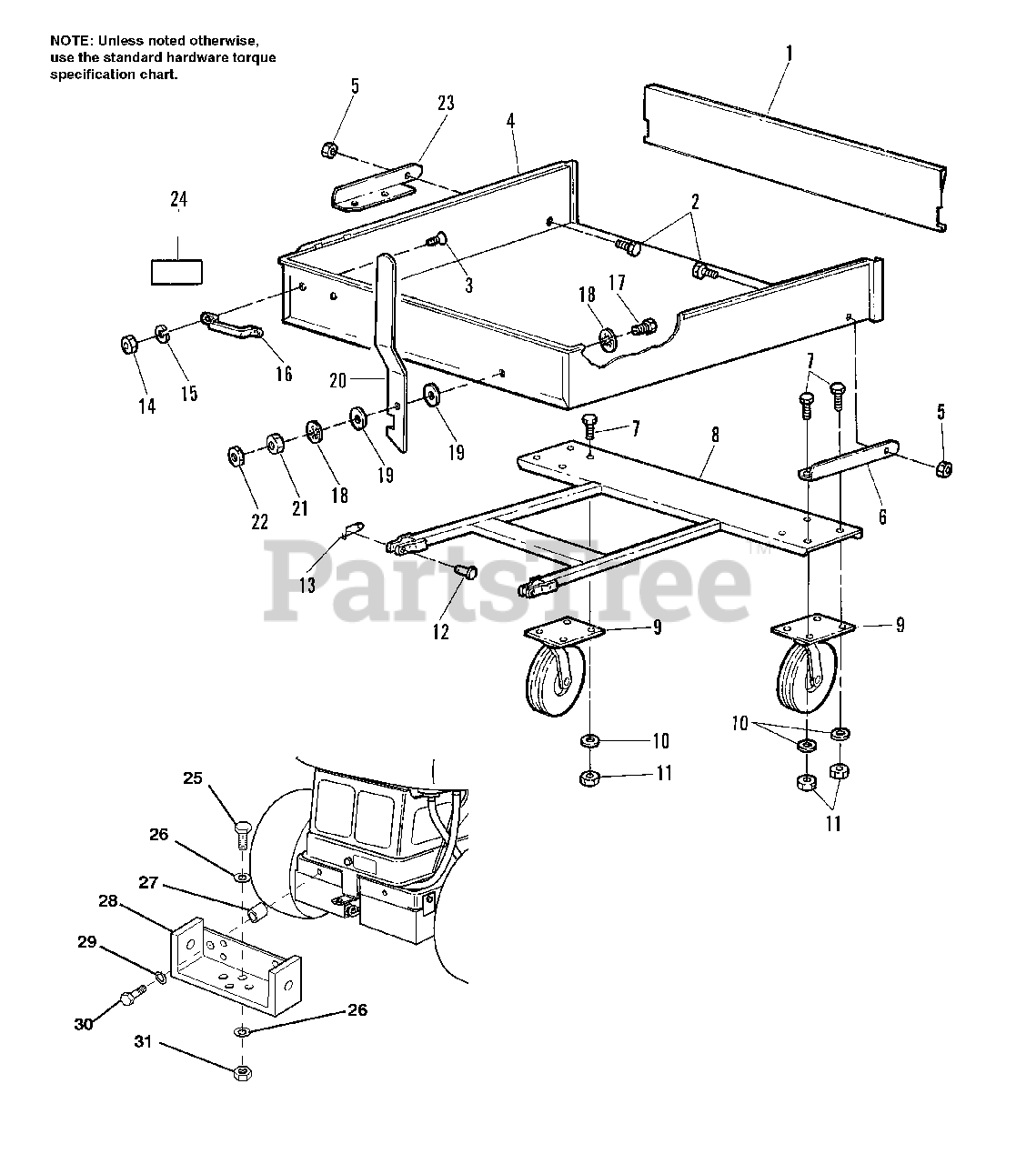

Quad Bagger Dump Cart - 1693107 Parts Diagram

  • Title

1

Simplicity 1708239SM

TAILGATE

$

$

Not available

2

Simplicity 1923114SM

CAPSCREW, 1/2-13 x 1

$3.99

$

In Stock, only 2 left!

0

3

Simplicity 1921958SM

CAPSCREW, Hex, 1/4-20 x 1/2

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 1708238SM

BOX

$

$

Not available

5

Simplicity 1930644SM

LOCKNUT, Hex, Flange, 1/2-13

$3.49

$

In Stock, only 3 left!

0

6

Simplicity 1703334SM

BRACKET, Pivot, L.H.

$39.99

$

Usually ships in 2-12 days

0

7

Simplicity 1921210SM

CAPSCREW, Hex, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

8

Simplicity 1703336SM

FRAME

$

$

Not available

9

Simplicity 1676892SM

WHEEL, Swivel

$307.99

$

Usually ships in 2-12 days

0

10

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1930645SM

NUT, Hex, Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Simplicity 2102004SM

PIN, Clevis, 1/2 x 1-1/2

$9.49

$

In Stock, only 3 left!

0

13

Simplicity 2176012SM

PIN, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

15

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 1 left!

0

16

Simplicity 1700768SM

HANDLE, Lift

$10.99

$

Usually ships in 2-12 days

0

17

Simplicity 1921977SM

CAPSCREW, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 15

0

18

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 18

0

19

Simplicity 2177649SM

WASHER, Spring, 5/16

Note: Special

$9.49

$

In Stock, Qty 5

0

20

Simplicity 1700765SM

HANDLE, Latch

$53.99

$

Usually ships in 2-12 days

0

21

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1920161SM

NUT, Hex, Jam, 5/16-18

$4.49

$

In Stock, Qty 10

0

23

Simplicity 1703335SM

BRACKET, Pivot, R.H.

$40.99

$

Usually ships in 2-12 days

0

24

Simplicity 1703370

DECAL, Max. Capacity

$

$

Not available

25

Simplicity 1921210SM

Capscrew, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

26

Simplicity 1924940SM

Flat Washer, 3/6
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

27

Simplicity 1666332SM

Spacer

$16.99

$

Usually ships in 2-12 days

0

28

Simplicity 1714464SM

Hitch
(Superseded to 1714464ASM)

$118.99

$

Usually ships in 2-12 days

0

29

Simplicity 1916965SM

Lockwasher, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

30

Simplicity 1922130SM

Capscrew, 3/8-16 x 2-1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 9

0

31

Simplicity 1930561SM

Hex Nut, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

Simplicity 1708120SM

DECAL, Max. Cap.

Note: Not Pictured

$6.49

$

Usually ships in 2-12 days

0
