1693175 - Simplicity Ladder Sub-Frame Hitch Ladder Sub-Frame Hitch Parts Diagram

Ladder Sub-Frame Hitch

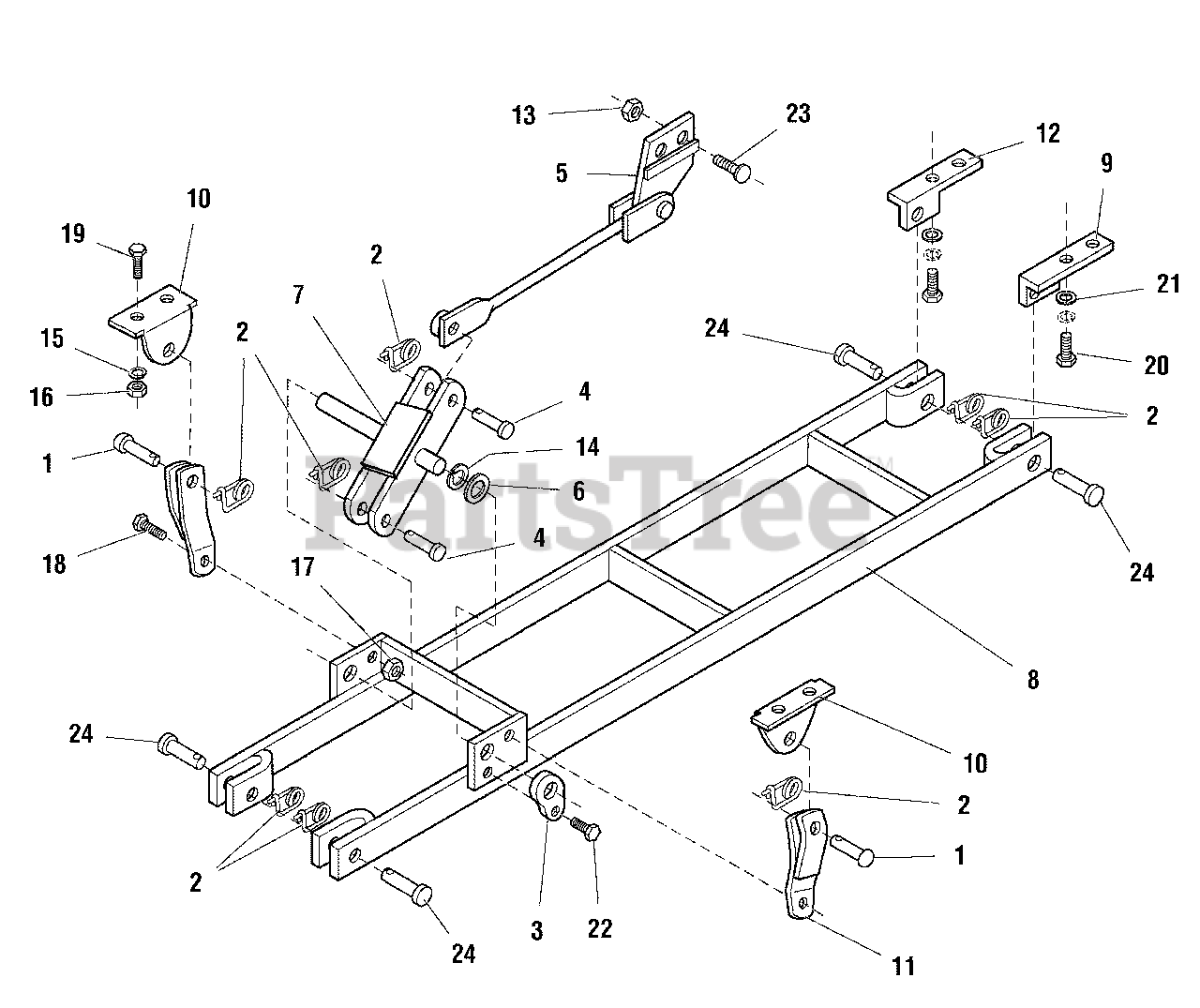

Ladder Sub-Frame Hitch Parts Diagram

  • Title

1

Simplicity 2102004SM

PIN, Round Hd Clevis, 1/2 x 1-1/2

$9.99

$

In Stock, only 2 left!

0

2

Simplicity 2176012SM

CLIP, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 12

0

3

Simplicity 1670728SM

BEARING, Lift Shaft

$16.99

$

Usually ships in 2-12 days

0

4

Simplicity 1711773SM

PIN, Flat Hd Clevis,1/2 x 2

$

$

Not available

5

Simplicity 1720106SM

ARM, Lift
(Superseded to 1720106ASM)

$445.99

$

Usually ships in 2-12 days

0

6

Simplicity 1960201SM

WASHER, 1"

$5.49

$

Usually ships in 2-12 days

0

7

Simplicity 1716490SM

SHAFT & LIFT ARM ASSEMBLY

$291.99

$

Usually ships in 2-12 days

0

8

Simplicity 1716491SM

HITCH ASSEMBLY

$

$

Not available

9

Simplicity 1716493ASM

ANCHOR ASSEMBLY, LH

$114.99

$

Usually ships in 2-12 days

0

10

Simplicity 1716922SM

BRACKET, Front
(Superseded to 1716922ASM)

$56.99

$

Usually ships in 2-12 days

0

11

Simplicity 1716925ASM

BRACKET, Hanger

$71.99

$

Usually ships in 2-12 days

0

12

Simplicity 1717462SM

ANCHOR ASSEMBLY, RH
(Superseded to 1717462ASM)

$306.99

$

Usually ships in 2-12 days

0

13

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, only 4 left!

0

14

Simplicity 1960338SM

RING, Retaining, 1"
(Superseded to 703993)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1917356SM

WASHER, Lock, 5/16
(Superseded to 5025170SM)

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, only 2 left!

0

17

Simplicity 1919439SM

NUT, Hex Nylon Lock, 3/8-16
(Superseded to 703117)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1921210SM

CAPSCREW, Hex Hd, 3/8-16 x 1
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 2 left!

0

19

Simplicity 1921977SM

CAPSCREW, Hex Hd, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 12

0

20

Simplicity 1922664SM

CAPSCREW, Hex Hd, 5/8-11 x 2

$6.49

$

Usually ships in 2-12 days

0

21

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 1931202SM

CAPSCREW, Hex Washer Hd, Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, only 4 left!

0

23

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 1 left!

0

24

Simplicity 1960038SM

PIN, Clevis, 5/8 x 2-1/4

$

$

Not available
