1693228 - Simplicity 50" Turbo Collector 50" Turbo, Mounting Group - 1693228 Parts Diagram

50" Turbo Collector

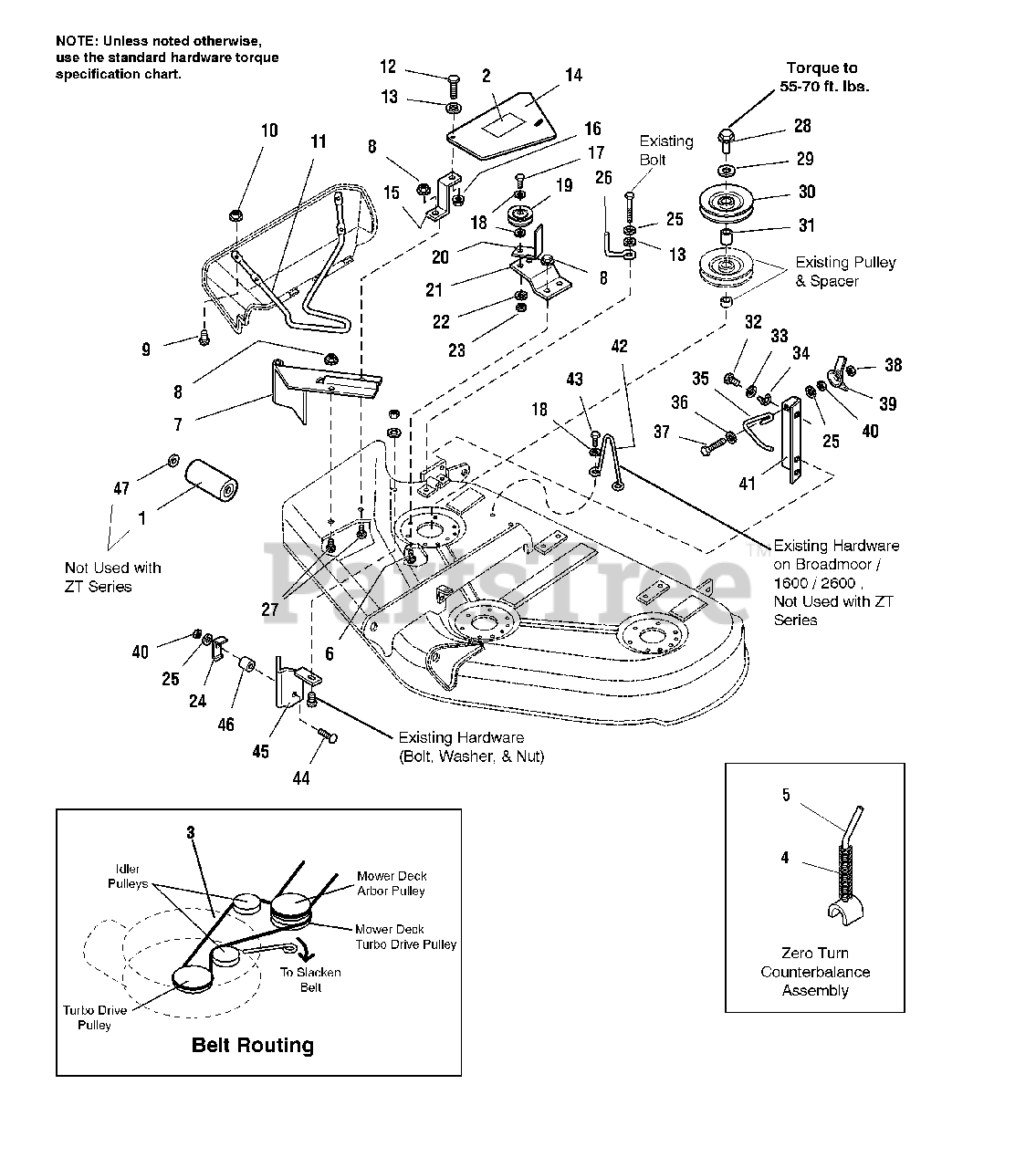

50" Turbo, Mounting Group - 1693228 Parts Diagram

  • Title

1

Simplicity 1713540SM

ROLLER

$43.99

$

Usually ships in 2-12 days

0

2

Simplicity 1717291SM

DECAL, Warning

$13.99

$

Usually ships in 2-12 days

0

3

Simplicity 1707956SM

V-BELT
(Superseded to 1734005SM)

$25.99

$

In Stock, only 1 left!

0

4

Simplicity 1718214SM

SPRING, Counterbalance

$11.99

$

Usually ships in 2-12 days

0

5

Simplicity 1718215SM

LEVER ASSY, Counterbalance

$34.99

$

Usually ships in 2-12 days

0

6

Simplicity 1923325SM

CAPSCREW, Hex Hd, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 20+

0

7

Simplicity 1722546

PIVOT ASSEMBLY
(Superseded to 1722546ASM)

$216.99

$

Usually ships in 2-12 days

0

8

Simplicity 1931277SM

NUT, Hex Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

9

Simplicity 1960404SM

SCREW, Truss Hd, #10-24 x 3/4

$3.99

$

In Stock, only 4 left!

0

10

Simplicity 1933896SM

NUT, Hex, Nylon Lock, #10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

11

Simplicity 1718295ASM

ROD, Deflector

$112.99

$

Usually ships in 2-12 days

0

12

Simplicity 1921333SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, Qty 6

0

13

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 18

0

14

Simplicity 1718309SM

COVER, Belt

$8.49

$

Usually ships in 2-12 days

0

15

Simplicity 1718304ASM

SUPPORT, Belt Cover

$14.99

$

Usually ships in 2-12 days

0

16

Simplicity 1919438SM

NUT, Hex 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 10

0

17

Simplicity 1921969SM

CAPSCREW, Hex Hd 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, only 4 left!

0

18

Simplicity 1924940SM

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 1714817SM

PULLEY ASSEMBLY, Idler
(Superseded to 703056)

$42.99

$

In Stock, Qty 6

0

20

Simplicity 1705277SM

LATCH, Belt Cover

$8.49

$

Usually ships in 2-12 days

0

21

Simplicity 1704768ASM

BRACKET, Idler

$13.99

$

Usually ships in 2-12 days

0

22

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

23

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

24

Simplicity 1705308ASM

BRACKET

$33.99

$

Usually ships in 2-12 days

0

25

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 2172845SM

BELT STOP

$11.99

$

Usually ships in 2-12 days

0

27

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 18

0

28

Simplicity 1713523SM

NUT, Sleeve

Note: Torque to 55-70 ft. lbs.

$41.99

$

In Stock, only 1 left!

0

29

Simplicity 1603592SM

WASHER, Belleville

$11.99

$

Usually ships in 2-12 days

0

30

Simplicity 1709941SM

PULLEY

$28.99

$

Usually ships in 2-12 days

0

31

Simplicity 1713634SM

HUB, Double Pulley, 1.16" Long

$16.99

$

Usually ships in 2-12 days

0

32

Simplicity 1925003SM

CAPSCREW, Hex Hd, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

33

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 18

0

34

Simplicity 1678435SM

BELT STOP, (Height Indicator)

$4.49

$

Usually ships in 2-12 days

0

35

Simplicity 1705064SM

LATCH, Spring

$44.99

$

Usually ships in 2-12 days

0

36

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, Qty 14

0

37

Simplicity 1960318SM

CAPSCREW, Hex Hd, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

38

Simplicity 1923362SM

NUT, Hex Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 12

0

39

Simplicity 1679163SM

NUT, Wing, 5/16

Note: Special

$69.99

$

In Stock, only 1 left!

0

40

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

41

Simplicity 1704982ASM

BRACKET, Anchor

$67.99

$

Usually ships in 2-12 days

0

42

Simplicity 1704098SM

UPSTOP, Wire

$11.99

$

Usually ships in 2-12 days

0

43

Simplicity 1960373SM

CAPSCREW, Hex Washer Hd, Taptite, 5/16
(Superseded to 704146)

$3.99

$

In Stock, Qty 12

0

44

Simplicity 1960223SM

CARRIAGE BOLT, 5/16-18
(Superseded to 703446)

$4.49

$

In Stock, only 1 left!

0

45

Simplicity 1704880ASM

BRACKET ASSEMBLY, Cutoff

$112.99

$

Usually ships in 2-12 days

0

46

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

47

Simplicity 1960520SM

PUSHNUT
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+
