1693236 - Simplicity 50" Mower Deck 50" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

50" Mower Deck

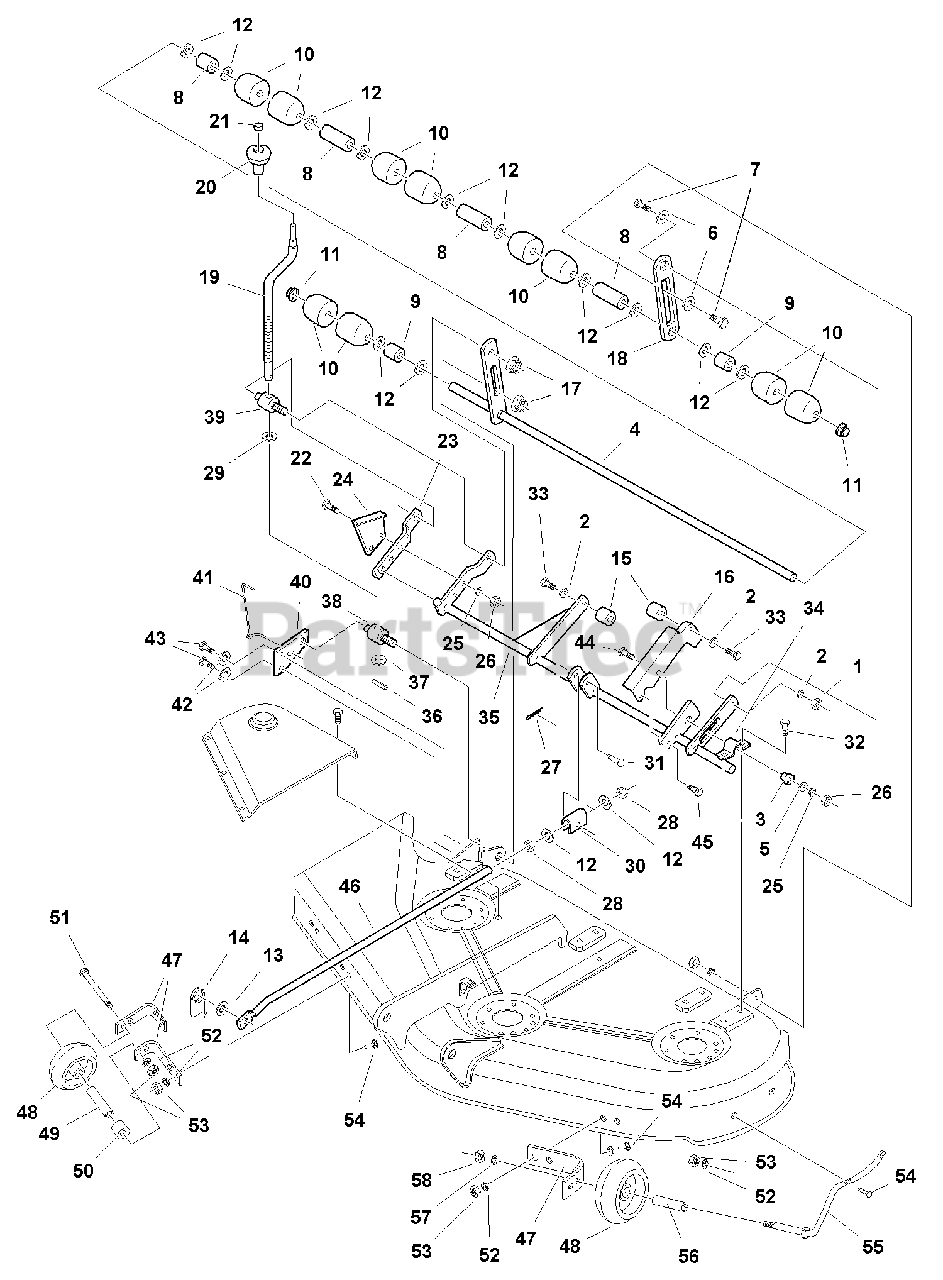

50" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

  • Title

1

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

2

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

3

Simplicity 1714879SM

NUT, Adjuster, Eccentric

$7.99

$

Usually ships in 2-12 days

0

4

Simplicity 1718370SM

SHAFT ASSEMBLY, Roller, 50" (Includes Ref. Nos. 9 & 11)

$49.99

$

Usually ships in 2-12 days

0

5

Simplicity 1924874SM

WASHER ,Plain, 7/8
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 1924361SM

WASHER, Plain, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 6

0

7

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

8

Simplicity 1718371SM

SPACER

$7.99

$

Usually ships in 2-12 days

0

9

Simplicity 1709195SM

SPACER

$5.99

$

In Stock, Qty 9

0

10

Simplicity 1717675SM

ROLLER

$6.99

$

In Stock, Qty 20+

0

11

Simplicity 1960520SM

NUT, Push
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1924940SM

WASHER, Plain, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 2176012SM

CLIP, Pin, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1716010SM

SUPPORT

$23.99

$

Usually ships in 2-12 days

0

16

Simplicity 1718136ASM

ARM, Rear, Adjustable

$20.99

$

Usually ships in 2-12 days

0

17

Simplicity 1930644SM

NUT, Hex Flange Lock, 1/2-13

$3.49

$

In Stock, only 3 left!

0

18

Simplicity 1717674A

BAR, Roller

$

$

Not available

19

Simplicity 1704094SM

CRANK, Cutting Height

$75.99

$

In Stock, only 3 left!

0

20

Simplicity 1714084SM

KNOB, Height Crank

$12.99

$

In Stock, Qty 10

0

21

Simplicity 1960093SM

PAL NUT
(Superseded to 703948)

$4.49

$

In Stock, Qty 19

0

22

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 16

0

23

Simplicity 1704083ASM

ARM, Rear, Mower, RH

$13.99

$

In Stock, only 1 left!

0

24

Simplicity 1704116ASM

BRACKET, Cutting Height
(Superseded to 1704116BMYP)

$11.99

$

In Stock, only 1 left!

0

26

Simplicity 1931277SM

NUT, Hex, 5/16-18 Whiz Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

27

Simplicity 1960074SM

PIN, Hair Clip
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

28

Simplicity 1915726SM

NUT, Hex Jam, 3/4-11
(Superseded to 703912)

$3.49

$

In Stock, only 1 left!

0

29

Simplicity 1960170SM

WASHER, 5/8
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

30

Simplicity 1706645ASM

TRUNNION
(Superseded to 84003858)

$8.49

$

Usually ships in 2-12 days

0

31

Simplicity 2118053SM

PIN, Clevis
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

32

Simplicity 1664847SM

CAPSCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

33

Simplicity 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

34

Simplicity 1665374SM

STRAP, Mower Arm Assembly
(Superseded to 1761690HYP)

$7.99

$

In Stock, Qty 6

0

35

Simplicity 1717149SM

ARM ASSEMBLY, Mower

$

$

Not available

36

Simplicity 2816001SM

PIN, Roll, 1"Long

$4.49

$

In Stock, only 1 left!

0

37

Simplicity 1704097SM

WASHER, Detent

$4.49

$

In Stock, only 1 left!

0

38

Simplicity 1704086SM

TRUNNION

$31.99

$

In Stock, only 2 left!

0

39

Simplicity 1704087SM

TRUNNION, Threaded

$109.99

$

In Stock, only 1 left!

0

40

Simplicity 1704080ASM

PLATE, Mower Support

$8.49

$

In Stock, only 2 left!

0

41

Simplicity 1704114SM

INDICATOR, Cutting Height

$16.99

$

In Stock, only 2 left!

0

42

Simplicity 1919381SM

WASHER, Flat, 5/16
(Superseded to 703298)

$4.49

$

In Stock, Qty 14

0

43

Simplicity 1931202SM

CAPSCREW, Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, Qty 17

0

44

Simplicity 1960223SM

CARRIAGE BOLT, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, only 1 left!

0

45

Simplicity 1960594SM

CAPSCREW, Taptite, 5/16-18 x 7/8

$3.49

$

Usually ships in 2-12 days

0

46

Simplicity 1717152SM

ROD, Adjustment

$31.99

$

In Stock, only 1 left!

0

47

Simplicity 1718340SM

BRACKET, Anti-Scalp Roller

$9.99

$

In Stock, only 3 left!

0

48

Simplicity 1716353SM

WHEEL, Gauge

$22.99

$

In Stock, Qty 18

0

49

Simplicity 1718510SM

SPACER

$14.99

$

In Stock, only 1 left!

0

50

Simplicity 1718511SM

SPACER

$11.99

$

In Stock, only 1 left!

0

51

Simplicity 1925692SM

CAPSCREW, Hex Head, 5/16-18 x 4 1/2

$5.99

$

Usually ships in 2-12 days

0

52

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

53

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

54

Simplicity 1931334SM

CARRIAGE BOLT, 5/16-18 x 7/8
(Superseded to 704065)

$4.49

$

In Stock, Qty 12

0

55

Simplicity 1703206SM

ROD ASSEMBLY, Roller, LH

$43.99

$

Usually ships in 2-12 days

0

56

Simplicity 1718509SM

SPACER

$7.49

$

Usually ships in 2-12 days

0

57

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

58

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 15

0
