1693238 - Simplicity Hydraulic Lift & Angling Kit Hydraulic Lift & Angling kit - Cylinder Mounting Group Parts Diagram

Hydraulic Lift & Angling Kit

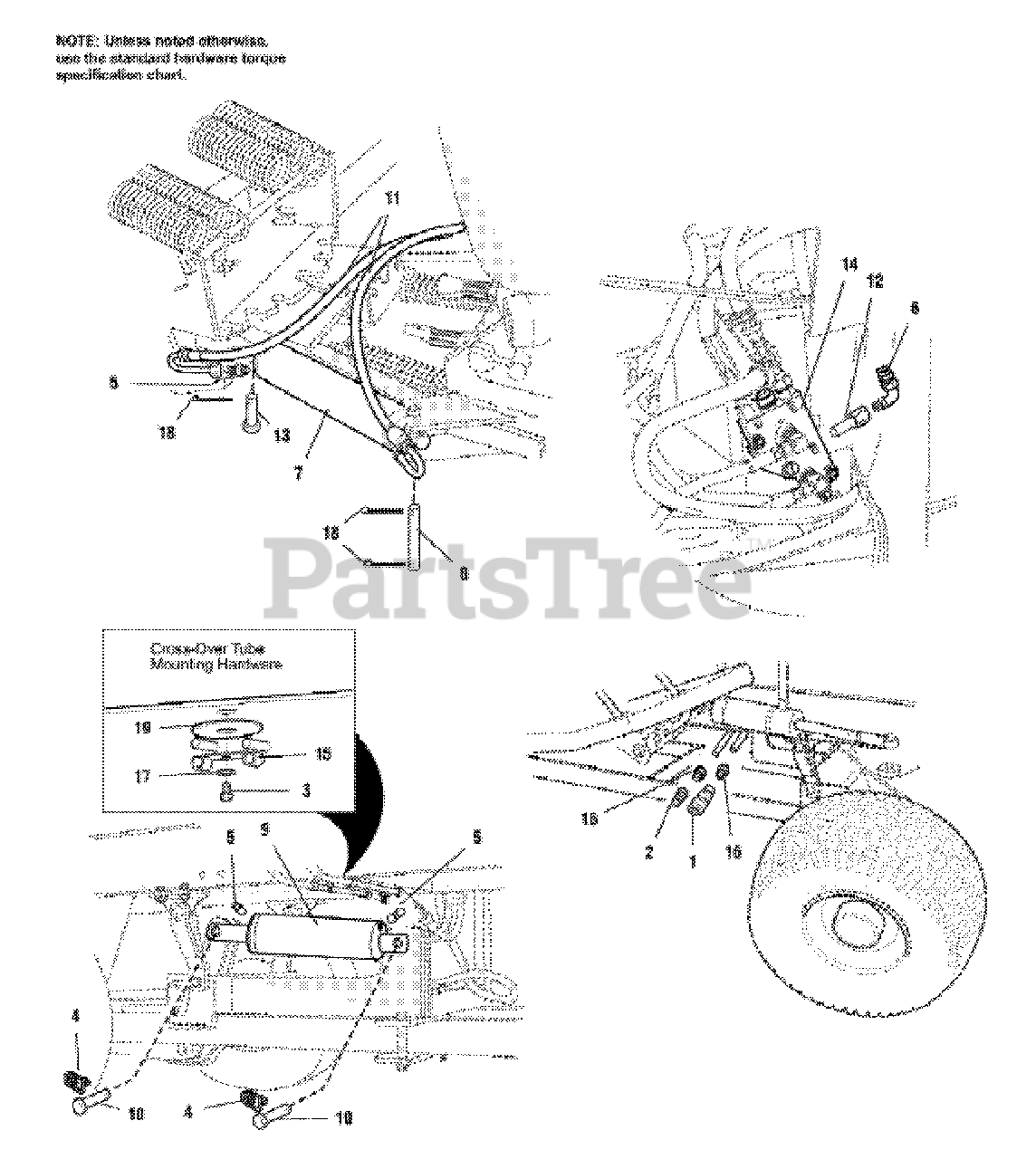

Hydraulic Lift & Angling kit - Cylinder Mounting Group Parts Diagram

  • Title

1

Simplicity 1718434SM

LEVER ASSEMBLY

$

$

Not available

2

Simplicity 1701011SM

TIE, Self-Locking

$5.49

$

In Stock, only 2 left!

0

3

Simplicity 2819171SM

FITTING, Cylinder, Male

$5.99

$

Usually ships in 2-12 days

0

4

Simplicity 1685347SM

CYLINDER, Lift

$494.99

$

Usually ships in 2-12 days

0

5

Simplicity 2176012SM

CLIP, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 1722819SM

PIN, Clevis

$6.99

$

In Stock, Qty 10

0

7

Simplicity 1717645SM

SUPPORT ASSEMBLY

$

$

Not available

8

Simplicity 1718417SM

HOSE, Hydraulic, 1/2" x 67"

$131.99

$

Usually ships in 2-12 days

0

9

Simplicity 1718442SM

HOSE, Hydraulic, 1/2 x 69"

$

$

Not available

10

Simplicity 2831230SM

FITTING, Tube, Male, Tall

$18.99

$

Usually ships in 2-12 days

0

11

Simplicity 2822522SM

FITTING, Tube, Male, Short

$6.49

$

Usually ships in 2-12 days

0

12

Simplicity 1718419SM

VALVE ASSEMBLY, Two-Spool

$1037.99

$

Usually ships in 2-12 days

0

13

Simplicity 1920328SM

CAPSCREW, Hex Hd, 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

In Stock, only 1 left!

0

14

Simplicity 1916966SM

WASHER, Lock, 1/2
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

15

Simplicity 1916951SM

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

16

Simplicity 1718436SM

FITTING, Tube, Male

$2.99

$

Usually ships in 2-12 days

0

17

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1918452SM

PIN, Cotter
(Superseded to 703795)

$5.99

$

Usually ships in 2-12 days

0

19

Simplicity 1920283SM

WASHER, Large 5/16

$4.99

$

In Stock, Qty 6

0
