1693239 - Simplicity Auxiliary Hydraulic Lift Kit Auxiliary Hydraulic Lift Kit Parts Diagram

Auxiliary Hydraulic Lift Kit

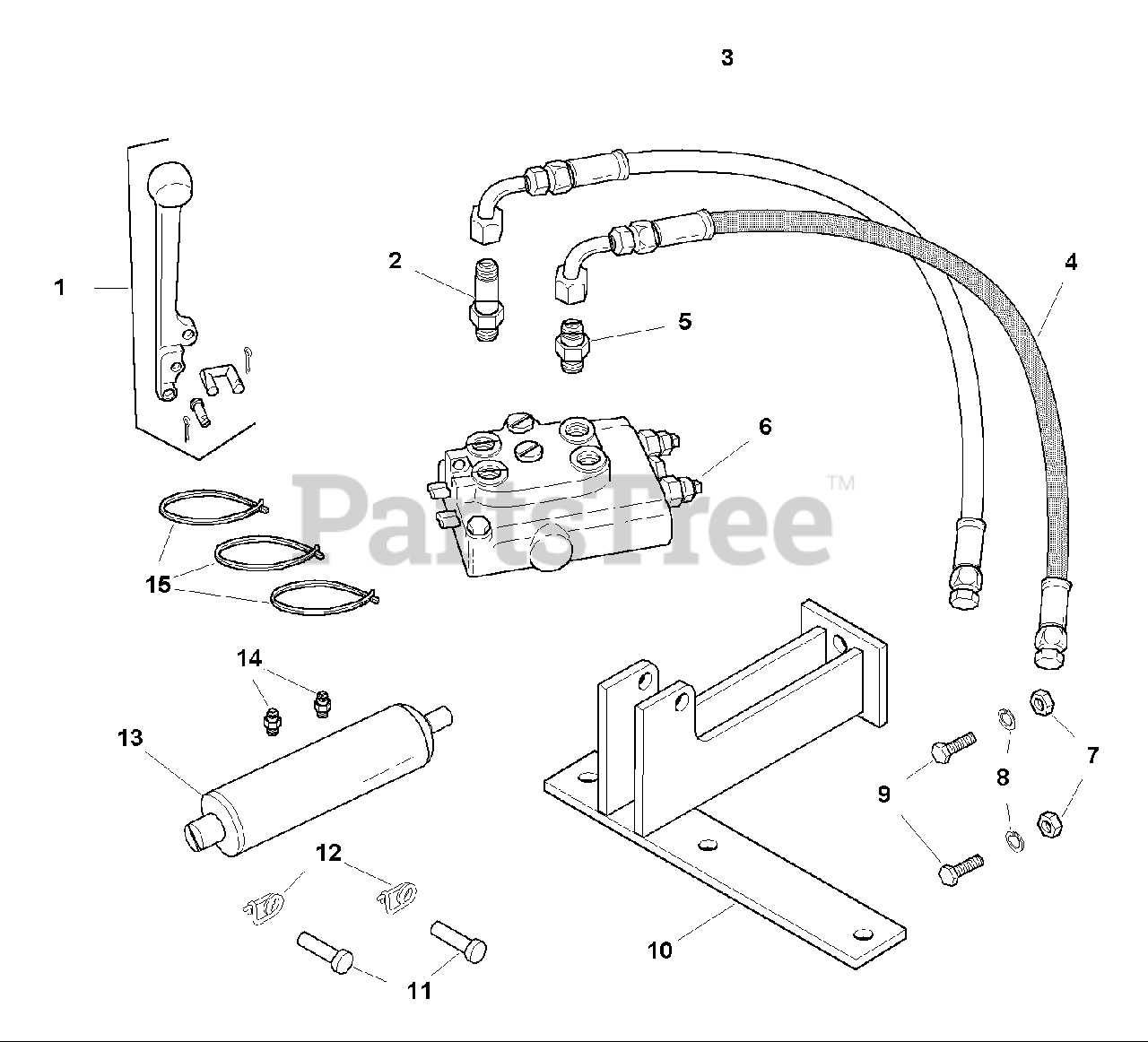

Auxiliary Hydraulic Lift Kit Parts Diagram

  • Title

1

Simplicity 1718434SM

LEVER, LINK & PIN ASSEMBLY

$

$

Not available

2

Simplicity 2831230SM

FITTING, Male

$18.99

$

Usually ships in 2-12 days

0

3

Simplicity 1718417SM

HOSE ASSEMBLY, 67" Long w/Fitting

$131.99

$

Usually ships in 2-12 days

0

4

Simplicity 1718442SM

HOSE ASSEMBLY, 69" Long w/Fitting

$

$

Not available

5

Simplicity 2822522SM

FITTING, Male

$6.49

$

Usually ships in 2-12 days

0

6

Simplicity 1718419SM

VALVE ASSEMBLY

$1037.99

$

Usually ships in 2-12 days

0

7

Simplicity 1916951SM

NUT, Hex 1/2-13
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

8

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 1920328SM

CAPSCREW, Hex Head, 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

In Stock, only 3 left!

0

10

Simplicity 1717645SM

SUPPORT ASSEMBLY

$

$

Not available

11

Simplicity 1722819SM

PIN, Clevis

$6.99

$

In Stock, Qty 10

0

12

Simplicity 2176012SM

RETAINER, Pin, Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1685347SM

CYLINDER ASSEMBLY

$494.99

$

Usually ships in 2-12 days

0

14

Simplicity 2819171SM

FITTING, Male

$5.99

$

Usually ships in 2-12 days

0

15

Simplicity 1701011SM

TIE

$5.49

$

In Stock, only 2 left!

0
