1693427 - Simplicity Arm Rest Accessory for ZT Series Arm Rest Accessory - 1693427 Parts Diagram

Arm Rest Accessory for ZT Series

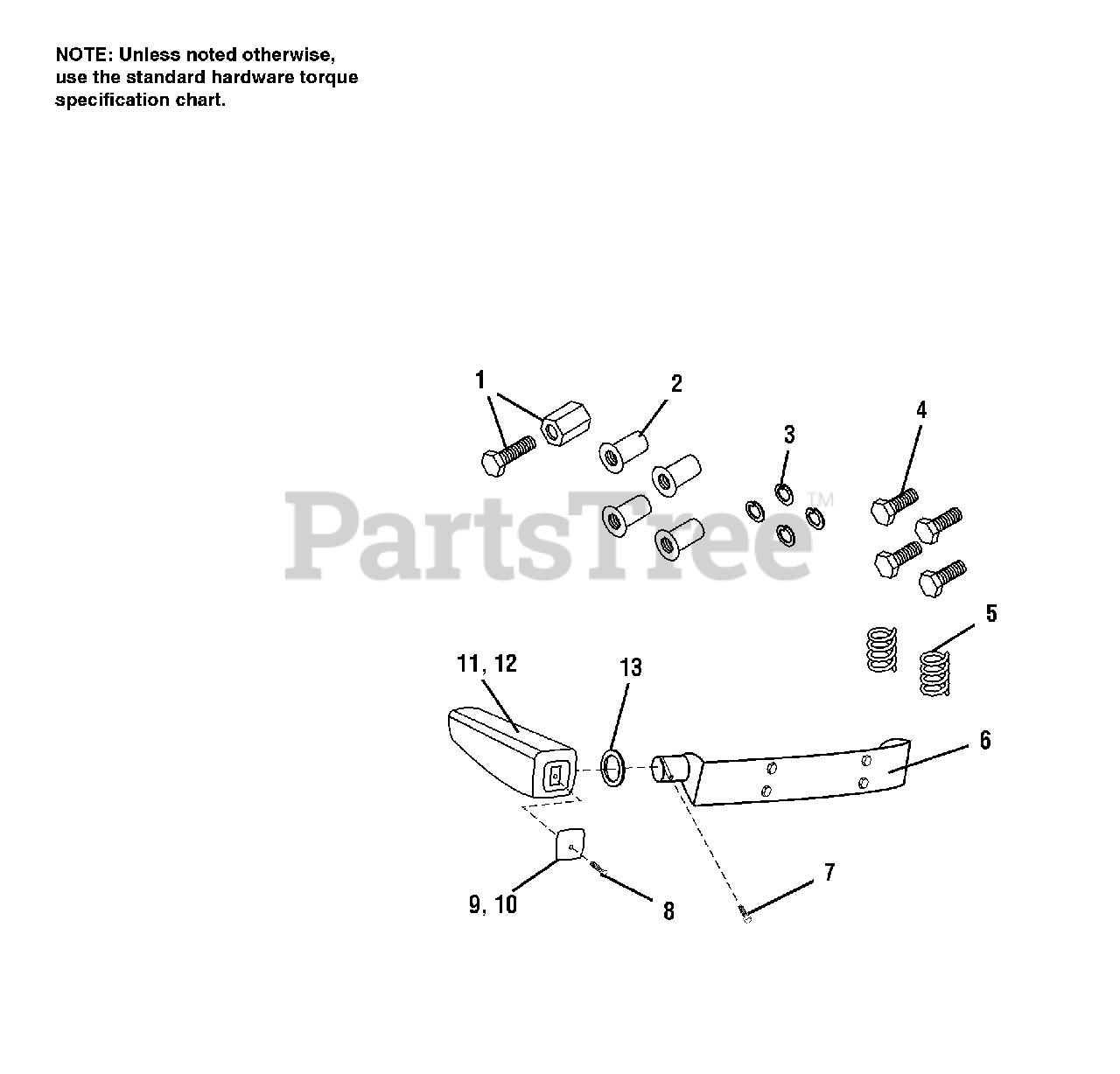

Arm Rest Accessory - 1693427 Parts Diagram

  • Title

1

INSERT TOOL

$

$

Not available

2

Snapper 1718852SM

INSERT-NUT, Open End

$5.99

$

Usually ships in 2-12 days

0

3

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

4

Simplicity 1921965SM

BOLT, 3/8-16 x 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

5

Simplicity 1719363

SPRING, Compression

$

$

Not available

6

BRACKET, Arm Rest Mounting

$

$

Not available

7

ARM REST STOP

$

$

Not available

8

SCREW, Tapping, #10 x 5/8

$

$

Not available

9

PLATE, Cover, LH

$

$

Not available

10

PLATE, Cover, RH

$

$

Not available

11

ARM REST, LH

$

$

Not available

12

ARM REST, RH

$

$

Not available

13

WAVE WASHER

$

$

Not available

Simplicity 1686729SM

ARM REST REPAIR KIT, LH

$

$

Not available

Simplicity 1686728SM

ARM REST REPAIR KIT, RH

$

$

Not available

Simplicity 1693427

ARM REST ACCESSORY

Note: Used with seats P/N's 1715912 & 1718851 ONLY.

$

$

Not available

Simplicity 1715912SM

SEAT - 17.76 BACK

$473.99

$

Usually ships in 2-12 days

0

Simplicity 1687020SM

SEAT W/CUSHION-S

$336.99

$

Usually ships in 2-12 days

0
