1693526 - Simplicity Express 44" Lawn Tractor, 17hp Seat & Seat Deck Group Parts Diagram

Express 44" Lawn Tractor, 17hp

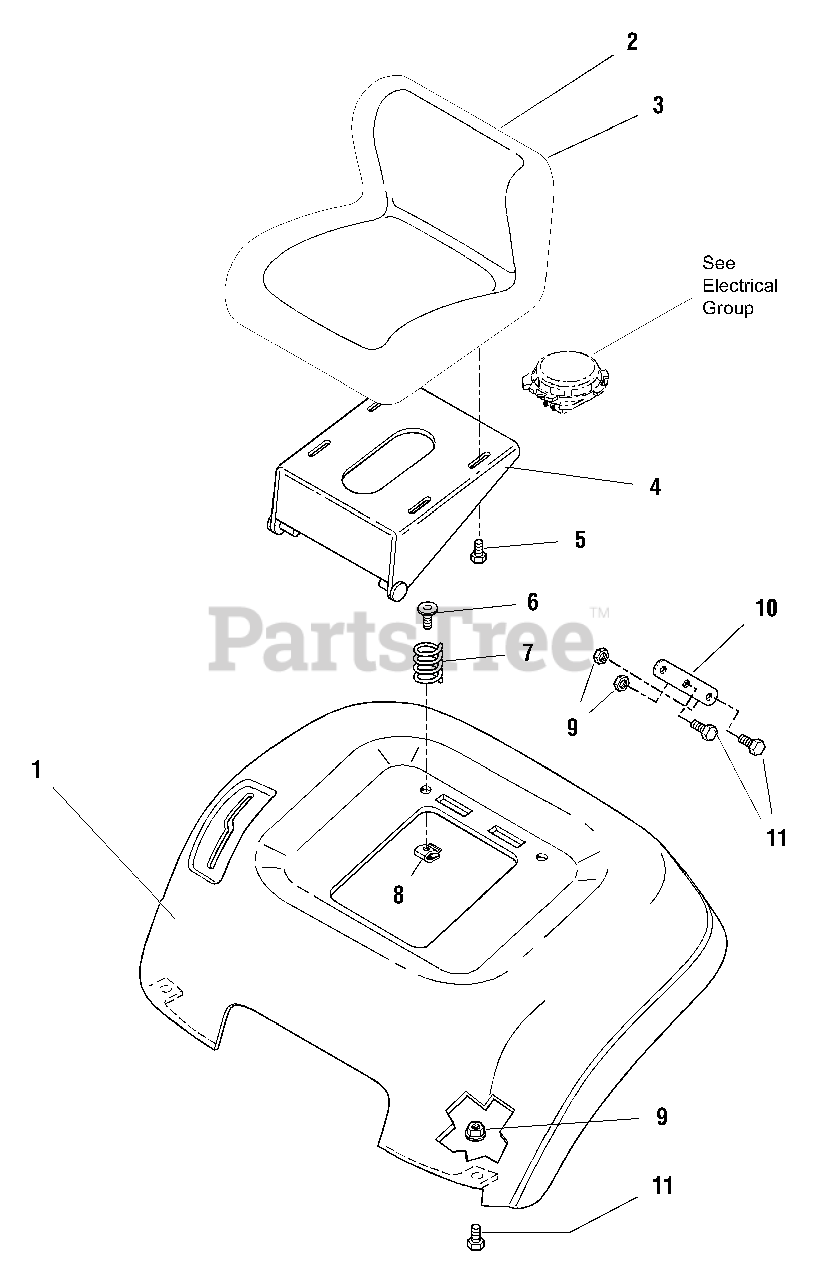

Seat & Seat Deck Group Parts Diagram

  • Title

1

Simplicity 1729744SM

SEAT DECK, (Cardinal Red)

$216.99

$

Usually ships in 2-12 days

0

2

Simplicity 1713839SM

SEAT, Black
(Superseded to 1687020SM)

$

$

Not available

3

Simplicity 1714482

SEAT, Cover

$

$

Not available

4

Simplicity 1719774SM

SUPPORT & PINS ASSEMBLY

$76.99

$

In Stock, only 1 left!

0

5

Simplicity 1931648SM

CAPSCREW, Whiz Lock Hex Hd, 5/16-18 x 1/2
(Superseded to 7091525YP)

$3.49

$

In Stock, only 1 left!

0

6

Simplicity 1960486SM

CAPSCREW, Flat Hd, Hex Socket, 5/16 - 18 x 1-1/4

$6.99

$

Usually ships in 2-12 days

0

7

Simplicity 1708360SM

SPRING

$14.99

$

In Stock, only 4 left!

0

8

Simplicity 1935255SM

SPEED NUT, Tinnerman Lug Type, 5/16-18

$3.49

$

In Stock, Qty 8

0

9

Simplicity 1931277SM

NUT, Hex Flange Whiz-Lock, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

10

Simplicity 1713758SM

BAR, Seat Pivot

$8.99

$

Usually ships in 2-12 days

0

11

Simplicity 1930591SM

CAPSCREW, Whiz Lock Hex Hd, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 19

0
