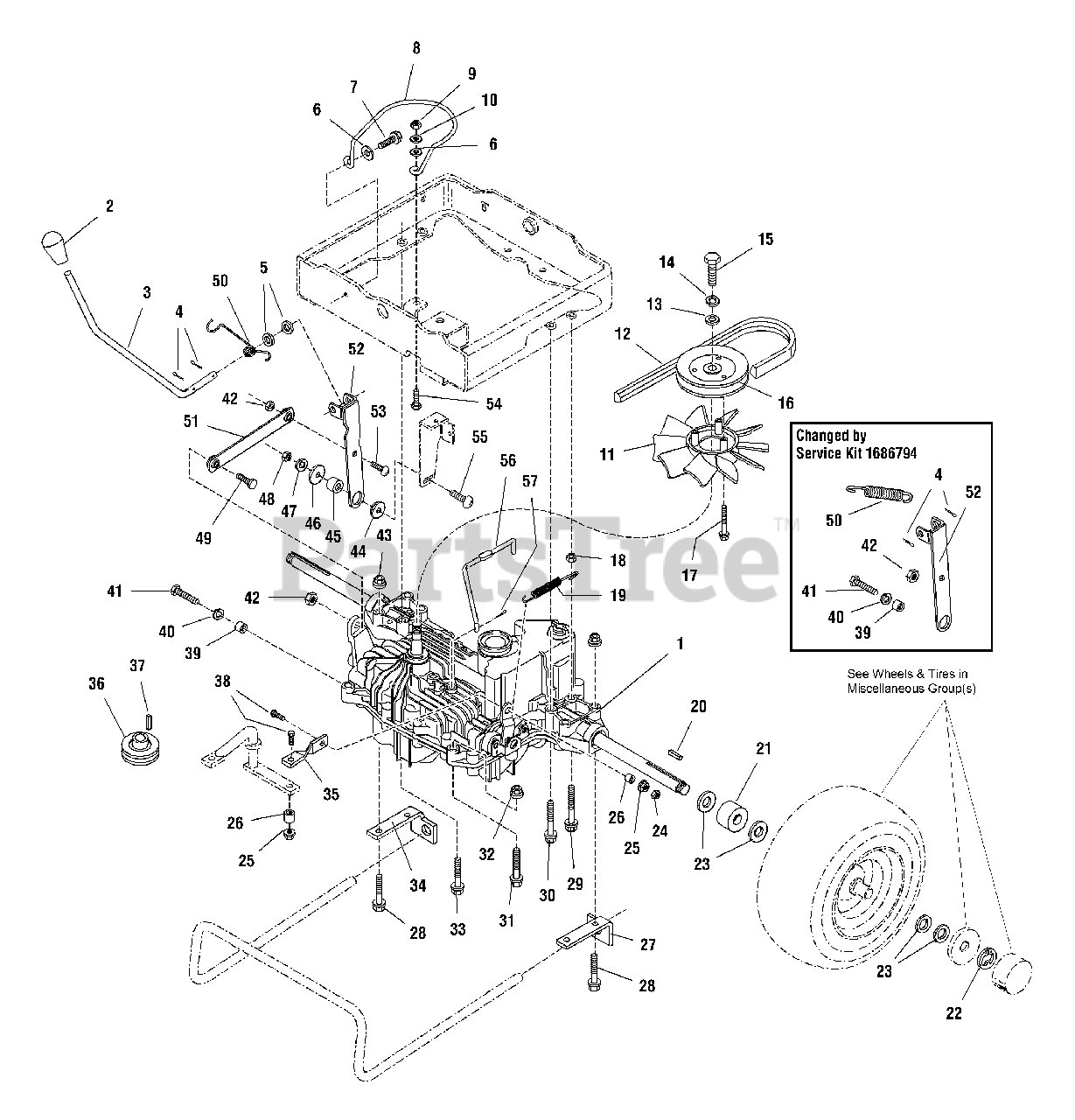

1693526 - Simplicity Express 44" Lawn Tractor, 17hp Transmission Drive & Carrier Group - Tuff Torq K51 Parts Diagram

Express 44" Lawn Tractor, 17hp

Transmission Drive & Carrier Group - Tuff Torq K51 Parts Diagram

  • Title

1

Simplicity 1719735SM

TRANSMISSION ASSEMBLY

$2165.99

$

Usually ships in 2-12 days

0

2

Simplicity 1713843SM

KNOB, Plastic, Gear Shift

$12.99

$

Usually ships in 2-12 days

0

3

Simplicity 1719469SM

ROD, Shift

$17.99

$

Usually ships in 2-12 days

0

4

Simplicity 1918448SM

PIN, Cotter, 3/32 x 1

$4.49

$

In Stock, only 1 left!

0

5

Simplicity 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 18

0

7

Simplicity 1960541SM

CAPSCREW, Taptite Hex Washer Hd, 5/16-18 x 3/4

$3.49

$

In Stock, only 1 left!

0

8

Simplicity 1717292SM

GUIDE, Belt

$12.99

$

Usually ships in 2-12 days

0

9

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1717425SM

FAN

$13.99

$

Usually ships in 2-12 days

0

12

Simplicity 1717397SM

BELT, Drive

$64.99

$

In Stock, Qty 5

0

13

Simplicity 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, only 2 left!

0

14

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

15

Simplicity 1960613SM

CAPSCREW, Hex Hd, M06 - 1.00 x 30mm

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 1719902SM

PULLEY & HUB ASSEMBLY

$76.99

$

In Stock, only 1 left!

0

17

Simplicity 1930810SM

CAPSCREW, Taptite Hex Washer Hd, 1/4-20 x 1-1/2

$3.49

$

In Stock, only 1 left!

0

18

Simplicity 1928698SM

JAM NUT, Top Lock, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

19

Simplicity 2106681SM

SPRING, Brake Return

$16.99

$

Usually ships in 2-12 days

0

20

Simplicity 1717749SM

KEY
(Superseded to 021553MA)

$4.99

$

In Stock, Qty 6

0

21

Simplicity 1717451SM

SPACER

Note: (Gear Models)

$12.99

$

In Stock, only 1 left!

0

22

Simplicity 2827794SM

E-RING

Note: (Gear Models)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 2860202SM

WASHER, 3/4

Note: (Gear Models)

$4.49

$

In Stock, Qty 13

0

24

Simplicity 1923358SM

LOCK NUT, Center, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

25

Simplicity 1930642SM

NUT, Hex Flange Lock, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 4 left!

0

26

Simplicity 1706495SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

27

Simplicity 1717427A

ANCHOR, Torsion Bar, L.H.

$

$

Not available

28

Simplicity 1960586SM

CAPSCREW, Whiz Lock Hex Hd, 5/16-18 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

29

Simplicity 2860584SM

CAPSCREW, Taptite Hex Washer Hd, 5/16-18 x 3-1/2

$

$

Not available

30

Simplicity 2860583SM

CAPSCREW, Taptite Hex Washer Hd, 5/16-18 x 3

$3.49

$

Usually ships in 2-12 days

0

31

Simplicity 1960585SM

CAPSCREW, Whiz Lock Hex Hd, 5/16-18 x 1-1/4

$5.49

$

Usually ships in 2-12 days

0

32

Simplicity 1927557SM

NUT, Hex, Flange Whiz Lock, 5/16-18

$4.99

$

In Stock, Qty 10

0

33

Simplicity 2860551SM

CAPSCREW, Taptite Hex Washer Hd, 5/16-18 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

34

Simplicity 1717428A

ANCHOR, Torsion Bar, R.H.

$

$

Not available

35

Simplicity 1717737SM

BRAKE LINK

$

$

Not available

36

Simplicity 1723497SM

PULLEY ASSEMBLY, Engine PTO

Note: (Hydro Models)

$155.99

$

Usually ships in 2-12 days

0

37

Simplicity 2171241SM

KEY, Hi-Pro

Note: (Hydro Models)

$5.99

$

Usually ships in 2-12 days

0

38

Simplicity 1921960SM

CAPSCREW, Hex Hd, 1/4-20 x 1

$3.49

$

In Stock, only 2 left!

0

39

Simplicity 1720675SM

SPACER

$9.99

$

Usually ships in 2-12 days

0

40

Simplicity 1918199SM

LOCKWASHER, Spring, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 6

0

41

Simplicity 1950036SM

CAPSCREW, Hex Hd, M10-1 1/2 x 25MM

$3.99

$

Usually ships in 2-12 days

0

42

Simplicity 1935048SM

NUT, Hex Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

43

Simplicity 1931277SM

NUT, Hex Flange Whiz-Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

44

Simplicity 1960534SM

WASHER, 3/8

$

$

Not available

45

Simplicity 2108717SM

SPACER

$17.99

$

In Stock, only 4 left!

0

46

Simplicity 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 16

0

47

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 10

0

48

Simplicity 1916950SM

NUT, ESNA Hex Lock, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 12

0

49

Simplicity 1921977SM

CAPSCREW, Hex Hd, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 11

0

50

Simplicity 1678341SM

SPRING, Return

Note: Replaced by Service Kit 1686794

$21.99

$

Usually ships in 2-12 days

0

50

Simplicity 1721041SM

SPRING, Torsion

$9.99

$

Usually ships in 2-12 days

0

51

Simplicity 1719728SM

LINK, Lower Shift

$12.99

$

Usually ships in 2-12 days

0

52

Simplicity 1720681SM

LEVER & CLEVIS ASSEMBLY
(Superseded to 1724233SM)

Note: Replaced by Service Kit 1686794

$35.99

$

Usually ships in 2-12 days

0

52

Simplicity 1720681SM

LEVER & CLEVIS ASSEMBLY
(Superseded to 1724233SM)

$35.99

$

Usually ships in 2-12 days

0

53

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

54

Simplicity 1921333SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

55

Simplicity 1960268SM

CARRIAGE BOLT, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 14

0

56

Simplicity 1717442SM

ROD, Transmission Release

$36.99

$

Usually ships in 2-12 days

0

57

Simplicity 1918447SM

PIN, Cotter, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

Simplicity 1686794SM

Service Kit

$256.99

$

Usually ships in 2-12 days

0
