1693527 - Simplicity 44" Mower Deck 44" Mower Deck - Housing, Arbors & Blades Parts Diagram

44" Mower Deck

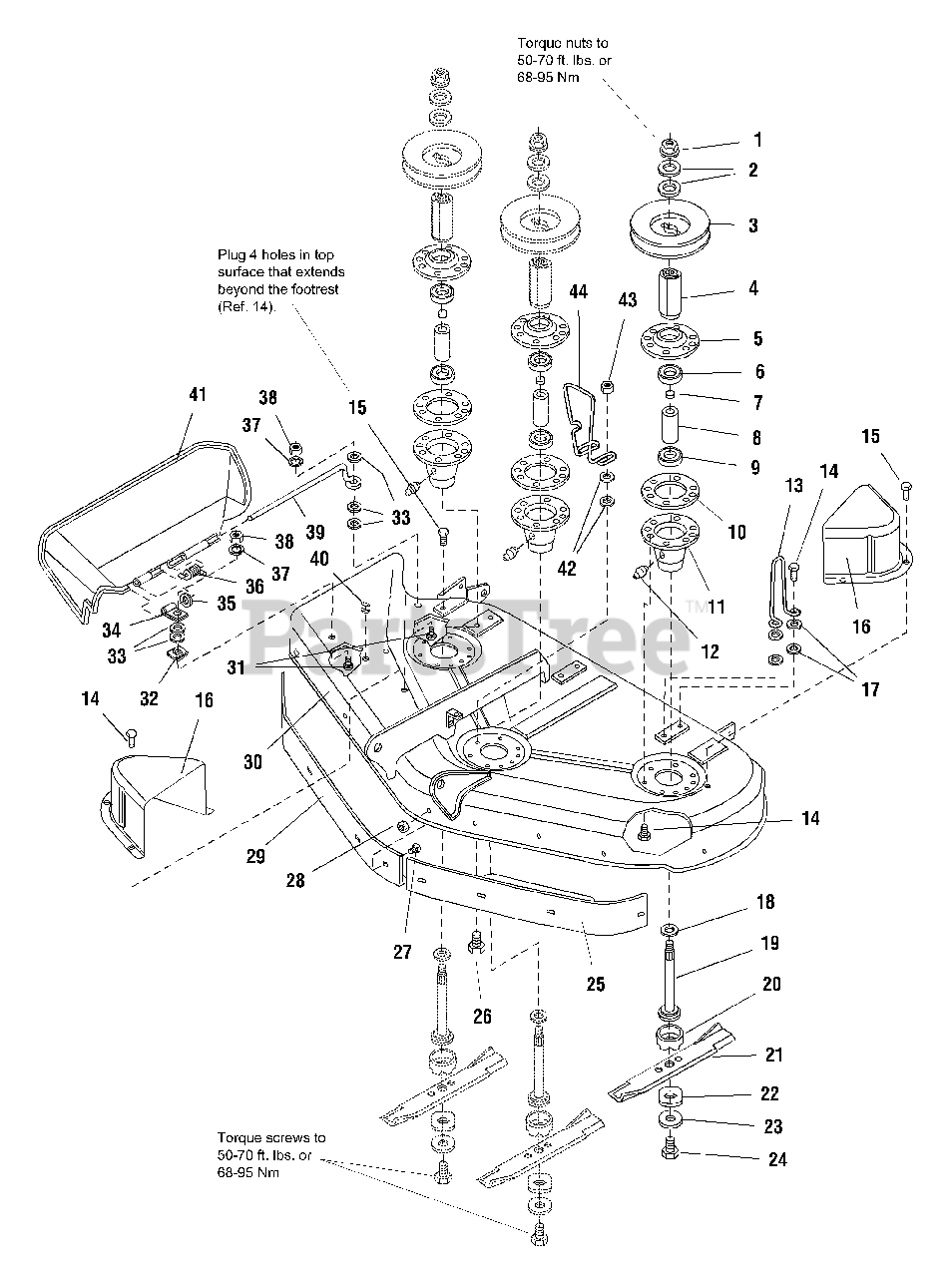

44" Mower Deck - Housing, Arbors & Blades Parts Diagram

  • Title

1

Simplicity 1714419SM

NUT, Hex, Flange, 9/16-8

$5.99

$

In Stock, Qty 20+

0

2

Simplicity 1713675SM

WASHER, Belleville

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1713161SM

PULLEY, R.H. Arbor, Center Arbor & L.H. Arbor

$20.99

$

In Stock, Qty 20+

0

4

Simplicity 1713616SM

HUB, Adapter (R.H., Center & L.H.)

$24.99

$

In Stock, Qty 13

0

5

Simplicity 1655729ASM

COVER, Arbor Housing

$14.99

$

In Stock, Qty 20+

0

6

Simplicity 2108202SM

BEARING, Upper

$11.99

$

In Stock, Qty 20+

0

7

Simplicity 1715724SM

SPACER, Sleeve, Upper Bearing

$9.49

$

In Stock, Qty 20+

0

8

Simplicity 1732544SM

SPACER, Arbor, Internal

$5.49

$

In Stock, Qty 20+

0

9

Simplicity 1705897SM

BEARING, Lower

$8.49

$

In Stock, Qty 20+

0

10

Simplicity 1707335SM

GASKET, Foam

$5.99

$

In Stock, Qty 20+

0

11

Simplicity 1713338ASM

HOUSING ASSEMBLY, Arbor Bottom, w/Lube Fitting

Note: (Includes Ref. No. 12)

$41.99

$

In Stock, Qty 20+

0

12

Simplicity 1704314SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 1720659SM

UP-STOP, 5 1/4 High

$12.99

$

Usually ships in 2-12 days

0

14

Simplicity 1960373SM

CAPSCREW, Taptite Hex Washer Hd, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 1664847SM

CAPSCREW, Taptite Hex Washer Hd, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1720560ASM

COVER, Arbor
(Superseded to 84002518)

$90.99

$

In Stock, only 1 left!

0

17

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, Qty 11

0

18

Simplicity 1713619SM

WASHER

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1713612SM

SHAFT, Arbor (R.H., Center & L.H.)

$31.99

$

Usually ships in 2-12 days

0

20

Simplicity 1713196SM

SHIELD, Grass, Lower

$9.49

$

In Stock, Qty 20+

0

21

Simplicity 1704100ASM

BLADE, Mower, 16-1/8
(Superseded to 1716696ASM)

$25.99

$

In Stock, Qty 20+

0

22

Simplicity 1713089SM

WASHER, Hex

$4.99

$

In Stock, Qty 20+

0

23

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

24

Simplicity 2823471SM

CAPSCREW, Hex, Hd., 7/16-14 x 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

25

Simplicity 1716879ASM

BAFFLE, Blowout, L.H.

Note: (Export Only)

$115.99

$

Usually ships in 2-12 days

0

26

Simplicity 1930600SM

CAPSCREW, Taptite Hex Washer Hd, 5/16-18 x 1 1/2

$4.99

$

In Stock, Qty 20+

0

27

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

Note: (Export Only)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 1935048SM

NUT, Hex Flange 2-Way Lock 5/16-18
(Superseded to 704067)

Note: (Export Only)

$3.99

$

In Stock, Qty 20+

0

29

Simplicity 1716878ASM

BAFFLE, Blowout R.H.

Note: (Export Only)

$97.99

$

Usually ships in 2-12 days

0

30

Simplicity 41721165

HOUSING ASSEMBLY, (Cardinal Red)

$

$

Not available

31

Simplicity 1931318SM

CARRIAGE BOLT, 1/4-20 x 7/8

Note: (Domestic Only)

$4.49

$

In Stock, only 1 left!

0

32

Simplicity 1960518SM

NUT, Push On
(Superseded to 703826)

$3.49

$

In Stock, Qty 15

0

33

Simplicity 1960353SM

WASHER, Plain, 1/4
(Superseded to 703229)

$4.49

$

Usually ships in 2-12 days

0

34

Simplicity 1704873SM

CLAMP

$4.49

$

Usually ships in 2-12 days

0

35

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 17

0

36

Simplicity 1723938SM

SPRING, Deflector Retaining

$6.49

$

Usually ships in 2-12 days

0

37

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

38

Simplicity 1916622SM

NUT, Hex, 1/4-20, UNC
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

39

Simplicity 1706709SM

ROD, Deflector, Front

$8.49

$

In Stock, Qty 6

0

40

Simplicity 1705115SM

PLUG, Hole

$4.49

$

In Stock, Qty 5

0

41

Simplicity 1705449SM

DEFLECTOR, Plastic

$122.99

$

In Stock, Qty 12

0

42

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

43

Simplicity 1927557SM

NUT, Hex Flange Whiz Lock, 5/16-18

$4.99

$

In Stock, Qty 10

0

44

Simplicity 1704099SM

BELT STOP, Center

$21.99

$

Usually ships in 2-12 days

0
