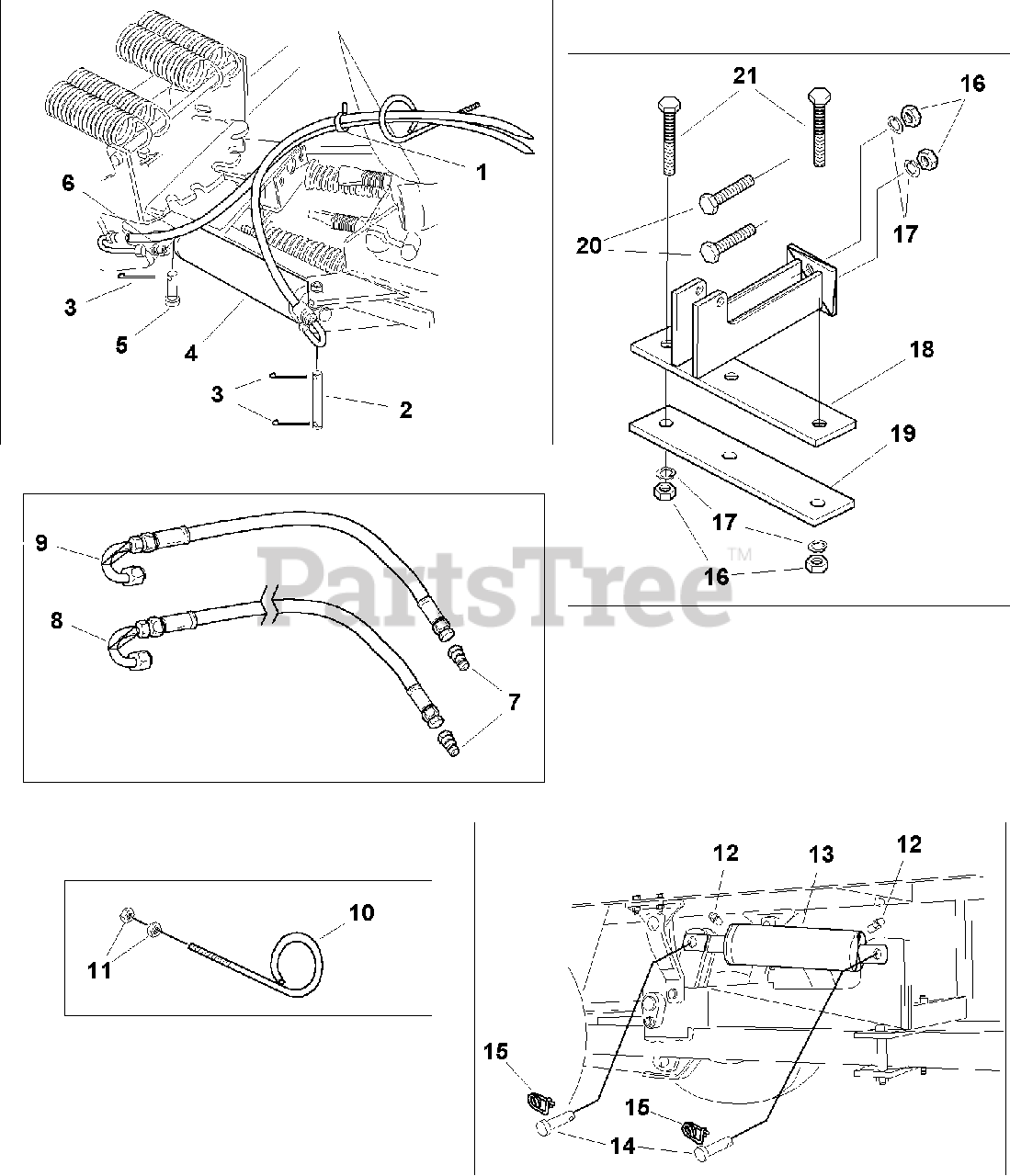

1693566 - Simplicity Front Cylinder Kit Hydraulic Angling & Lift Kit, Front Parts Diagram

Front Cylinder Kit

Hydraulic Angling & Lift Kit, Front Parts Diagram

  • Title

1

Simplicity 1701011SM

TIE, Self Locking

$5.49

$

Usually ships in 2-12 days

0

2

Simplicity 1960277SM

PIN, Yoke

$12.99

$

Usually ships in 2-12 days

0

3

Simplicity 1918452SM

PIN, Cotter
(Superseded to 703795)

$6.49

$

Usually ships in 2-12 days

0

4

Simplicity 1677214SM

ANGLING CYLINDER ASSEMBLY

$

$

Not available

5

Simplicity 1700394SM

PIN, Flat Head, Drilled, 5/8 x 1-5/8

$20.99

$

Usually ships in 2-12 days

0

6

Simplicity 2819171SM

FITTING

$6.49

$

In Stock, only 2 left!

0

7

Simplicity 2173359SM

NOSE PIECE ASSEMBLY

$45.99

$

Usually ships in 2-12 days

0

8

Simplicity 5045503

HOSE ASSEMBLY, Length 17.0"
(Superseded to 1719392SM)

$

$

Not available

9

Simplicity 1719565SM

HOSE ASSEMBLY, Length 50.0"

$85.99

$

Usually ships in 2-12 days

0

10

Simplicity 1719586SM

HOSE SUPPORT

$24.99

$

Usually ships in 2-12 days

0

11

Simplicity 1931277SM

NUT, Hex, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

12

Simplicity 2819171SM

TUBE FITTING, Male

$6.49

$

In Stock, only 2 left!

0

13

Simplicity 1716944SM

LIFT CYLINDER ASSEMBLY

$610.99

$

Usually ships in 2-12 days

0

14

Simplicity 1722819SM

PIN, Clevis

$6.99

$

In Stock, Qty 20+

0

15

Simplicity 2176012SM

PIN, Retainer
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1916951SM

NUT, Hex, 1/2-13
(Superseded to 703340)

$8.49

$

In Stock, only 1 left!

0

17

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 1717645SM

SUPPORT ASSEMBLY, Cylinder

$

$

Not available

19

Simplicity 1717642ASM

CLAMP, Plate

$21.99

$

Usually ships in 2-12 days

0

20

Simplicity 1920328SM

CAPSCREW, Hex Head,1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

In Stock, only 2 left!

0

21

Simplicity 1960286SM

CAPSCREW, Hex Head,1/2-13 x 3-1/2

$

$

Not available
