1693567 - Simplicity Legacy 60" Garden Tractor, 25hp 60" Mower Deck - Deflector & Stone Guard Group Parts Diagram

Legacy 60" Garden Tractor, 25hp

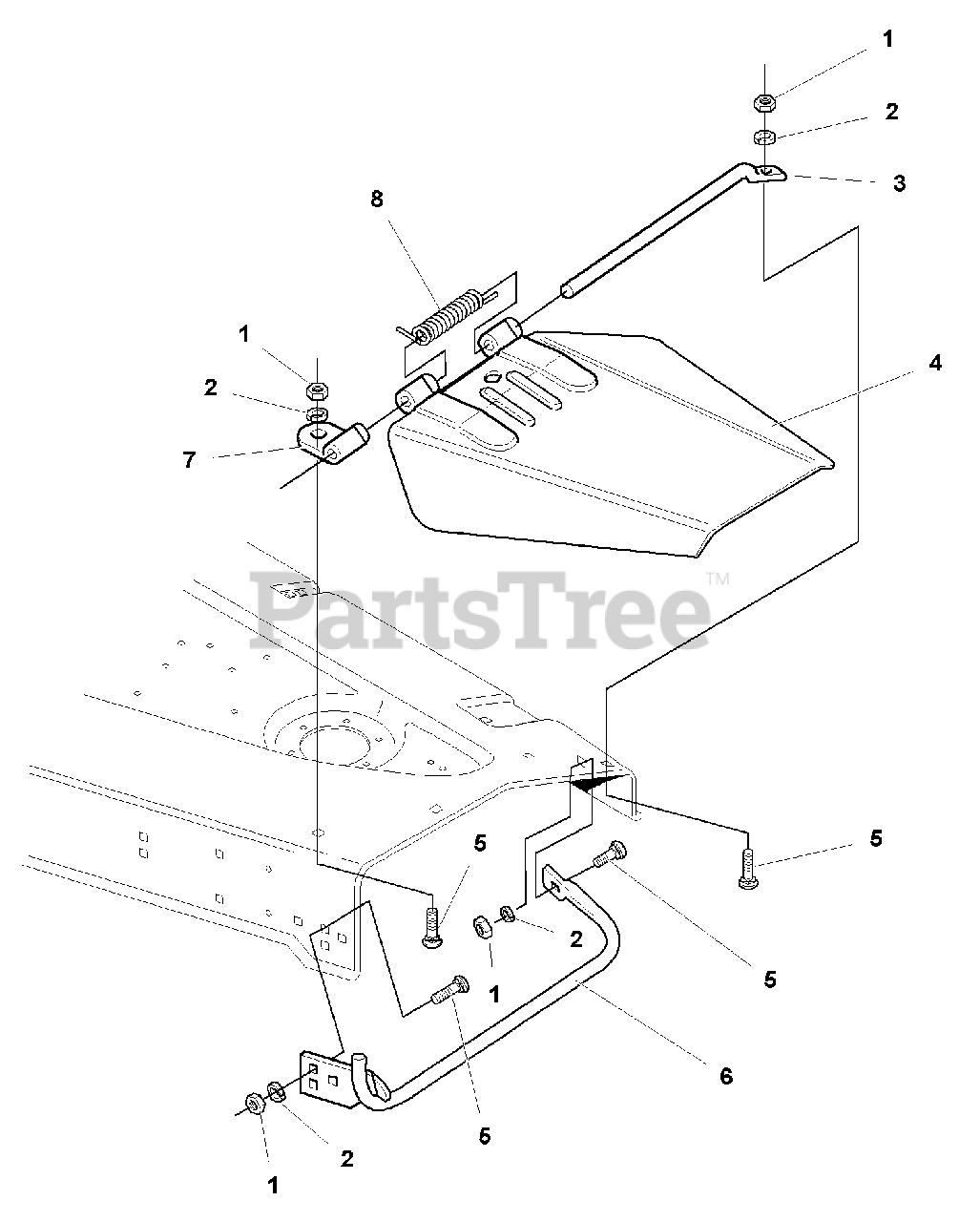

60" Mower Deck - Deflector & Stone Guard Group Parts Diagram

  • Title

1

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1700343SM

ROD, Hinge

$87.99

$

Usually ships in 2-12 days

0

4

Simplicity 1702451CSM

DEFLECTOR ASSEMBLY

$237.99

$

Usually ships in 2-12 days

0

5

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 1700186ASM

STONE GUARD

$109.99

$

Usually ships in 2-12 days

0

7

Simplicity 1673655A

BRACKET, Hinge
(Superseded to 1673655SM)

$

$

Not available

8

Simplicity 1676213SM

SPRING, Torsion

$11.99

$

Usually ships in 2-12 days

0
