1693584 - Simplicity Baron 40" Lawn Tractor, 18hp Transmission Drive & Carrier Group Parts Diagram

Baron 40" Lawn Tractor, 18hp

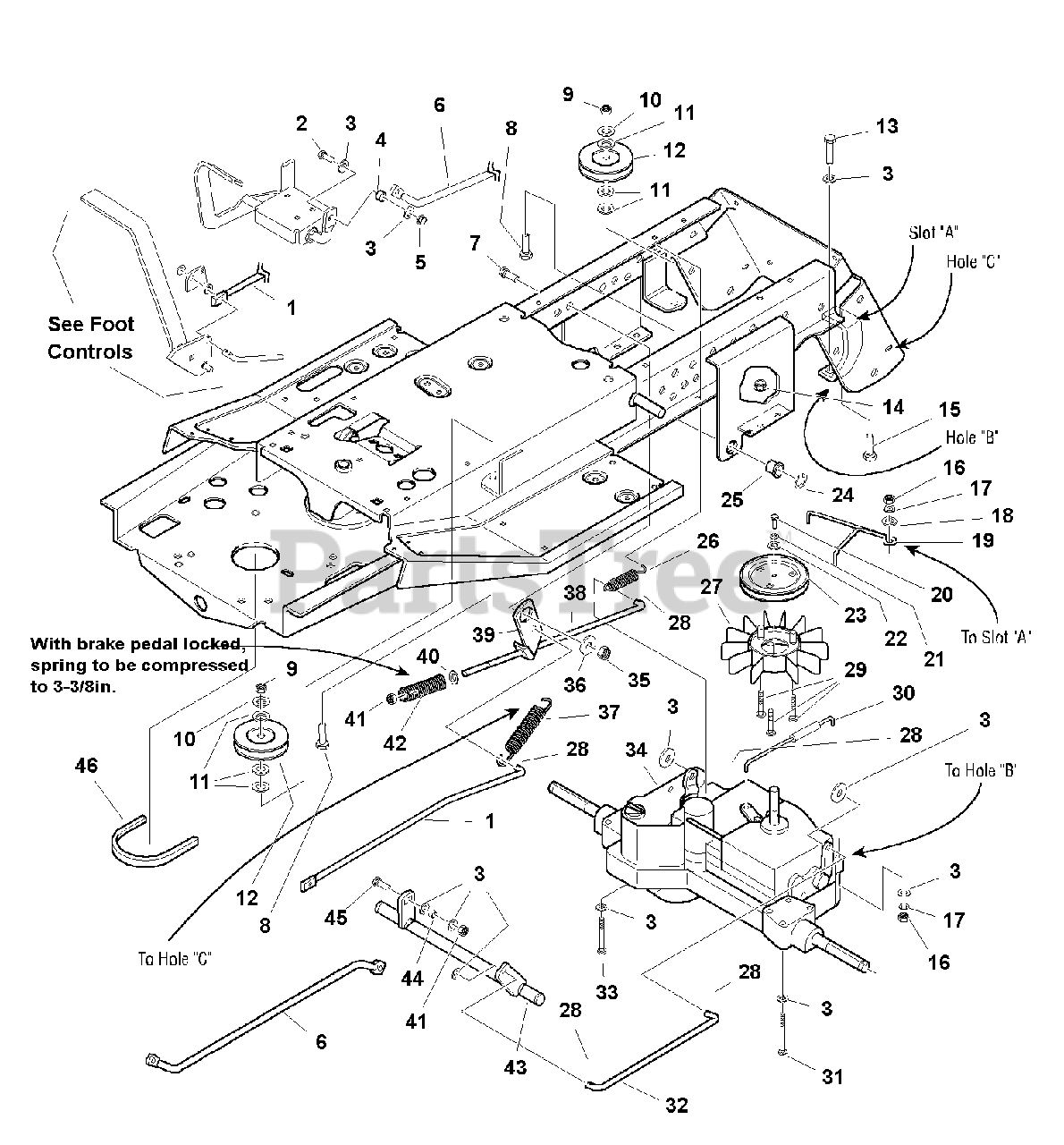

Transmission Drive & Carrier Group Parts Diagram

  • Title

1

Simplicity 1720019SM

ROD, Front Brake

$20.99

$

Usually ships in 2-12 days

0

2

Simplicity 1923325SM

CAPSCREW, Hex Head, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 7

0

3

Simplicity 1919326SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

4

Simplicity 1703900SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

5

Simplicity 1935048SM

NUT, Hex Flange Two-Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 1719268SM

ROD, Pedal

$

$

Not available

7

Simplicity 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 1 left!

0

8

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2

$4.49

$

In Stock, Qty 5

0

9

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, only 2 left!

0

10

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 8

0

11

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 2174561SM

PULLEY

$47.99

$

In Stock, only 3 left!

0

13

Simplicity 1922127SM

CAPSCREW, Hex Head, 5/16-18 x 1-3/4
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 17

0

14

Simplicity 1935048SM

NUT, Hex Flange Two-Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 1960223SM

CARRIAGE BOLT, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, only 2 left!

0

16

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, only 4 left!

0

17

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

18

Simplicity 1919381SM

WASHER
(Superseded to 703298)

$4.49

$

In Stock, Qty 15

0

19

Simplicity 1719993SM

GUIDE, Belt

$12.99

$

Usually ships in 2-12 days

0

20

Simplicity 1960613SM

CAPSCREW, Hex Head, M06-1.00 x 20MM 8.8

$4.99

$

Usually ships in 2-12 days

0

21

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1719902SM

PULLEY & HUB ASSEMBLY

$110.99

$

Usually ships in 2-12 days

0

24

Simplicity 2827794SM

RING-E

$3.49

$

In Stock, only 4 left!

0

25

Simplicity 2176440SM

BUSHING, Nylon

$4.99

$

In Stock, Qty 20+

0

26

Simplicity 2106681SM

SPRING, Extension

$23.99

$

Usually ships in 2-12 days

0

27

Simplicity 1717425SM

FAN

$19.99

$

In Stock, only 1 left!

0

28

Simplicity 1918447SM

PIN, Cotter, 3/32 x 3/4
(Superseded to 703312)

$4.49

$

In Stock, Qty 8

0

29

Simplicity 1930810SM

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1-1/2

$3.49

$

In Stock, only 1 left!

0

30

Simplicity 1719312SM

ROD, Dump Valve

$

$

Not available

31

Simplicity 1960590SM

CAPSCREW, Hex Head, 5/16-18 x 3
(Superseded to 5025011X24SM)

$4.49

$

Usually ships in 2-12 days

0

32

Simplicity 1719269SM

ROD, Transmission

$9.99

$

Usually ships in 2-12 days

0

33

Simplicity 1921719SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

34

Simplicity 1720108SM

TRANSMISSION ASSEMBLY, Tuff Torq K51

$2631.99

$

Usually ships in 2-12 days

0

35

Simplicity 1922694SM

NUT, Hex Lock ESNA Heavy, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

36

Simplicity 1714255SM

SPACER

$6.99

$

In Stock, Qty 16

0

37

Simplicity 1706553SM

SPRING, Extension

$13.99

$

Usually ships in 2-12 days

0

38

Simplicity 1720018SM

ROD, Rear Brake

$16.99

$

Usually ships in 2-12 days

0

39

Simplicity 1720022SM

ARM, Brake Pivot

$8.49

$

Usually ships in 2-12 days

0

40

Simplicity 1924874SM

WASHER
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

41

Simplicity 1919438SM

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

42

Simplicity 1663136SM

SPRING, Compression

$12.99

$

Usually ships in 2-12 days

0

43

Simplicity 1719253SM

SHAFT & ARMS ASSEMBLY

$34.99

$

Usually ships in 2-12 days

0

44

Simplicity 1666697SM

SPACER

$6.49

$

In Stock, only 2 left!

0

45

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18X1
(Superseded to 703800)

$3.99

$

In Stock, Qty 19

0

46

Simplicity 1720036SM

V-BELT

$98.99

$

Usually ships in 2-12 days

0
